2.2.4. Converting cutting dimensions, with bend allowance info
At the last stage of converting a DXF with cutting dimensions, the bend allowance which has
been used during unfolding, needs to be reused in the conversion.
Therefore the conversion of cutting dimensions will always use the bend allowance table of
the control and it will check if for all bends bend allowance information is available.
In case there is just one set of bend allowance parameters available for each bend, this will be
used. The bend allowance pop-up will show the angles from the product with the found bend
allowance. If more entries in the table can be valid, one needs to select the appropriate bend
allowance line. The prefered and calculated radius can be helpfull in this selection.

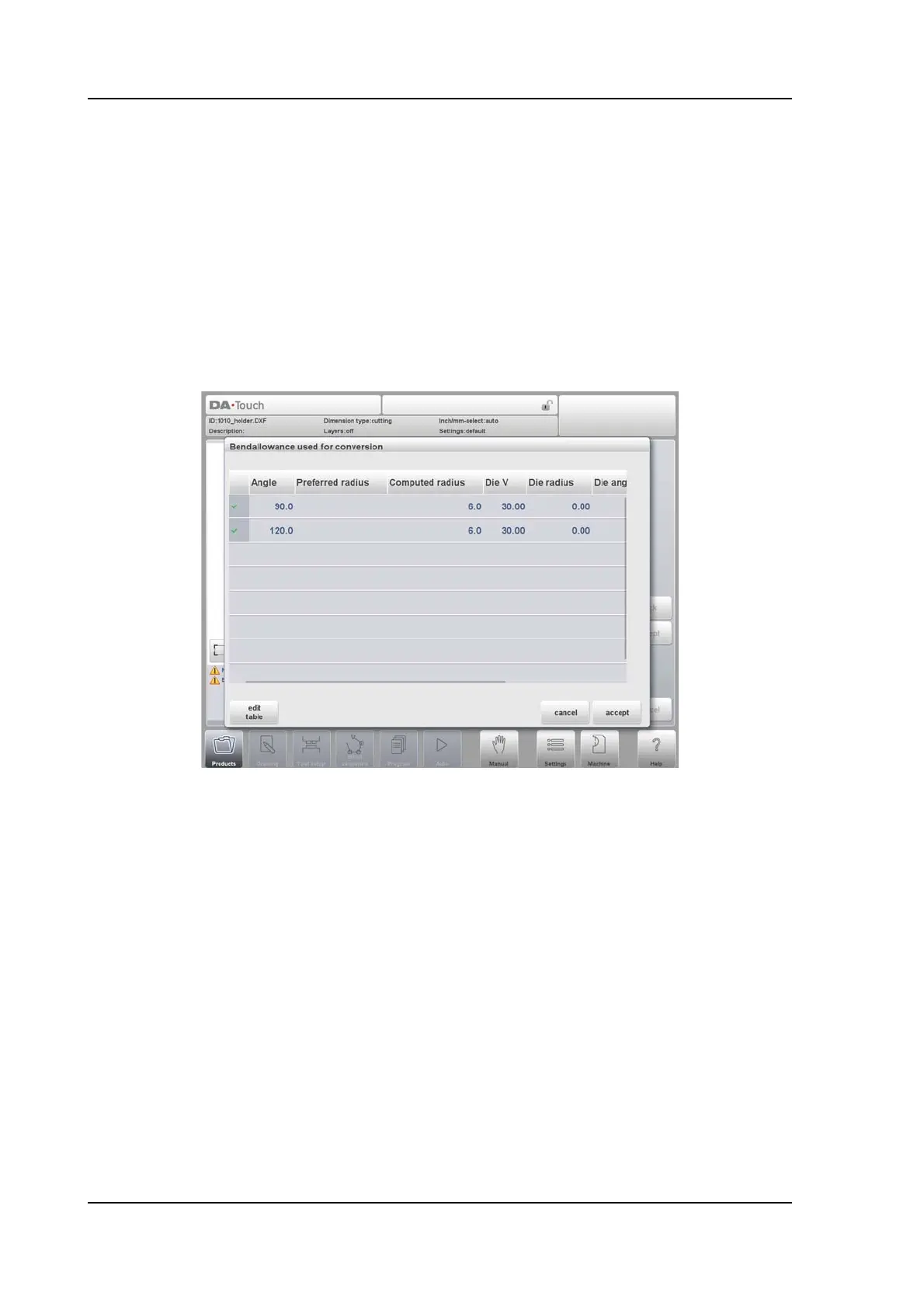

If no bend allowance entry is available, the bend allowance table can be editted directly from
this pop-up by tapping the edit table button. The following window will appear and the bend
allowance information can be added to the table.
