V0913, 10.14

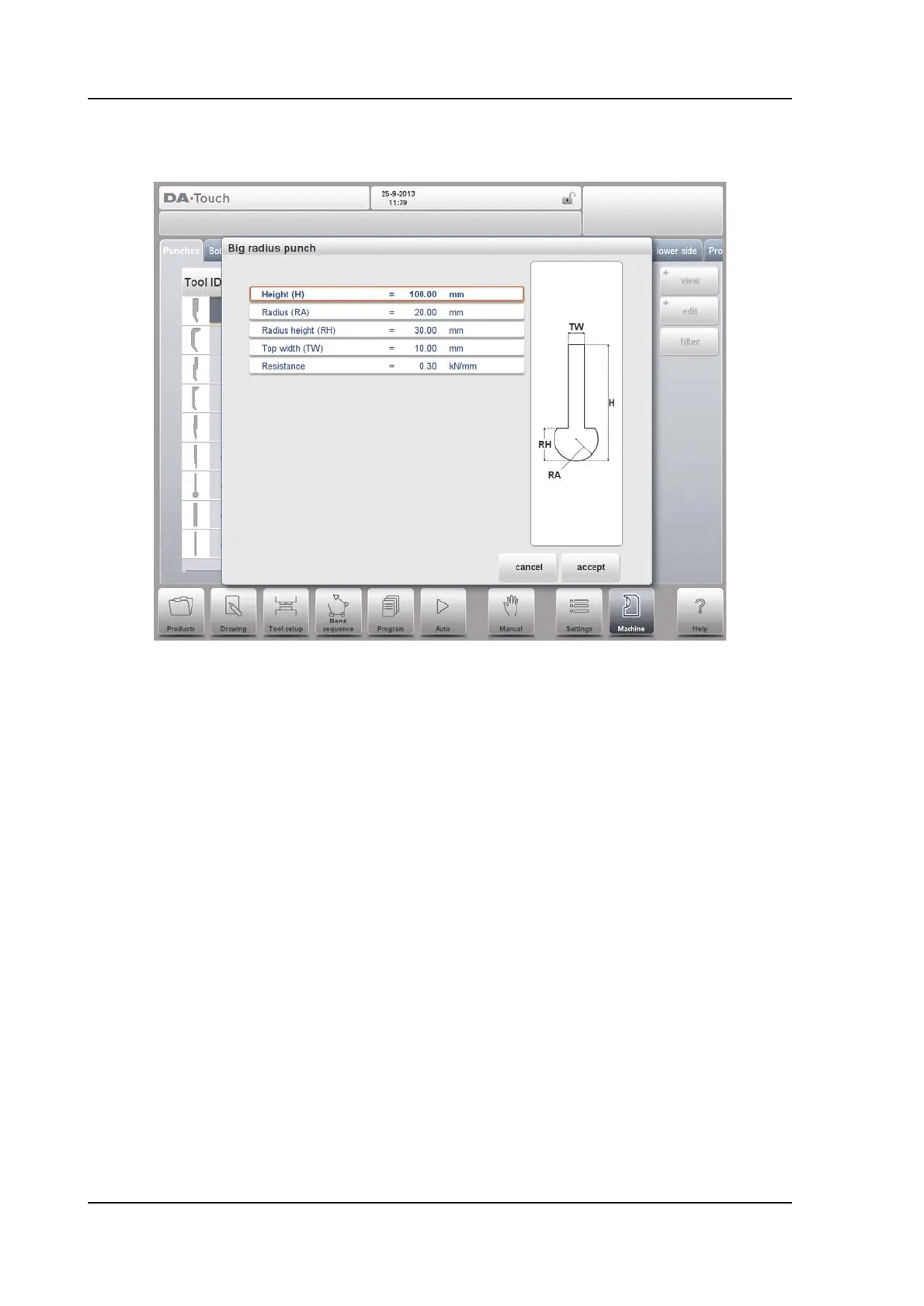

10.2.6. Big radius punch
Height
The total height of the tool. Important: this height value will be used in the bend depth
calculation.
Radius
The radius of the punch tip.
Radius height
The height of the big radius part of the special tool as indicated in the drawing on the
screen for the basic data.
Top width
The width of the tool on the top side of the punch.
Resistance
Maximum allowable force on the tool.
After entering these typical values you can create the tool drawing with the drawing facilities.
Drawing a tool profile is done by entering angle values and line length values. Also the Touch
drawing tools are available as with the product drawing method.
