4.6. Station selection and repositioning

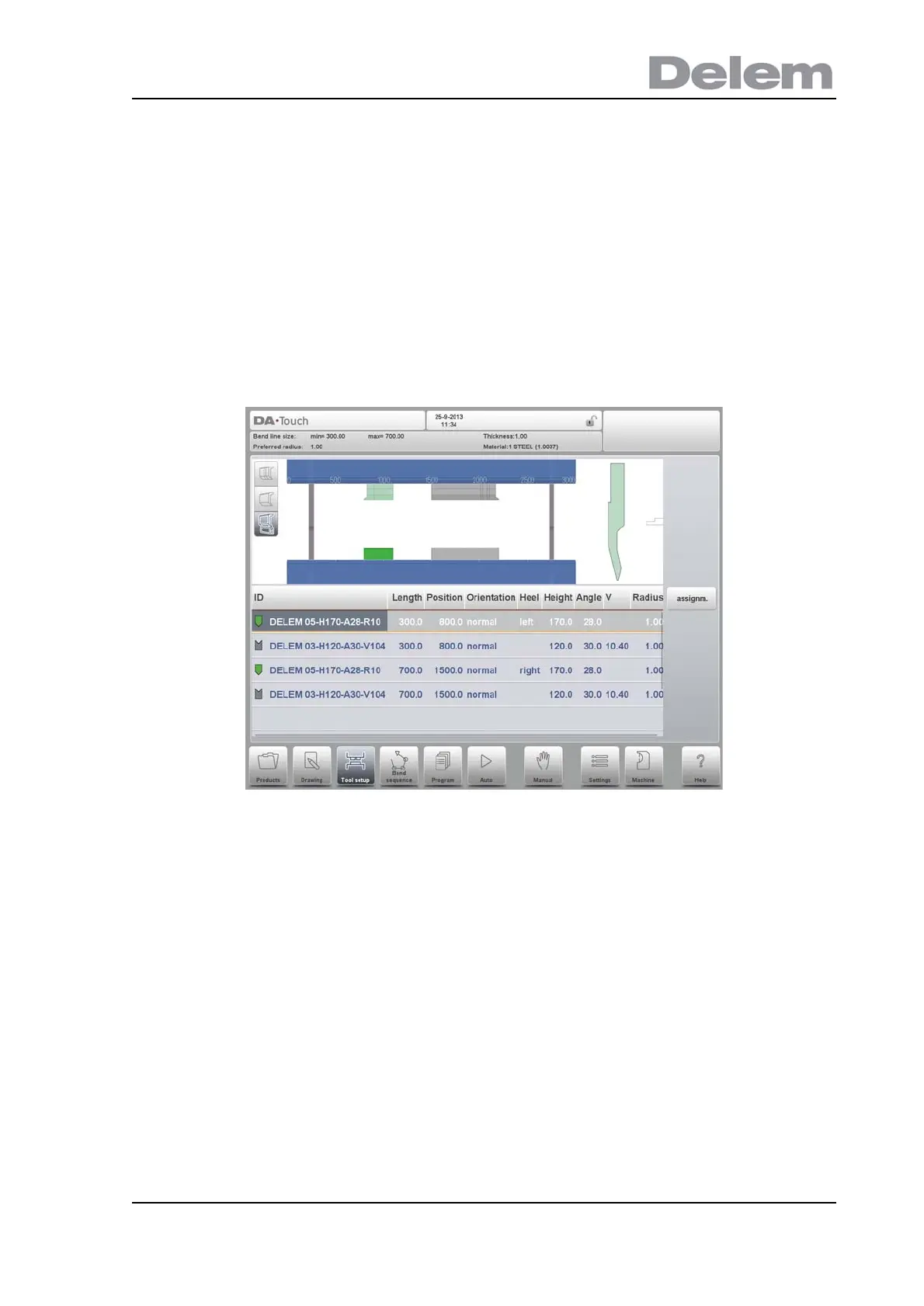

The third Tool Setup view is the Station view. In Station view the complete toolstations are
highlighted when selected, and can be repositioned by programming an alternate position or
dragging to the desired new position in the machine.
A toolstation is automatically defined when there is an overlap from punches with dies. This,
meaning that a toolstation is considered a station when e.g. there is an exact position of punch
and die opposite of each other. When there is a shifted position but still overlap in between
punch and die, this is still considered a tool station. Even when two punches are opposite of a
single die, which can be usefull bending constrained bends, this is considered a toolstation.
These stations can be repositioned without losing their relative positioning.
Station view is not changing anything to the tool details.
