V0913, 9.17

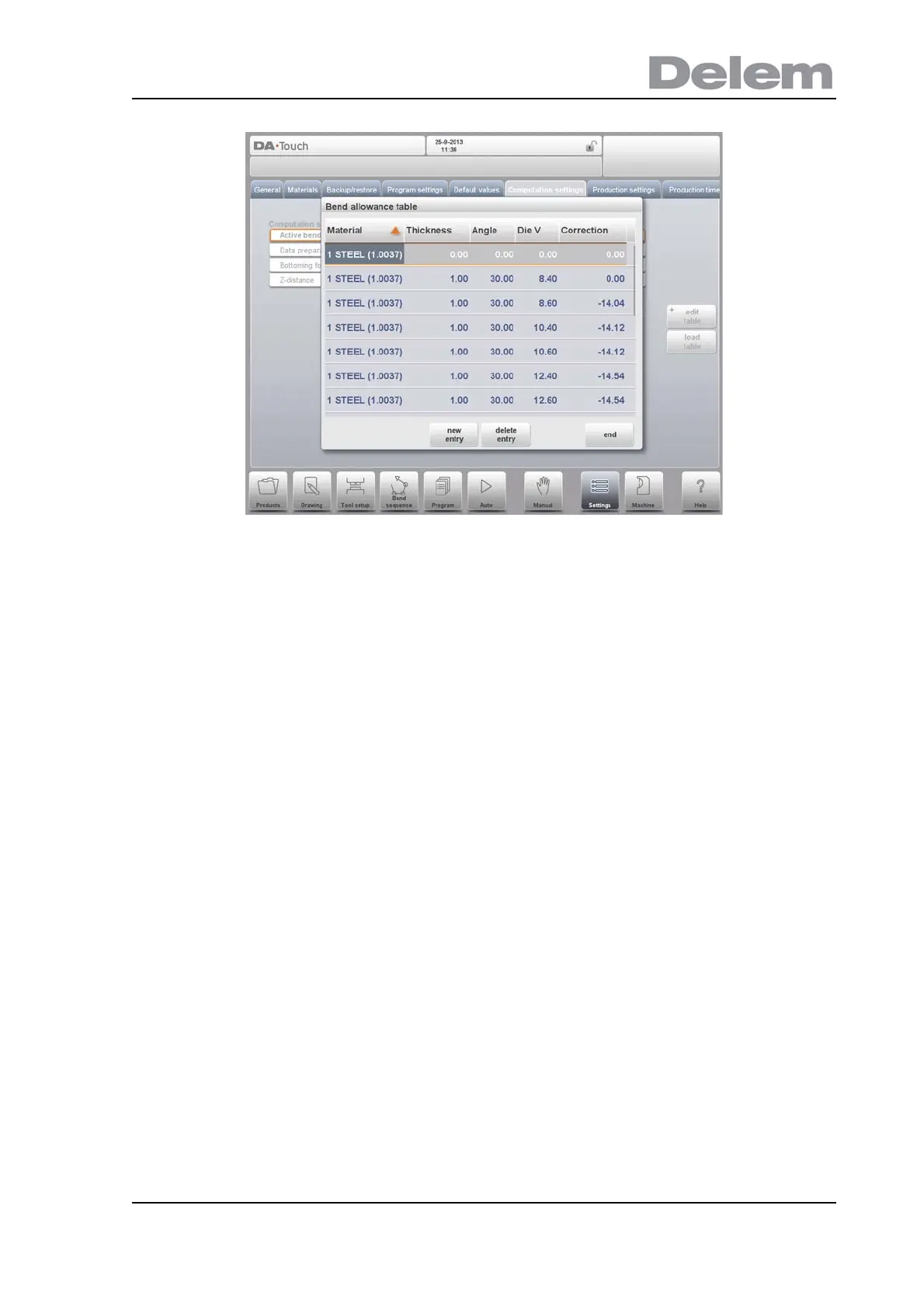

Each line contains a table entry, with several parameters. In this screen, the following
functions are available:
Tab to select the field you wish to change. Then type the new value and press ENTER.
It is not possible to create a table through this menu. Only when a table has been loaded into
the control is it possible to edit its contents.
For more information about bend-allowance tables, we refer to the Delem manual of the bend-
allowance table.
It is also possible to load a existing bend allowance table.
Tab Load Table to navigate to the desired file location.
Bottoming force factor
The force needed for an air bend multiplied by this factor in order to obtain the bottoming
force.
Front gauge hemming offset
The vertical offset of the front gauges for inside hem bends.
Z-distance
The distance from the edge of the finger to the corner of the sheet.
When automatic Z-axes are installed, the position of the fingers is automatically
To Next Page
