V bottom
Herewith the different possible bottoms inside the V opening can be defined:
• Standard is a sharp angle in the bottom of the die.
• Round is a die bottom with a radius to be programmed with the parameter 'Inside
radius'.
• Flat is a flat die bottom with a certain dimension to be set with the parameter
'Bottom width'.
Resistance
Maximum allowable force on the tool.
Drawing orientation of the die on the screen
The right hand side of the tool is the back gauge side. The mid-position of the V-opening will
be placed on the centre line of the press brake shape.

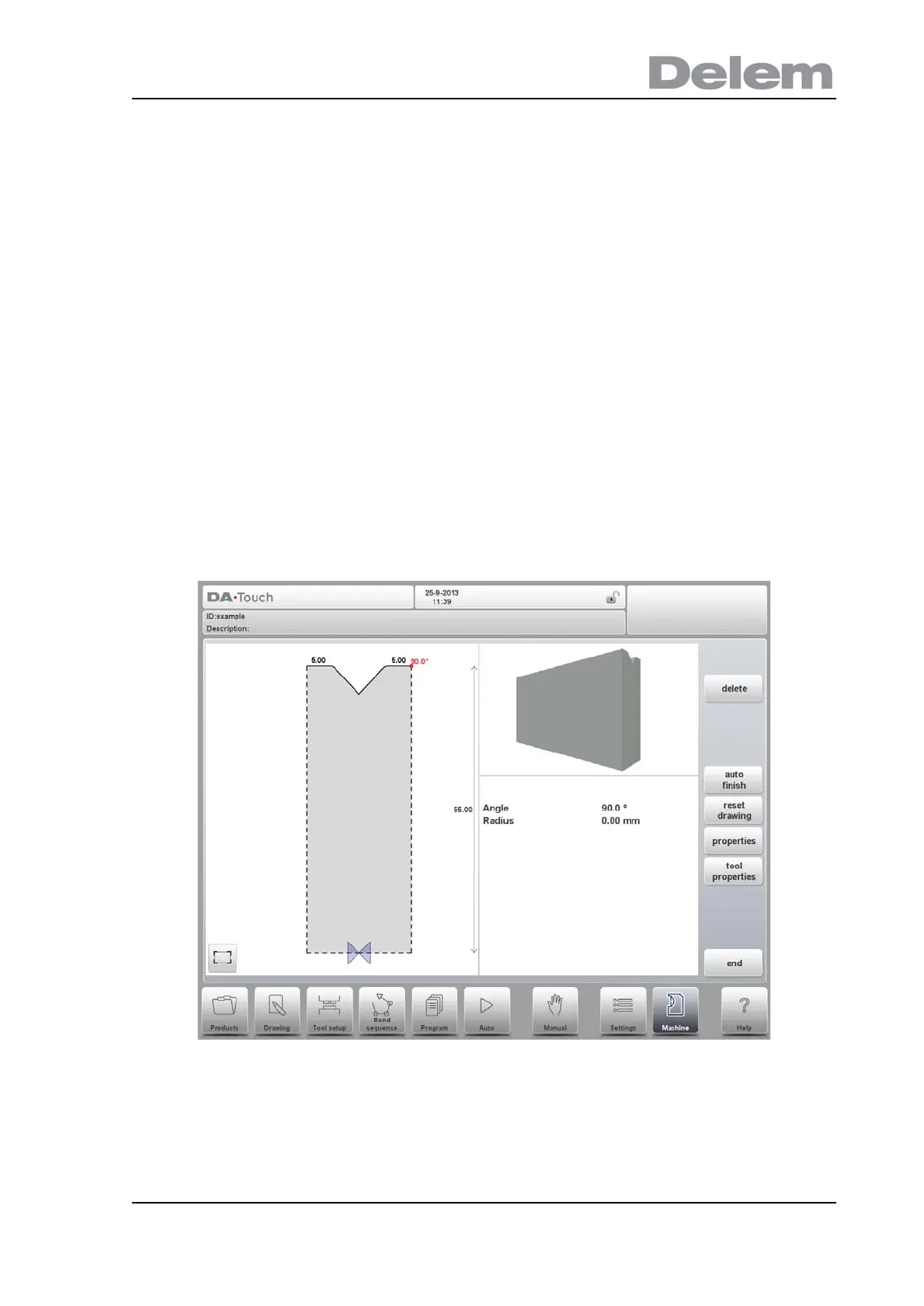

Drawing
After entering these typical values you can create the tool drawing with the drawing facilities.
Drawing a tool profile is done by entering angle values and line length values. Also the Touch
drawing tools are available as with the product drawing method.
Mounting point
Within the drawing one also finds the mounting point of the die. This point, indicated with the
triangle arrow, shows at what point the die will be connected and placed on the table or in an
adapter. For both normal as turned a seperate mounting point is available. Mounting points
can also be found in adapters and in the table. When this function is not enabled, the indicator
is not shown.
