sheet edge and the X-axis position is outside the die safety zone.
A negative value gives a lower back gauge position. This offset is only valid for gauge
position 0.
Gauge positions
The number of possible gauge positions (max. 4). When this parameter is changed, a
new pop-up window with finger geometry appears. There the finger dimensions can be
programmed.

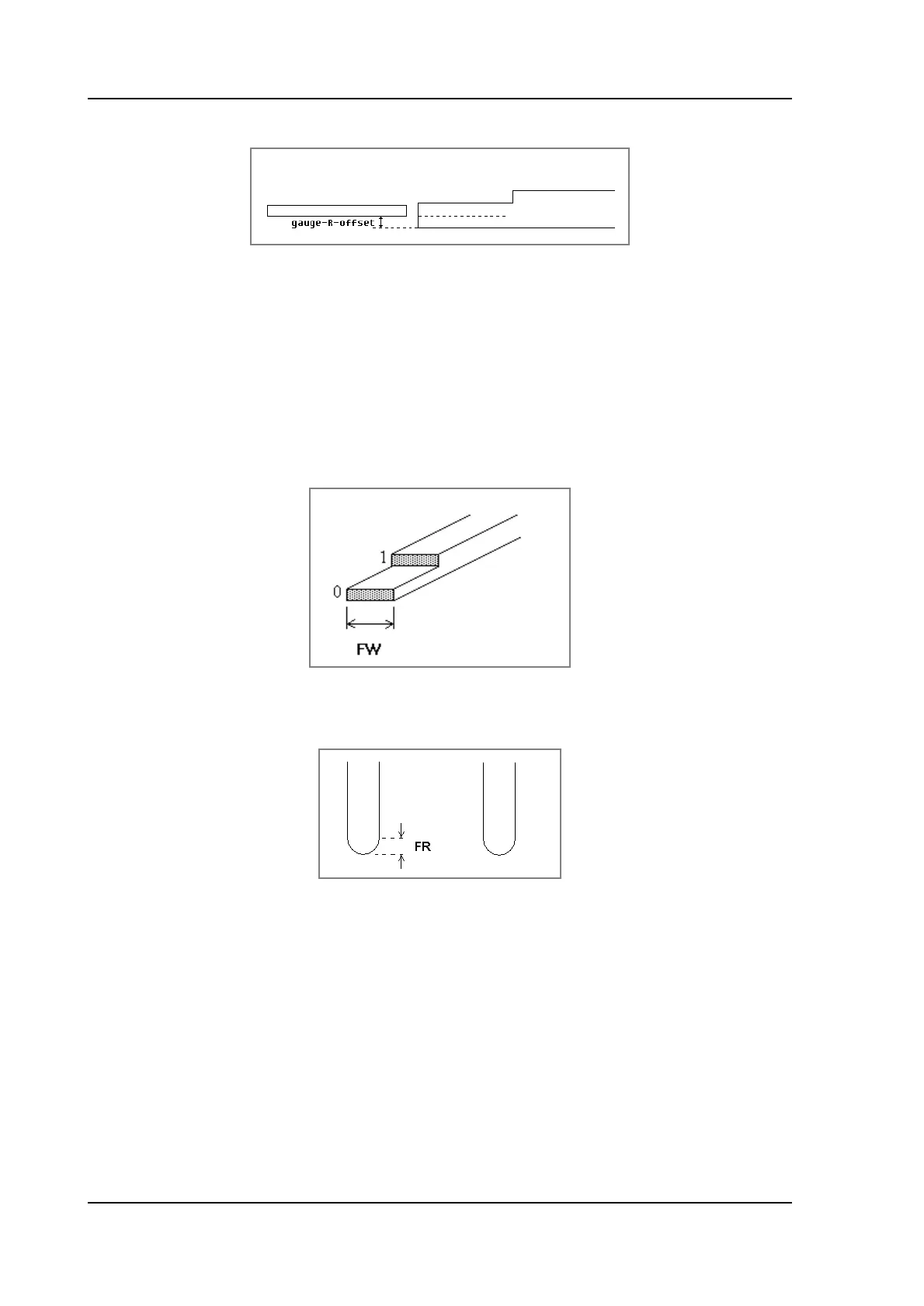

Finger width
The width of the back gauge finger.
Finger radius
The radius of the back gauge finger.
