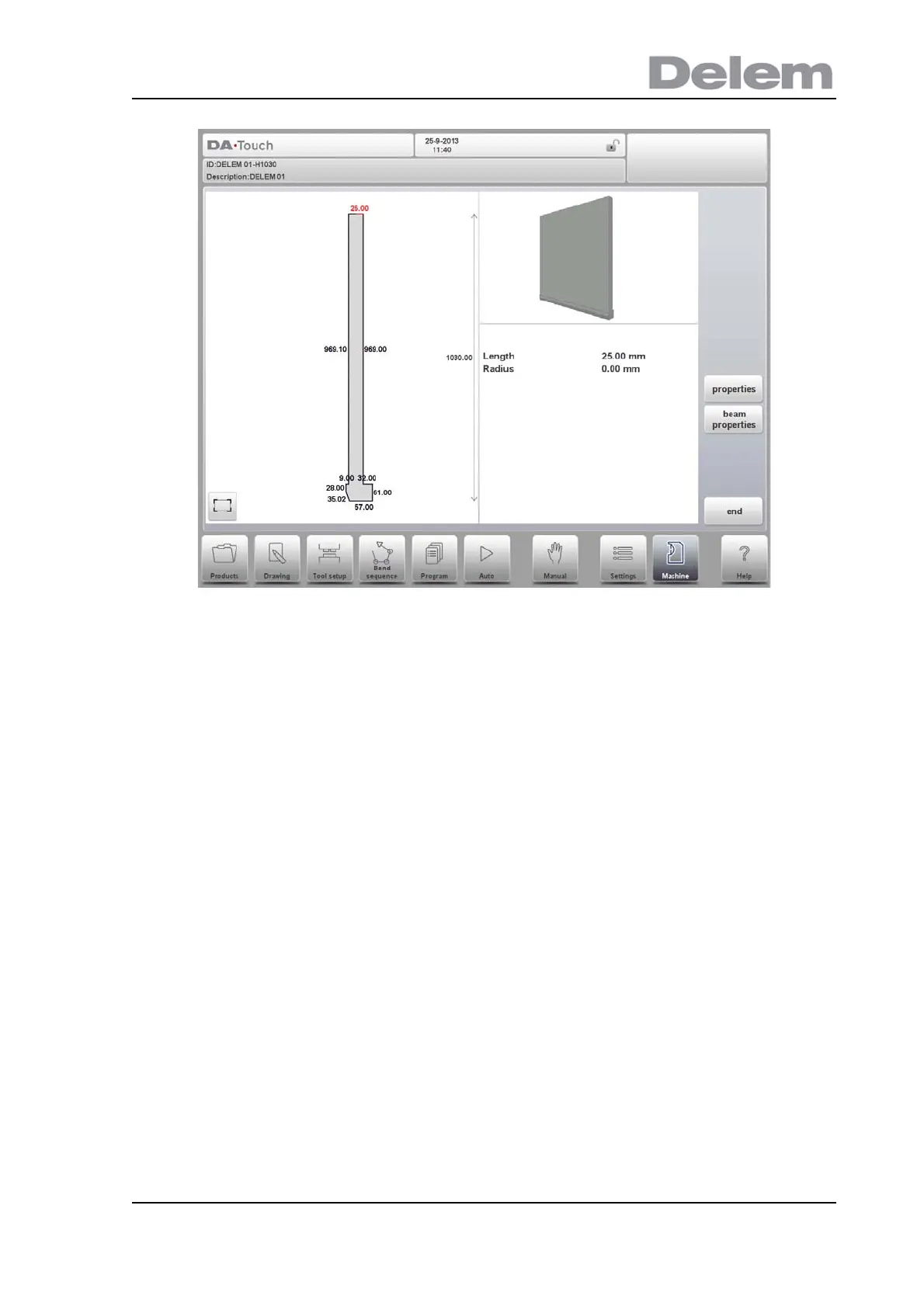

After giving in the base parameters for the specific machine part, the drawing editor appears.
Similar to drawing of tools, also the details of the machine parts can be drawn. Either by
tapping and sketching or by giving in the length of sides and pointing the direction of the next
side.
