For the DXF file to be imported it is advised to create the original drawing as accurate as
possible. Bend lines should be connected to contour lines to obtain an accurate product
drawing. If this is not the case, the DXF Converter can correct small errors.

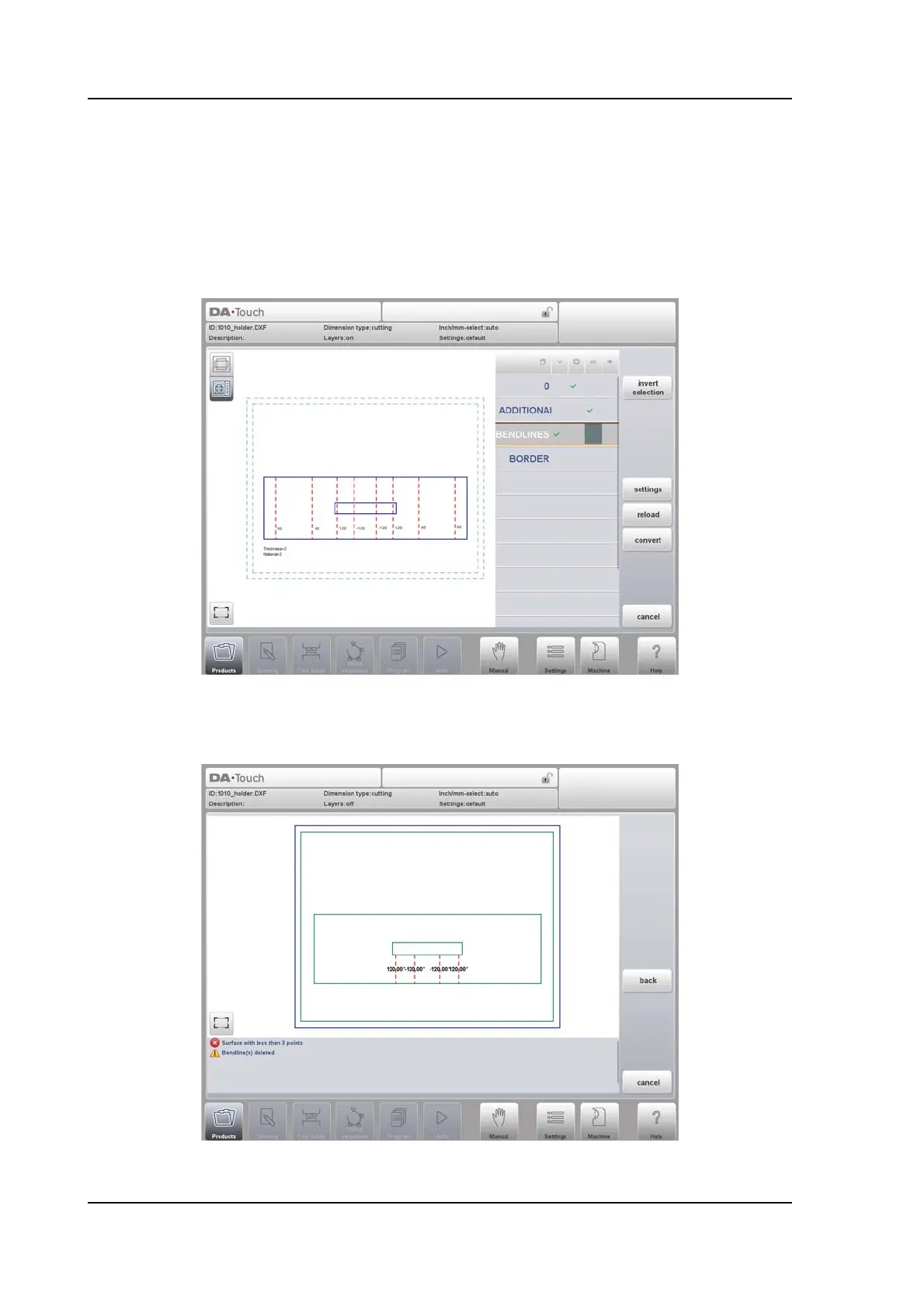

After selecting the DXF file the DXF import function window will open showing the DXF file. If
this is with layer selection on, the drawing will be dashed, since no line is yet assigned to what
it means.
If layer selection is off, the DXF file will be shown with the original line colors as been found in
the file.
