V0913, 5.15

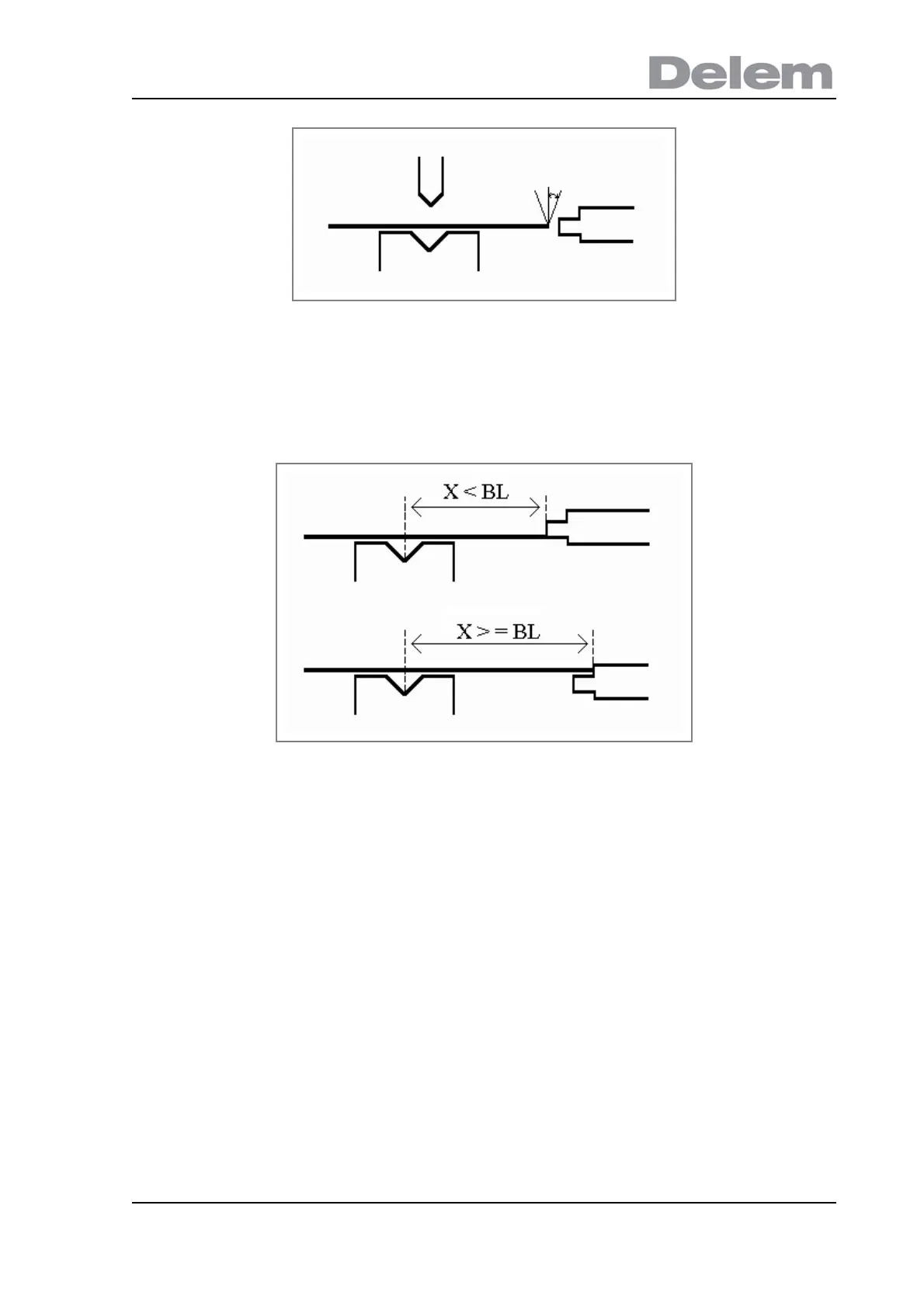

Lay-on backstop limit
This parameter is useful in case the press brake has been equipped with backgauge
fingers on a moving R-axis, having a so-called "lay-on" construction.
When the length of the sheet at the backside of the machine is greater than this limit, the
X-axis and R-axis positions will be corrected automatically so the sheet will rest on the
backgauge finger. This is only possible if an automatic R-axis is enabled.
