To adjust the tensioners movie follow these steps:
a) A Loosen the movie, then loosen the leaflets (Fig. 16.3.3 pos. 1).
b) Making out or retract the arms (Fig. 16.3.3 pos. 2) of adjustment in accordance with
reference marks, so to perform the adjustment of the diagonals of the film.
c) The film must be perfectly tense and uniform.

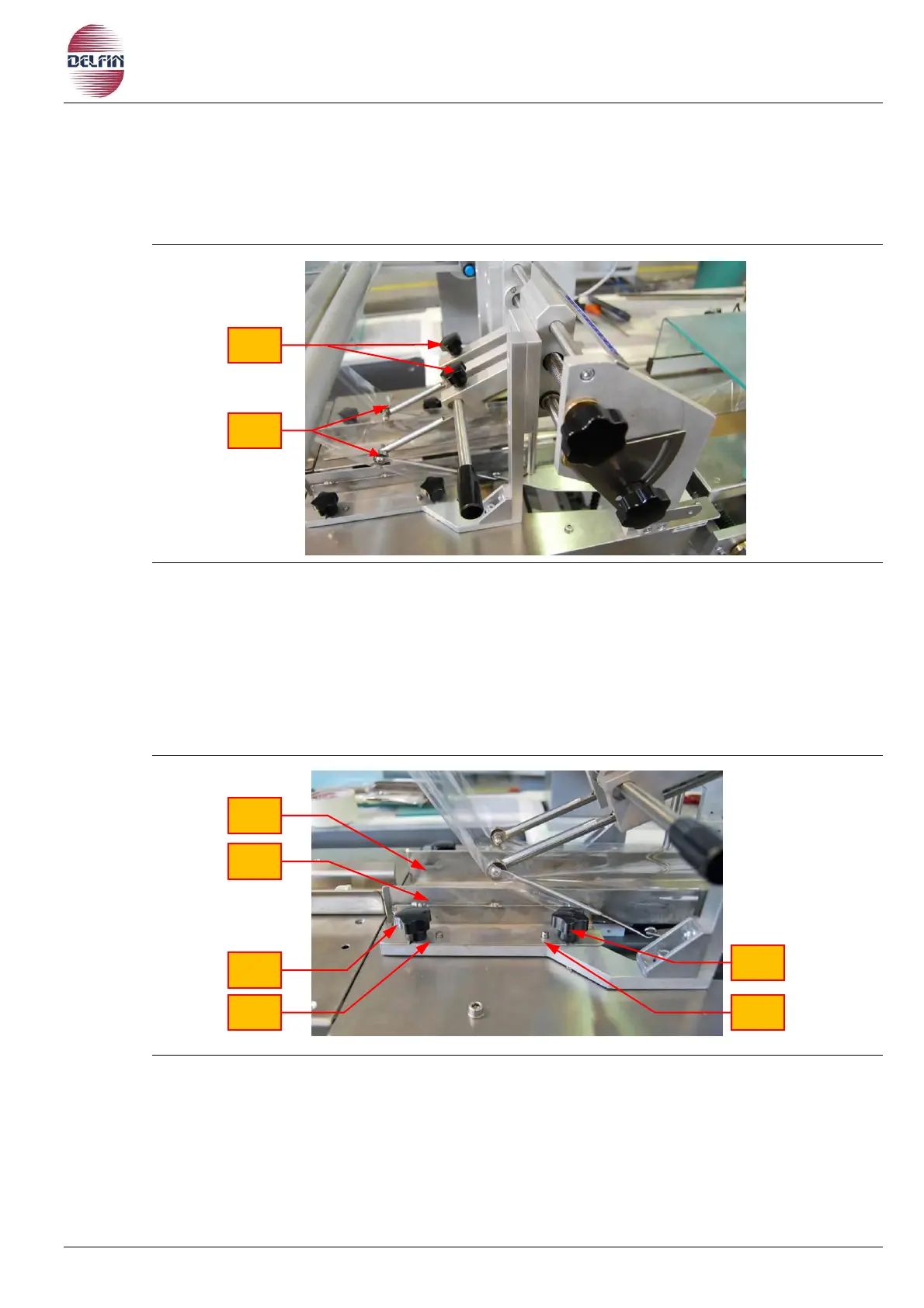

Fig. 16.3.3 Adjustment diagonal view of the film
If the dimensions are very large you have to replace the cores (Fig. 16.3.4 pos.1-2) of the
tunnel trainer, to proceed with the replacement use the following procedure:
a) Completely unscrew the leaflets (Fig. 16.3.4 pos. 3).
b) Extracting the inner core and the outer (Fig. 16.3.4 pos. 1-2) replacing them with those
dedicated to the size of the product.
c) Then insert the new souls paying attention to the dowel pins (Fig. 16.3.4 pos. 4).
d) Screw the leaflets.
Fig. 16.3.4 View replacement of internal cores trainer
Each machine comes with the souls necessary depending on the size of the product
1
2
2
1
3
4
3
4
