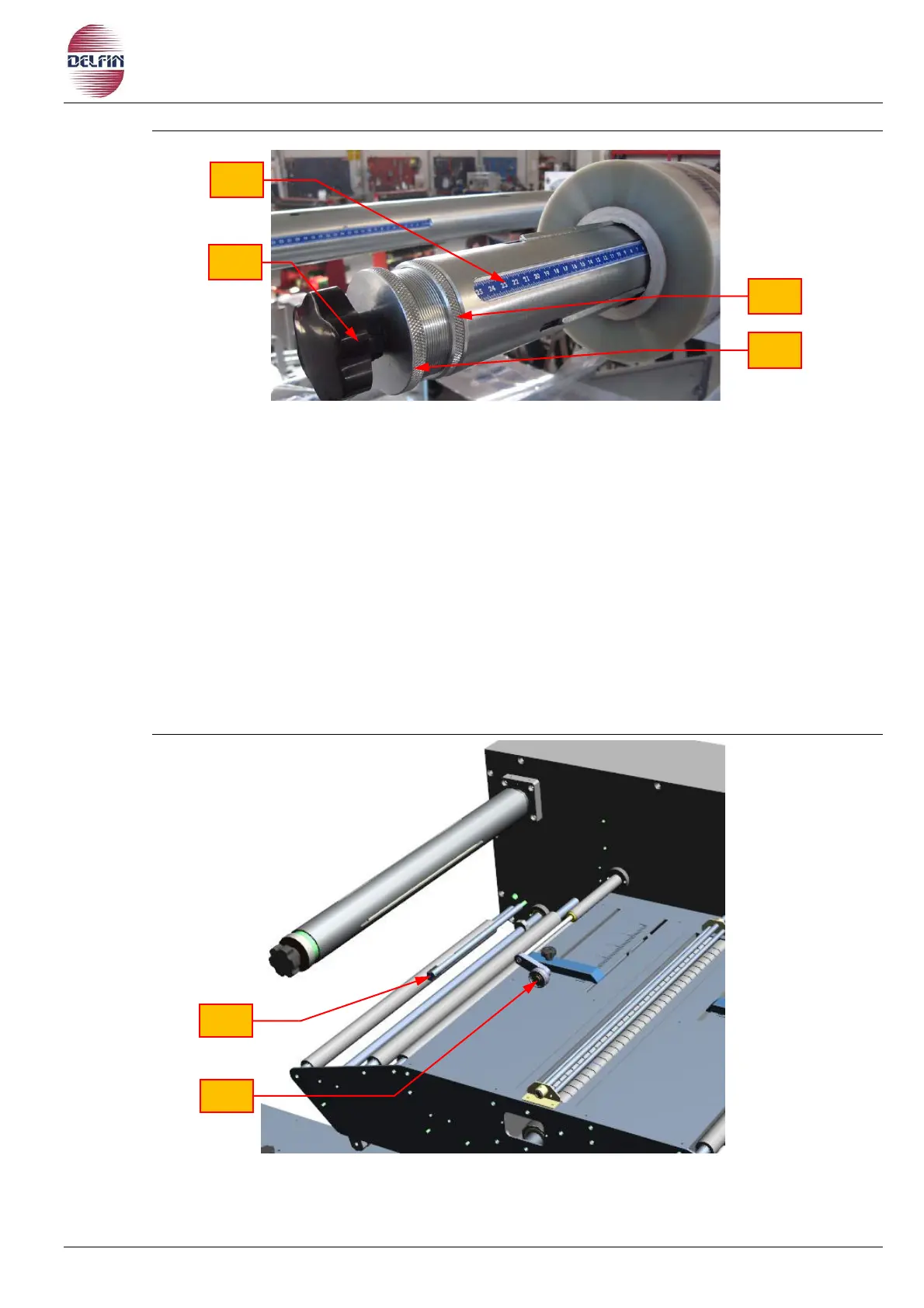

Fig. 6.4 Reel centering device
6.4 Film dragging device
Now introduce the film into the dragging device. This device ensure a regular development
of the film.
To introduce the film follow the instructions:
1) unwind the film through the two rolls of development, as shown in picture 6.9,
2) let the film pass under the film break wheel (pos. 1 fig. 6.5)
Now the film is ready to be introduced into the automatic film junction (pos. 3 fig. 6.2).
There is also a photocell indicating the film ending (pos. 2 fig. 6.5). When the film ends, the
machine stops.
Fig. 6.5 Automatic film junction device
1
2
3
4
1
2
