1) Button position 1 to go to page with list of alarms. If an alarm is active the colour of the
triangle will be yellow
3) Button position 3 to close the block notes page.

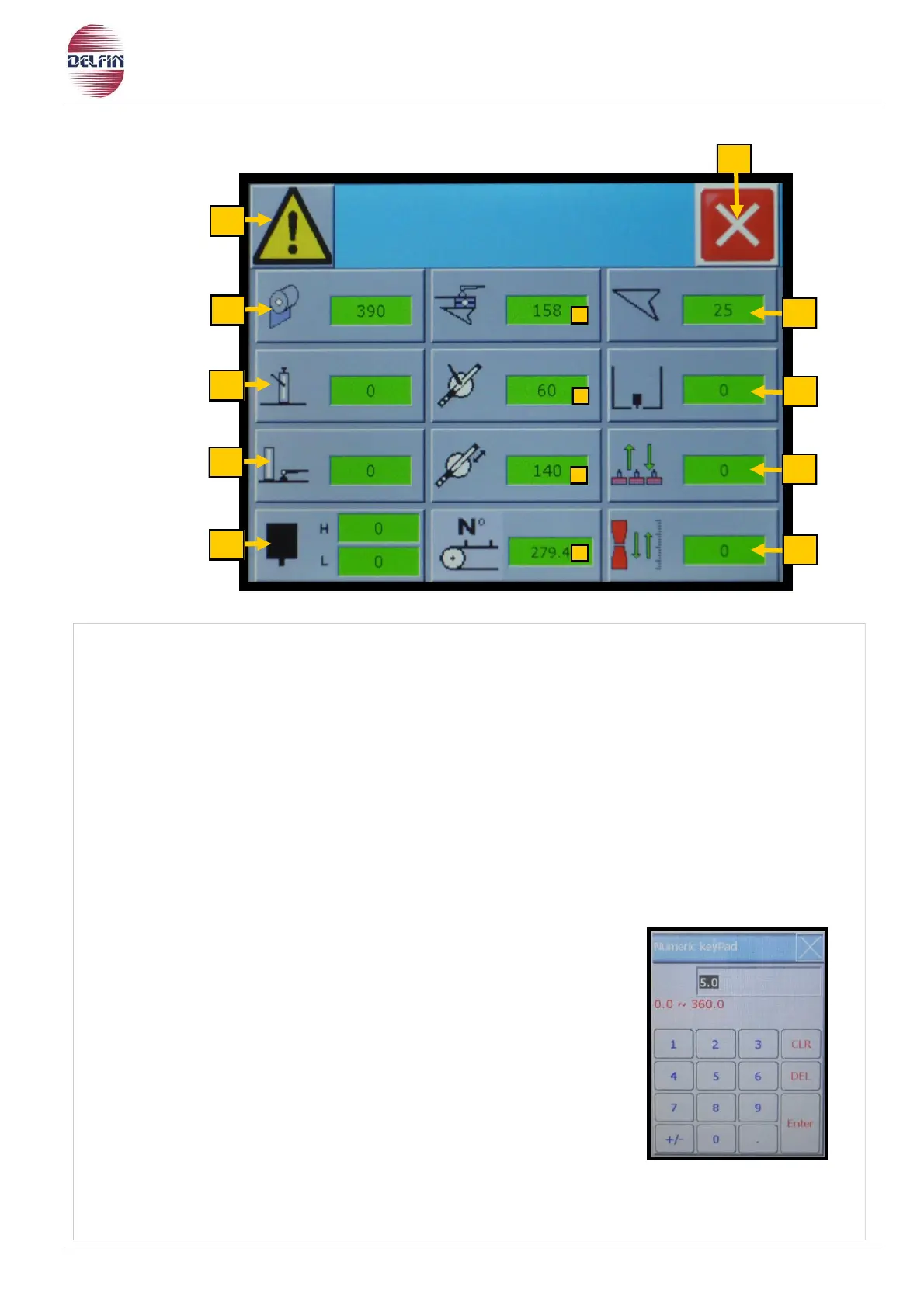

On this page it is possible to write the various data relative to each product to be packed.
4) Film width.
5) Forming box width.
6) Forming box wings size.
7) Forming box height.
8) Last roller angle (Roller just before the forming box wings).
9) Width between product guides.
10) Forwards and backwards position of the forming box.
11) Forward position-film unwinding roller in retreated position
12) Height of the film longitudinal sealing unit
13) Pushers dimensions.
14) Step length (distance between pushers).
15) Position of the transverse sealing jaws
To write the data mentioned above proceed as follows:
 Press on the desired icon.
 A numerical table will appear, digit the desired value.
 To confirm press the Enter button.
