7.2 Description of the components
The machine is equipped with three sets of fin wheels, the first set pulls the film threw the
calander and forming box (Fig. 7.2 pos. 1) the second set is heated and seals the two limbs
of the film together (Fig. 7.2 pos. 2) and the third set (Fig. 7.2 pos. 3) to pull the sealed
film.

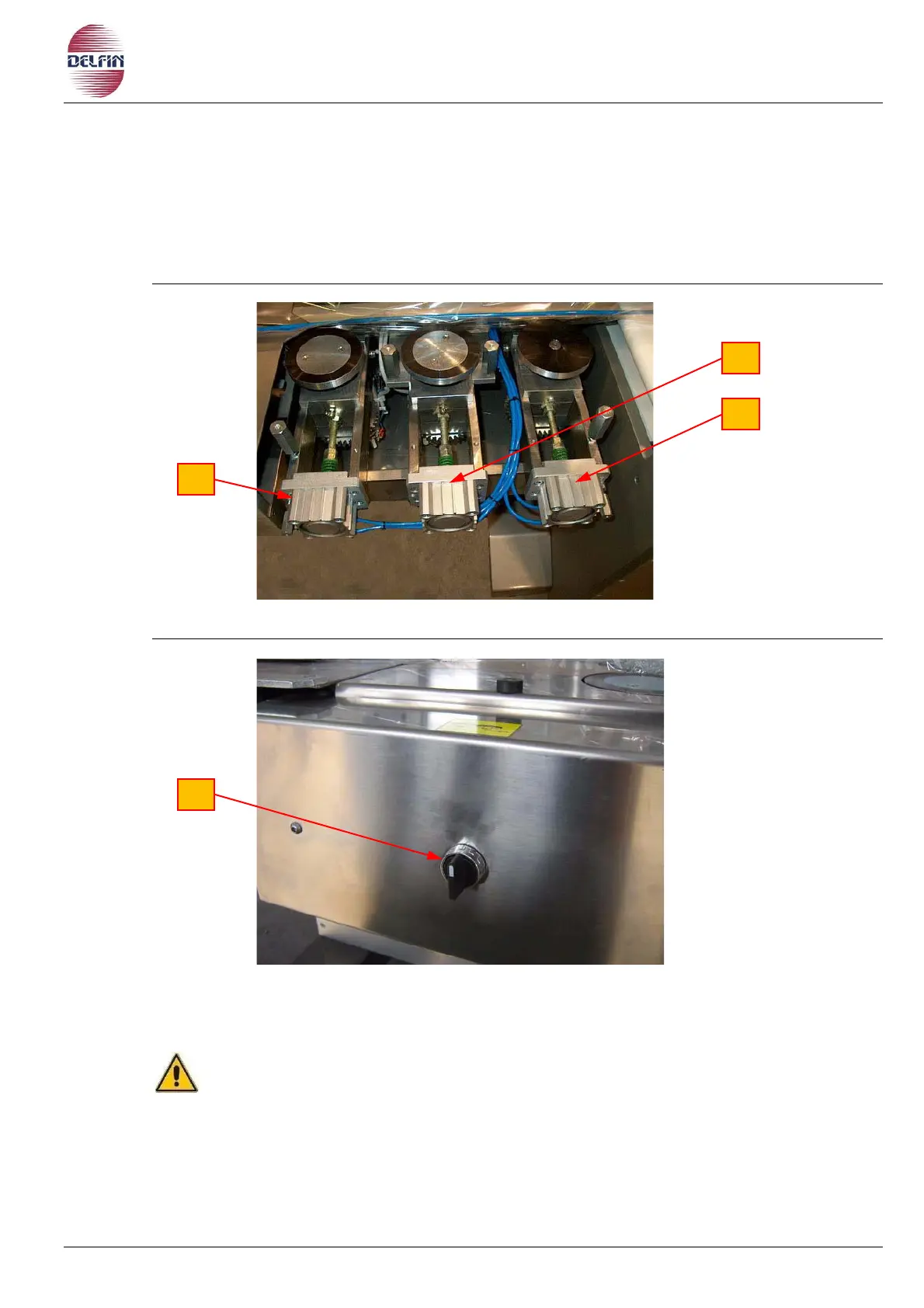

Fig. 7.2 Fin wheel assembly
Fig. 7.3 Pneumatic selector to open pulling set of fin wheels
The film is threaded in between the fin wheels by opening the fin wheels (Pneumatic
selector Fig. 7.3 pos.1).
NOTE The heated fin wheels (center set) opens automatically when the
machines is stopped, when the start button is pressed the fin wheels will
automatically close.
1
1
2
3
