4.2 Electrical connection
Before connecting the electrical and pneumatic supply make sure that the main source
supply is higher than that absorbed by the machine.
Electrical connection
The machine is supplied with a male sprocket fixed to the machine body, and a female
sprocket that is to be connected to the electrical cable.

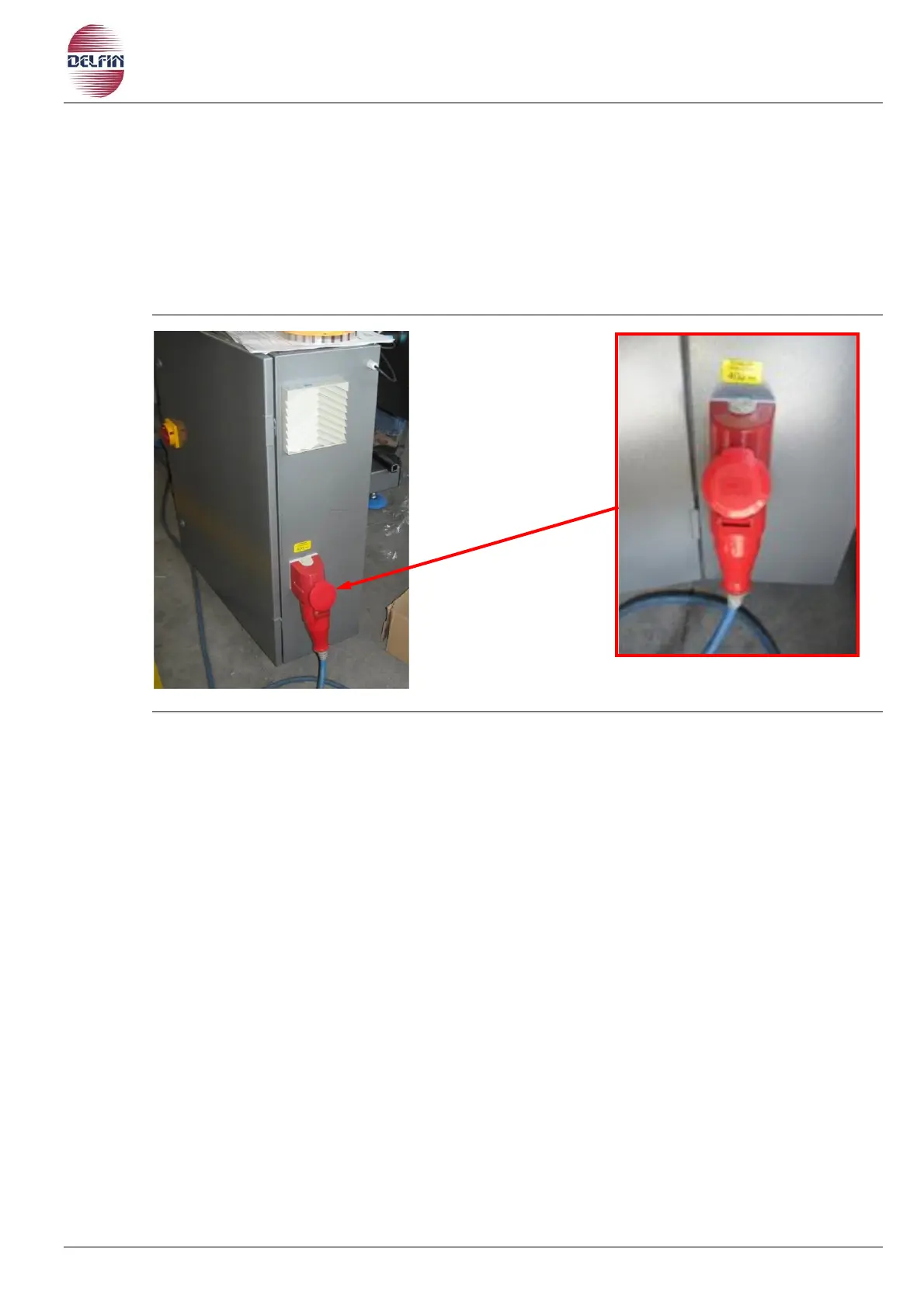

Fig. 4.2.1 Electrical connection
