624 Maintaining Your Printer

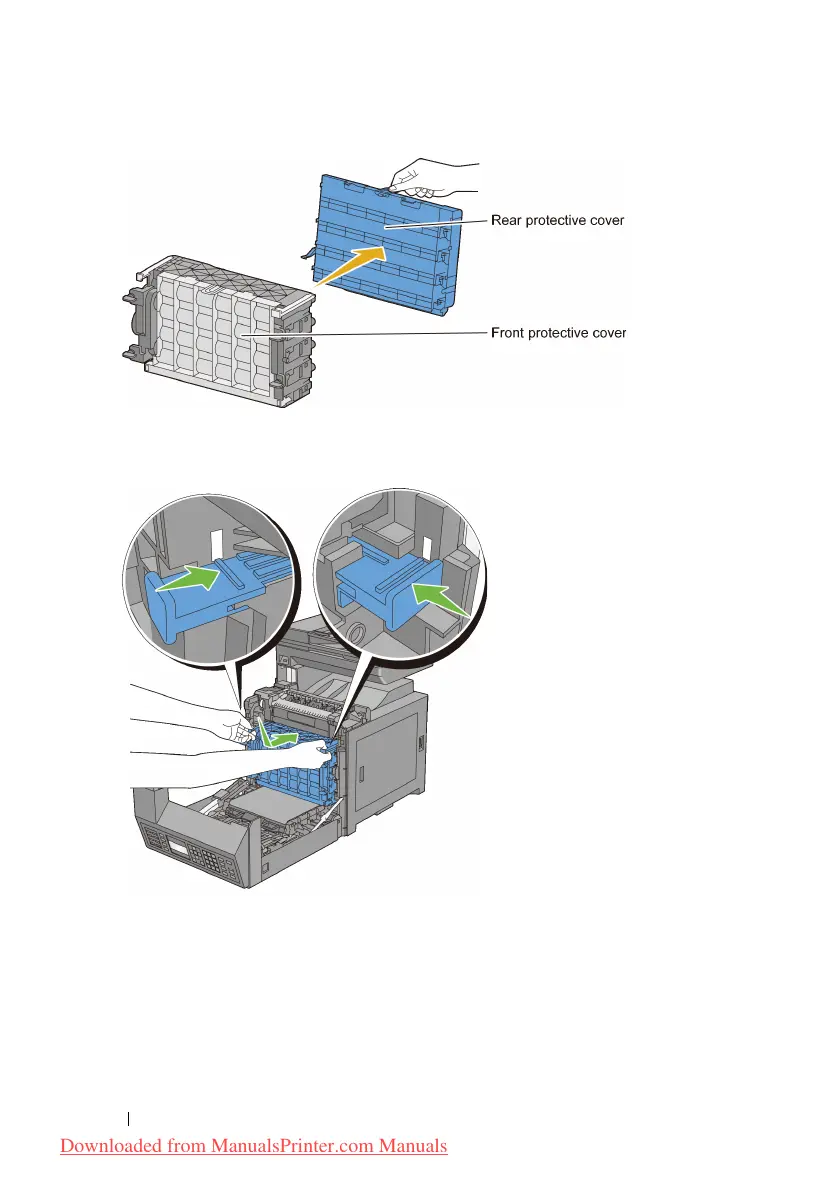

5 Insert the PHD unit until the line on the handle aligns with the white line on
the printer.
6 Turn the four PHD lock levers 90-degrees clockwise to lock the PHD unit.
