Desoutter CVI3 Vision User Manual

Appendix - Fieldbus_01/2016- 78 -

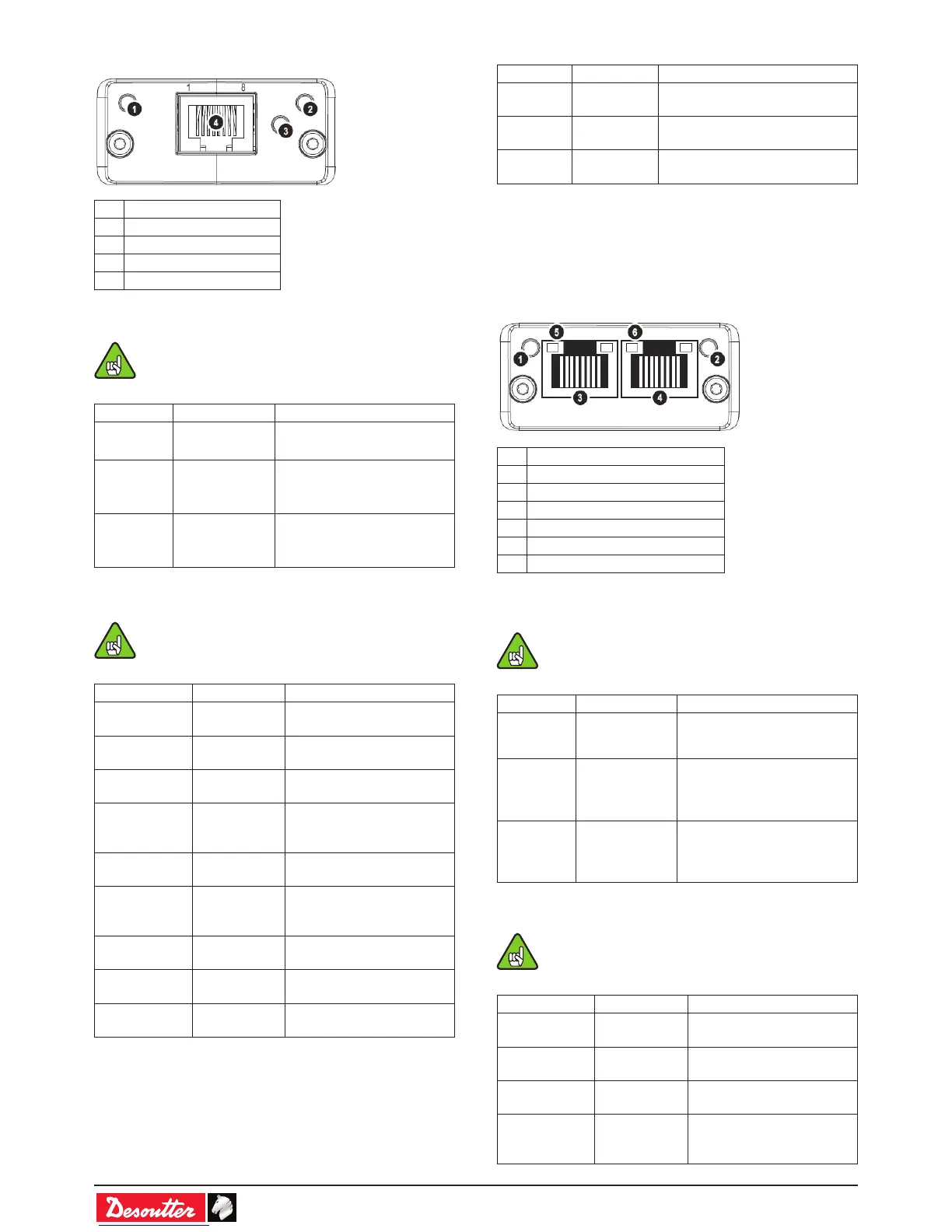

2.4 - Pronet 1 port
# Item
1 Network Status LED
2 Module Status LED
3 Link/Activity LED
4 Ethernet Interface
Network Status LED
A test sequence is performed on this LED during
startup.
LED State Description Comments
Off Ofine - No power
- No connection PLC
Green Online (RUN) - Connection with PLC
established
- PLC in RUN state
Green,
ashing
Online (STOP) - Connection with PLC
established
- PLC in STOP state
Module Status LED
A test sequence is performed on this LED during
startup.
LED State Description Comments
Off Not Initialized No power - or - Module in
‘SETUP’ or ‘NW INIT’ state
Green Normal
Operation
Module has shifted from
the ‘NW INIT’ state
Green, 1 ash Diagnostic
Event(s)
Diagnostic event(s) present
Green, 2
ashes
Blink Used by engineering tools
to identify the node on the
network
Red Exception
Error
Module in state
‘EXCEPTION’
Red, 1 ash Conguration
Error
Expected Identication
differs from Real
Identication
Red, 2 ashes IP Address
Error
IP address not set
Red, 3 ashes Station Name
Error
Station Name not set
Red, 4 ashes Internal Error Module has encountered a
major internal error
LINK/Activity LED
LED State Description Comments
Off No Link No link, no communication
present
Green Link Ethernet link established, no
communication present
Green,
ickering
Activity Ethernet link established,
communication present
Ethernet Interface
The Ethernet interface operates at 100Mbit, full duplex, with
auto-negotiation enabled as default.
2.5 - Pronet 2 ports
# Item
1 Network Status LED
2 Module Status LED
3 Ethernet (port 1)
4 Ethernet (port 2)
5 Link/Activity LED (port 1)
6 Link/Activity LED (port 2)
Network Status LED
A test sequence is performed on this LED during
startup.
LED State Description Comments
Off Ofine - No power
- No connection with PLC
Green Online (RUN) - Connection with PLC
established
- PLC in RUN state
Green,
ashing
Online (STOP) - Connection with PLC
established
- PLC in STOP state
Module Status LED
A test sequence is performed on this LED during
startup.
LED State Description Comments
Off Not Initialized No power - or - Module in
‘SETUP’ or ‘NW INIT’ state
Green Normal
Operation
Module has shifted from
the ‘NW INIT’ state
Green, 1 ash Diagnostic
Event(s)
Diagnostic event(s) present
Green, 2
ashes
Blink Used by engineering tools
to identify the node on the
network
