Digi Connect IT 4 User Manual

Serial port Configure Remote Access mode
Digi Connect IT® 4 User Guide
214
7. Click to expand Data Framing.
a. Click Enable to enable the data framing feature.
b. For Maximum Frame Count, enter the maximum size of the packet. The default is 1024.
c. For Idle Time, enter the length of time the device should wait before sending the packet.
d. For End Pattern, enter the end pattern. The packet is sent when this pattern is received
from the serial port.
e. Click Strip End Pattern if you want to remove the end pattern from the packet before it is
sent.

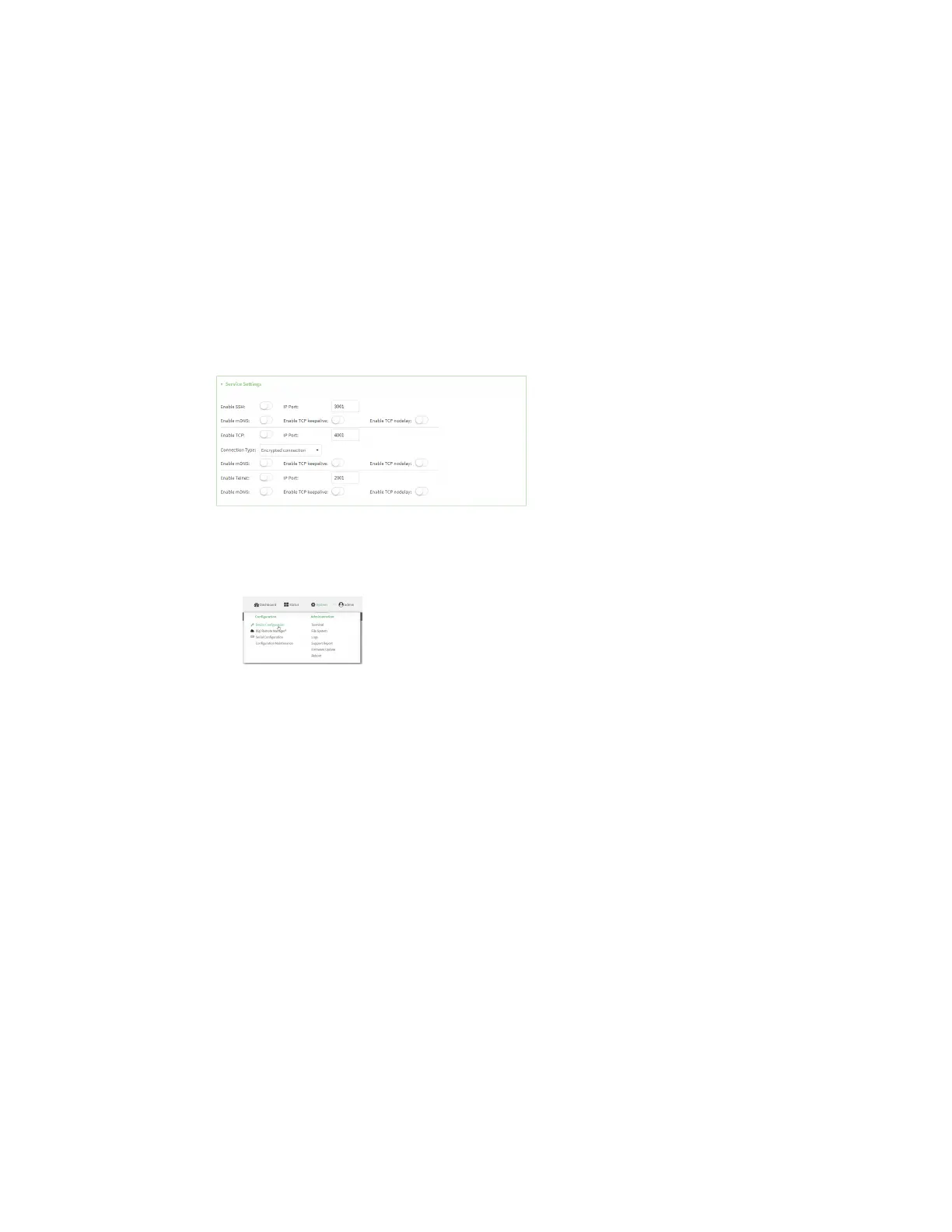

8. Expand Service Settings.
All service settings are disabled by default. Click available options to toggle them to enabled,
and set the IP ports as appropriate.
For each type of service, you can also configure the access control.
To do this, you need to go to Device Configuration:
a. On the menu, click System. Under Configuration, click Device Configuration.
The Configuration window is displayed.
b. Access the configuration for the appropriate type of service:
i. Click to expand Serial.
ii. Click to expand the appropriate serial port.
iii. Click to expand the appropriate type of service.
iv. Click to expand Access Control List.
For example, to set the Access Control List for the SSH connection for serial port 1, click to
expand Serial > Port 1 > SSHconnection > Access Control List:
