Screen Requirements
Fitting the image to the DMD™

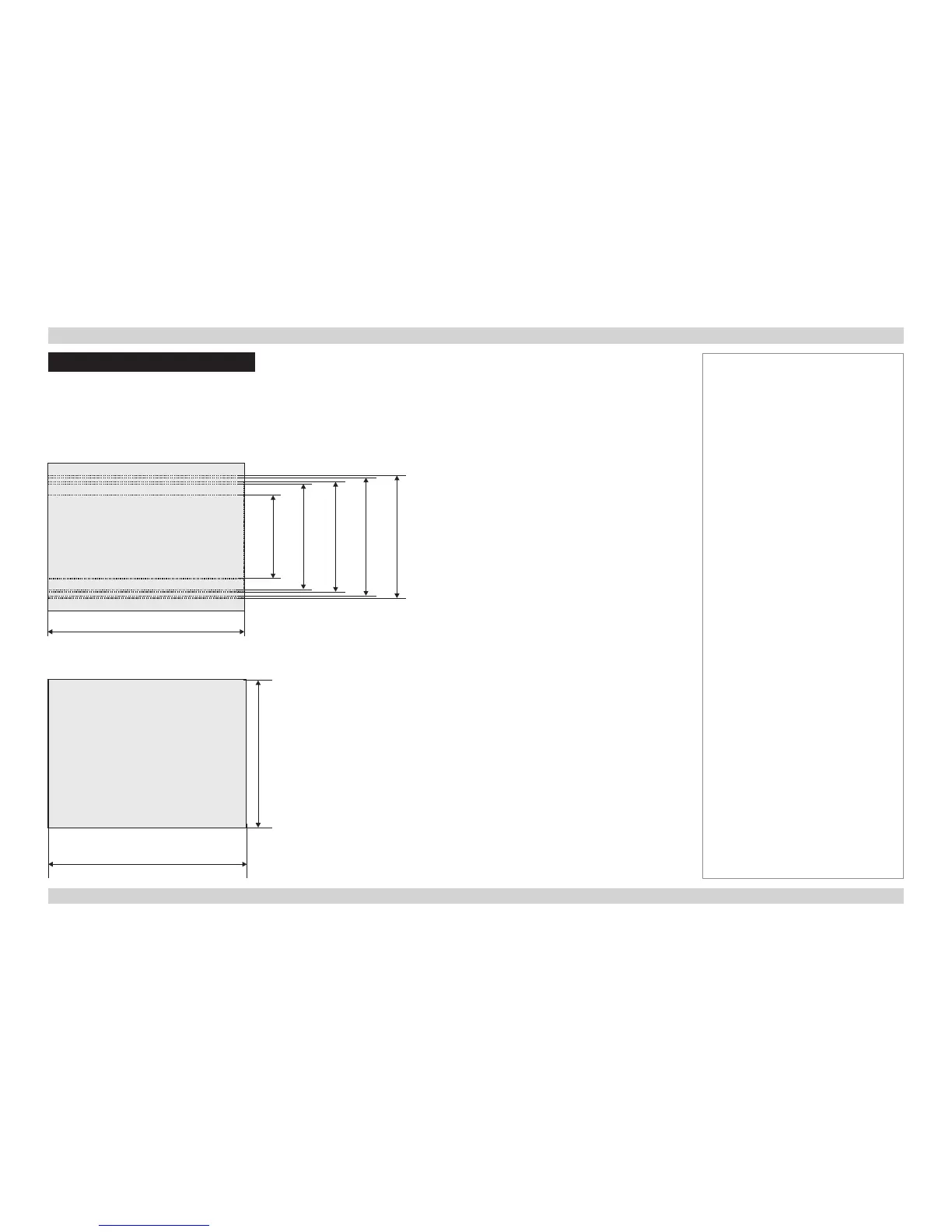

If the source image supplied to the projector is smaller than the DMD™ resolution, the image will not ll the DMD™. The following examples
show how a number of common formats may be displayed, depending on your DMD™ resolution.
SX+ images displayed full width
SX+ images displayed full height
Notes
2.35:1(Scope)
= 596 pixels
1.85:1
= 757 pixels
16:9 = 1.78:1
= 787 pixels
1.66:1 (Vista)
= 843 pixels
1.6:1
= 875 pixels
full width = 1400 pixels
full height = 1050 pixels
4:3 = 1.33:1 (native) = 1400 pixels
