Digital Projection Titan Quad / 930 / 800 Series PROJECTOR OVERVIEW Installation and Quick-Start Guide
7
Rev H October 2013

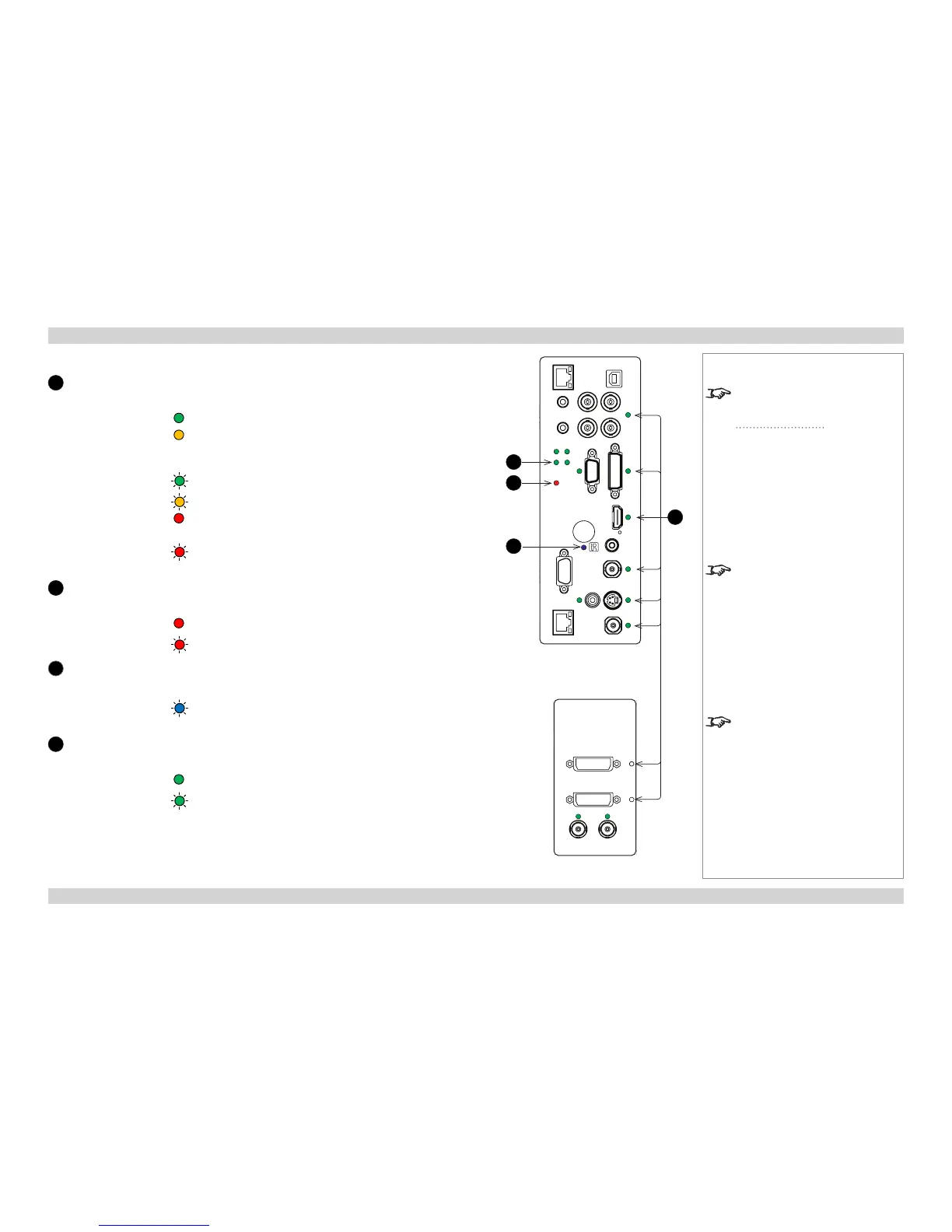

Connection panel indicators
1
Lamps 1-4 indicators
Behavior Meaning
On (green) The lamp is switched on (100%).
On (amber) The lamp is running on less than full capacity:
80-99% for Titan Quad / Titan 800
86-99% for Titan Super Quad / Titan Quad 2000 / Titan 930
Flashing (green) The lamp is warming up.
Flashing (amber) The lamp is cooling down.
On (red) Projector in standby: Lamp Timer Error (call service)
Projector on: Ballast Comms Error (call service)
Flashing (red) Projector in standby: Lamp Error on previous operation
Projector on: Lamp / Interlock Error
2
Error indicator
Behavior Meaning
On (red) Voltage Error
Flashing (red) Fan / System Error
3
Infrared indicator
Behavior Meaning
Flashing (blue) The projector is receiving input from the remote control or
keypad.
4
Input indicators
Behavior Meaning
On (green) Input selected. Signal detected and in range.
Flashing (green) Input selected, but signal is not detected or out of range.
Notes
For more information about
the connection panels, see the
Connection Guide.
A red LED always indicates an error.
If you receive an error indication,
restart the projector. If the problem
persists, contact your dealer.
The side connection panel is
available on 3D models only.
Side connection panel
1
2
3
4
Rear connection panel
