Digital Projection Titan 930 - Input 2: HDMI; Output: SPDIF

Digital Projection Titan Quad / 800 / 930 Series APPENDIX E: WIRING DETAILS Reference Guide
183
Rev H October 2013
Input 2: HDMI
19 way type A connector
1 TMDS Data 2+
2 TMDS Data 2 Shield
3 TMDS Data 2-
4 TMDS Data 1+
5 TMDS Data 1 Shield
6 TMDS Data 1-
7 TMDS Data 0+
8 TMDS Data 0 Shield
9 TMDS Data 0-
10 TMDS Clock+
11 TMDS Clock Shield
12 TMDS Clock-
13 CEC
14 not connected
15 SCL (DDC Clock)
16 SCA (DDC Data)
17 DDC/CEC Ground
18 +5 V Power
19 Hot Plug Detect
Output: SPDIF
RCA Phono
Digital audio output from the HDMI input stream.

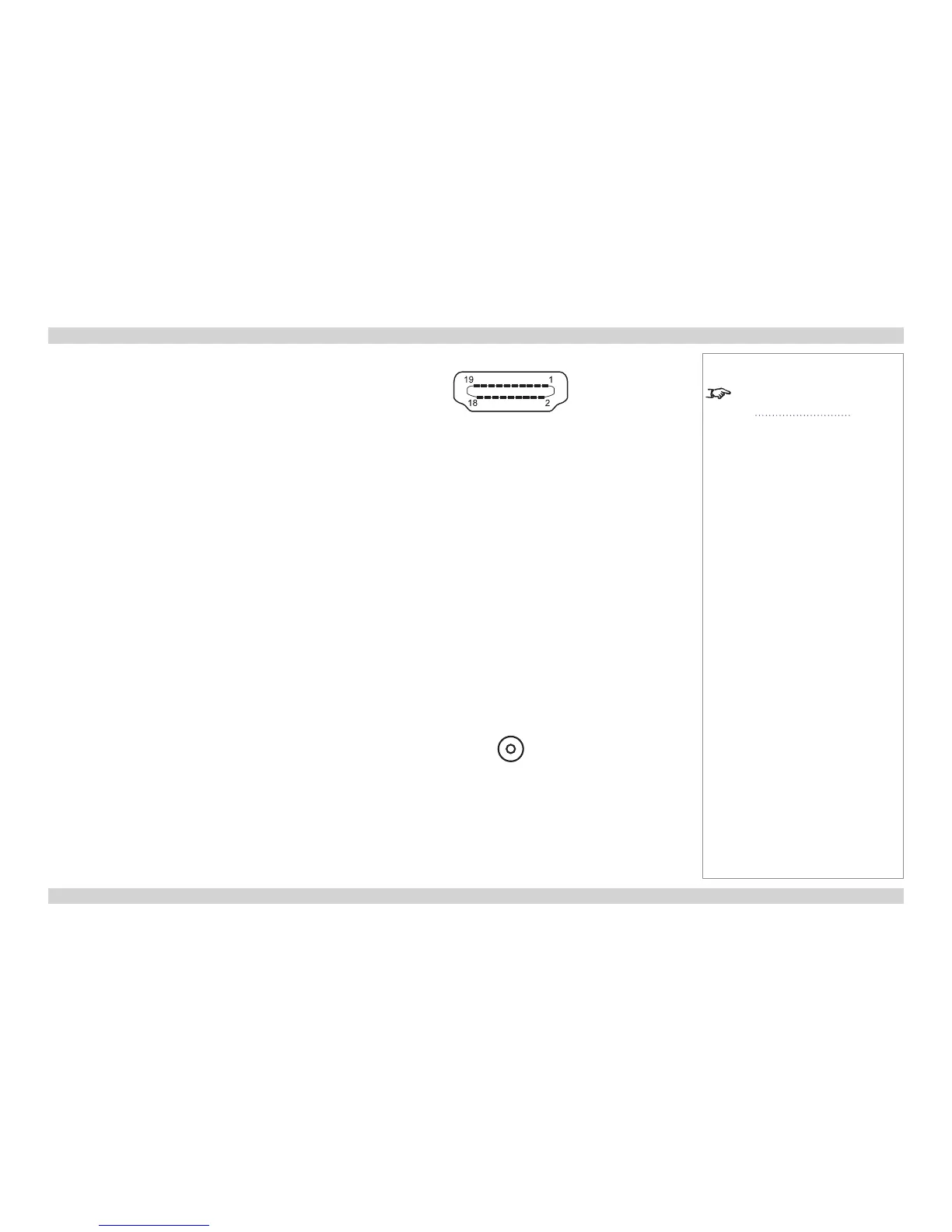

HDMI: pin view of panel connector
Notes
For full details of all input settings,
see Input Configuration in the
Operating Guide.
SPDIF connector
