Digital Projection Titan Quad / 930 / 800 Series POSITIONING THE SCREEN AND PROJECTOR Installation and Quick-Start Guide
16
Rev H October 2013

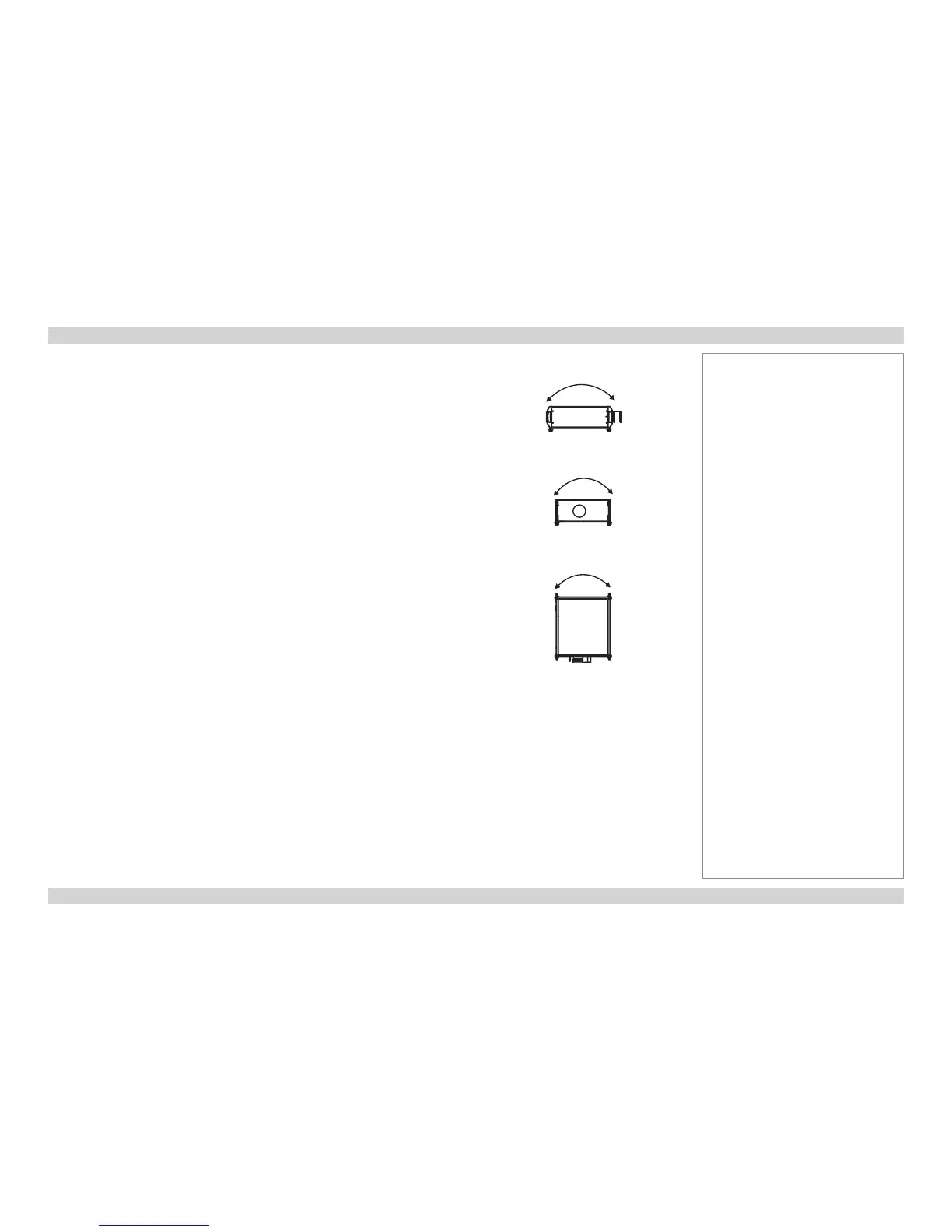

Adjusting pitch, roll and yaw
• To adjust the pitch, turn either the front pair or the rear pair of vertical adjusters, taking care to turn
both adjusters by the same amount.
• To adjust the roll, turn either the left pair or the right pair of vertical adjusters, taking care to turn both
adjusters by the same amount.
• To adjust the yaw, turn the single horizontal adjuster at the front.
Notes
Pitch
Roll
Yaw
