Digital Projection Titan Quad / 930 / 800 Series SIGNAL INPUTS AND OUTPUTS Connection Guide
33
Rev H October 2013

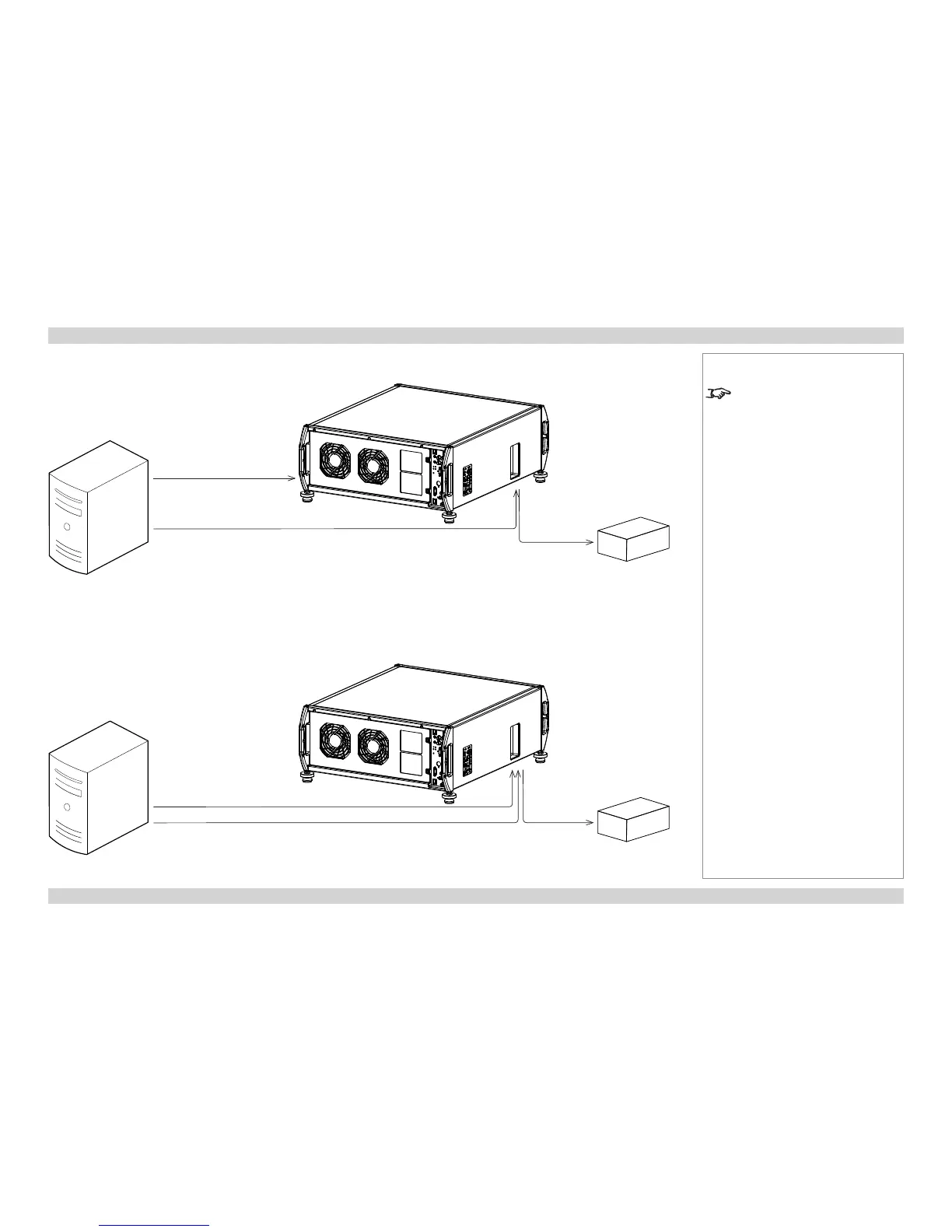

3D connection examples
3D sources up to 60Hz, requiring frame doubling and left/right interleaving
3D sources above 60Hz
Notes
Use inputs 1-8 if the geometry of the
image needs to be adjusted.
ZScreen or IR emitter
3D server
Sync out
Sync in
Sync
Video Any input (1-11)
ZScreen or IR emitter
3D server
Sync out
Sync in
Sync
Video Inputs 9, 10 and 11
