Digital Projection Titan Quad / 930 / 800 Series USING THE PROJECTOR Operating Guide
58
Rev H October 2013
Array Width and Height
• Set this to the total number of projectors in the array. None of the other
options are available until one of these two settings is greater than 1. The
maximum number of projectors is 4 x 4.
Array H Position and V Position
• These two parameters need to be set correctly for each projector in the
array, so that it can determine which edges are to be blended. Sometimes
only one edge overlaps, sometimes two, three or four.
Example

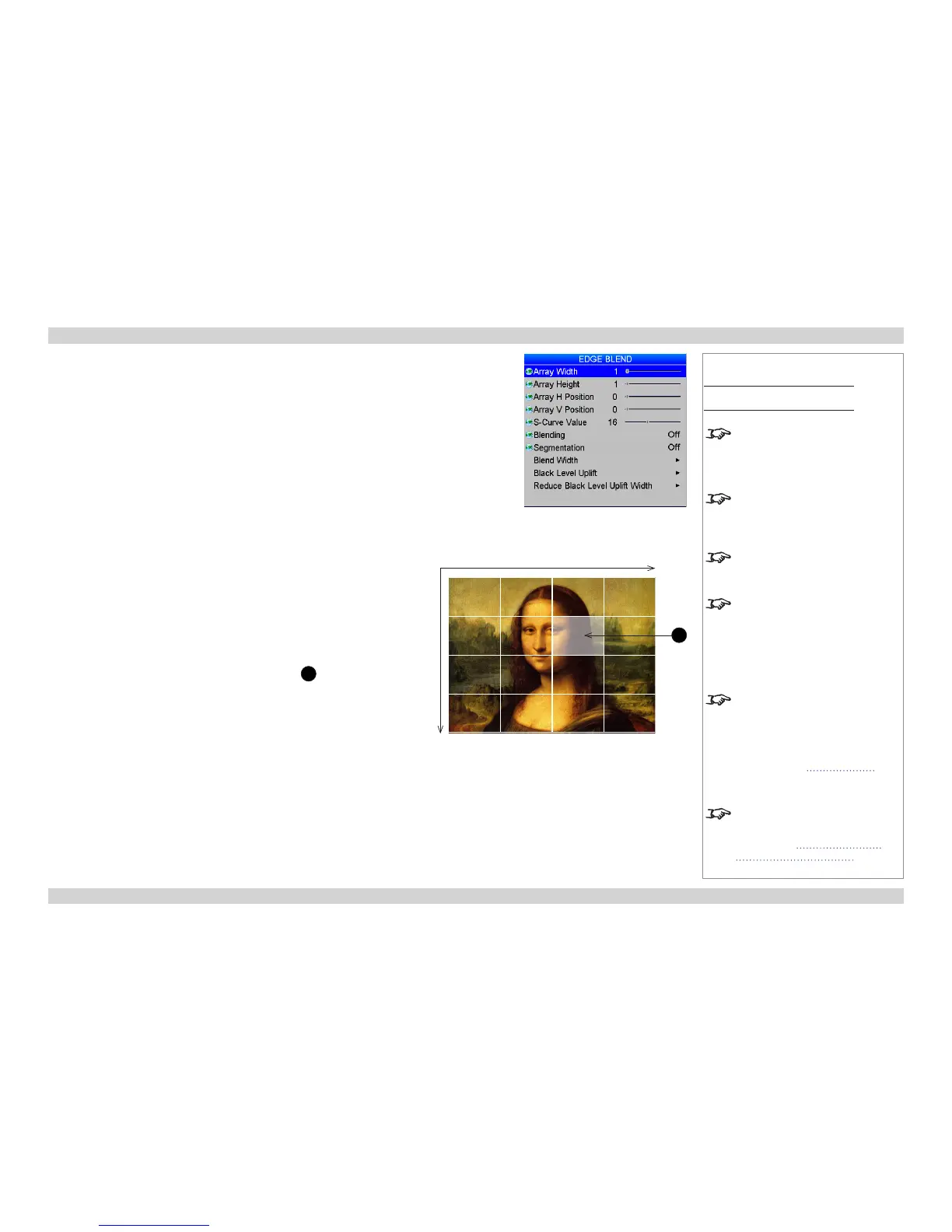

The illustration shows an array of sixteen projectors. Array Width and Array
Height of all projectors have been set up as follows:
• Array Width = 4
• Array Height = 4
Array H Position and Array V Position of each projector have been set up to
reect its vertical and horizontal position in the array.
The settings for the third projector in the second row
1
are:
• Array H Position = 2
• Array V Position = 1
Notes
Main Menu
Edge Blend
This menu is available only when
Setup > System > Conguration is
set to Edge Blend.
None of the other items in this menu
are available until either the Array
Width or the Array Height setting
is greater than 1.
The position numbering starts from
zero, so the top left projector is at
position H 0, V 0.
Which settings are available in these
menus depends on:
● the number of projectors in the
array
● the position of the projector in
the array
An image like the one shown here
can be produced by an array of 16
projectors only if Segmentation
is set to ON, or if an external tool
is used to split the image into
segments. See Segmentation
further in this section.
For a detailed step-by-step
description of the edge blend
process, see Blending images
from multiple projectors further in
this section.
1
Example array of sixteen projectors
Array H Position: 0 to 3
Array V Position: 0 to 3
