Digital Projection Titan Quad / 800 / 930 Series APPENDIX E: WIRING DETAILS Reference Guide

189

Rev H October 2013

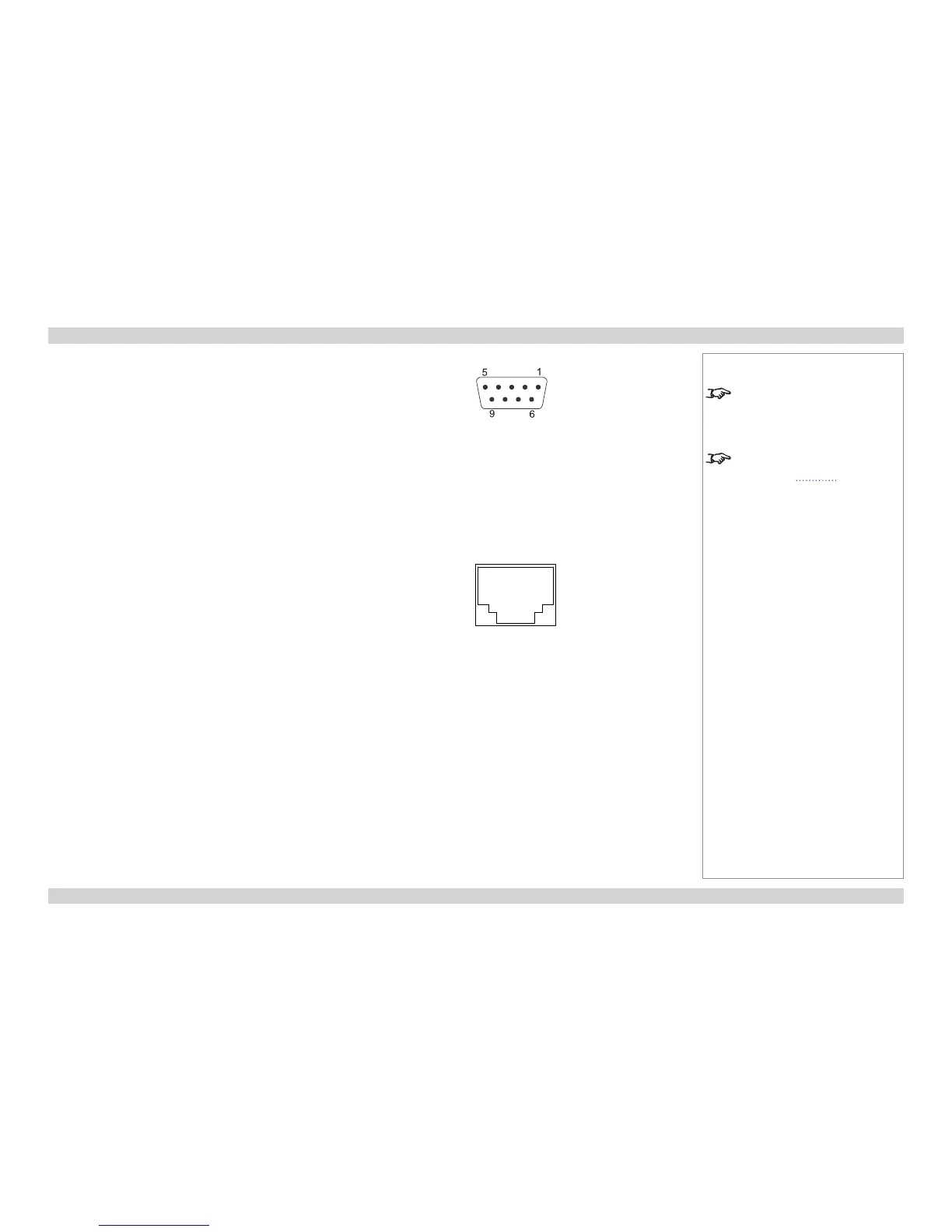

RS232

9 way D-type connector

1 unused

2 Received Data (RX)

3 Transmitted Data (TX)

4 unused

5 Signal Ground

6 unused

7 unused

8 unused

9 unused

LAN connection

RJ45 socket

Notes

Only one remote connection (RS232

or LAN) should be used at any one

time.

For full details of all network

settings, see Network in the

Operating Guide.

RS232:

pin view of female connector

LAN connection
