S-Curve Value
• In the regions where two or more projectors overlap, the brightness of
the signal is decreased to blend the images. S-Curve Value controls the
steepness of this decrease.
Notes
Main Menu
Edge Blend
This menu is available only when
Setup > System > Conguration is
set to Edge Blend.
None of the other items in this menu
are available until either the Array
Width or the Array Height setting
is greater than 1.
For a detailed step-by-step
description of the edge blend
process, see Blending images
from multiple projectors further in
this section.
1

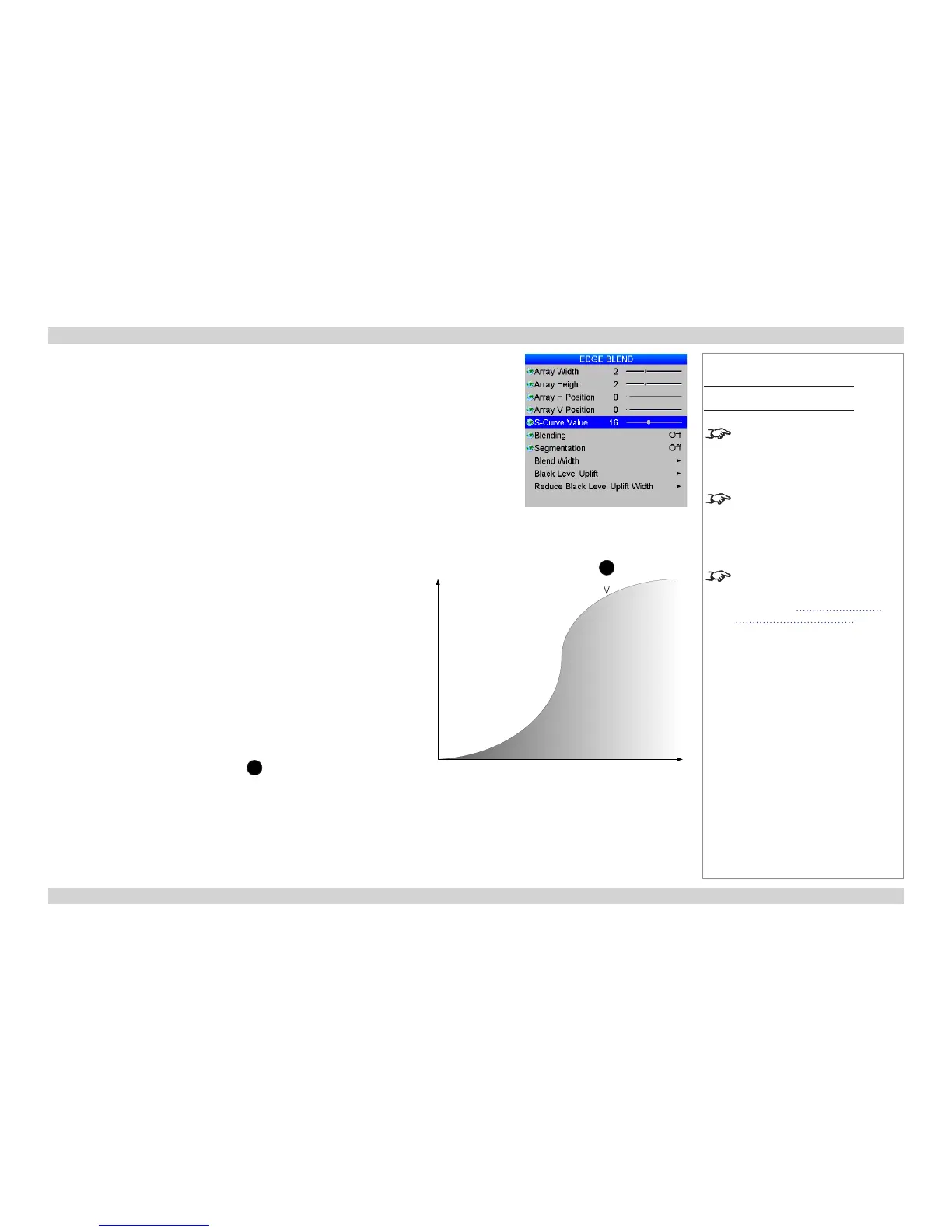

S-Curve
Y = amount of light
X = distance from the edge (X=0 is the edge)
1
