Blend Width
Use this to set the width of the blended regions.
1
Top Blend Region
2
Bottom Blend Region
3
Left Blend Region
4
Right Blend Region
Black Level Uplift
Overlapping edges may appear lighter than the rest
of the image. Counteract this effect by raising black
levels in the rest of the image. The amount of uplift
required will be either x2 or x4, depending on how
many images are overlapped.

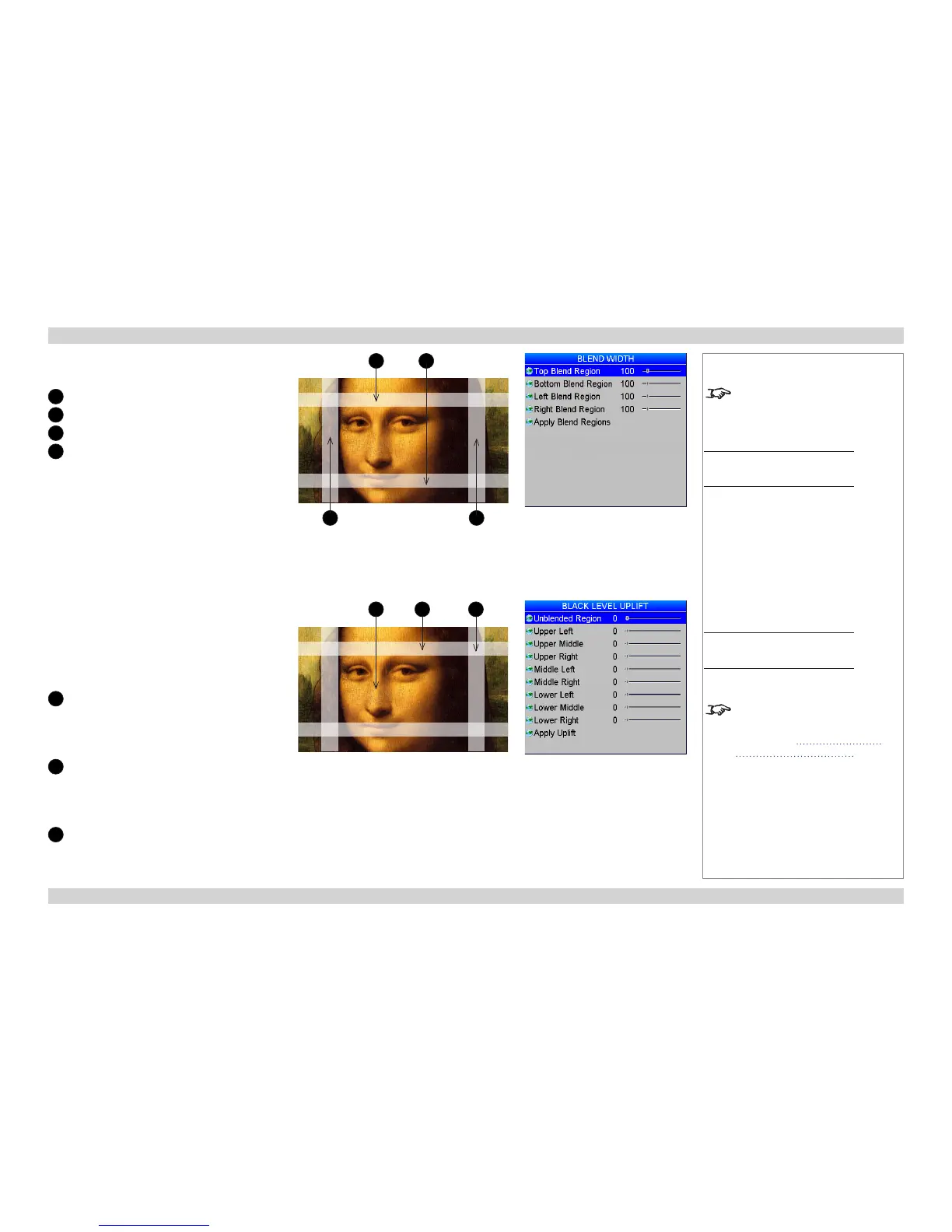

The following example shows a segment with
overlapping edges on all sides.
5
Unblended Region
This region is not overlapped. Black level
should be raised by the maximum overlap
occurring within the segment, therefore
Black Level Uplift should be x4.
6
Upper Middle
This section of the image is overlapped
by two projectors, therefore the correct
amount of Black Level Uplift should be
x2.
7
Upper Right
This part of the image is overlapped by
four projectors, therefore Black Level
Uplift should not be applied.
3
1 2
4
75 6
Notes
To apply the settings in these
menus, use the Apply command at
the bottom of each page.
Main Menu
Edge Blend
Blend Width
Main Menu
Edge Blend
Black Level Uplift
For a detailed step-by-step
description of the edge blend
process, see Blending images
from multiple projectors further in
this section.
