Digital Projection Titan 930 - DMD Resolution 1080 P, 1.6:1 Images

Digital Projection Titan Quad / 800 / 930 Series APPENDIX B: LENS CHARTS Reference Guide
158
Rev H October 2013
DMD™ resolution 1080p, 1.6:1 images
1
1.12:1xedlens(short)
2
0.67:1xedlens
3
1.12-1xedlens
4
1.16 - 1.49 : 1 zoom lens
5
1.39 - 1.87 : 1 zoom lens
6
1.87 - 2.56 : 1 zoom lens
7
Other lenses (next page)
8
2.56 - 4.17 : 1 zoom lens
9
4.17 - 6.95 : 1 zoom lens
10
6.93 - 10.34 : 1 zoom lens
Notes

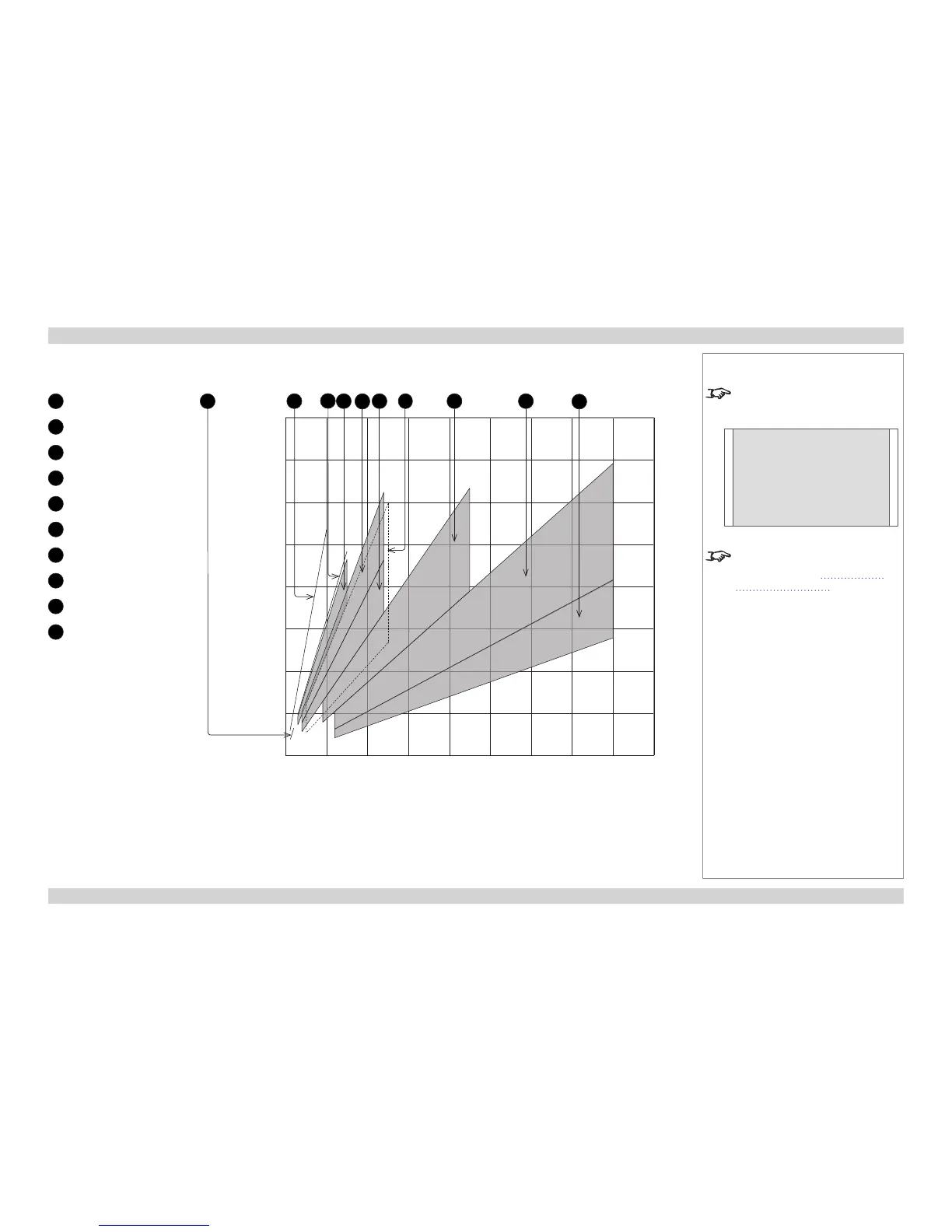

This chart has a TRC of 1.11, for
use with the following images:
For information about individual lens
part numbers, see Appendix A:
Lens Part Numbers.
1.6:1 (16:10)
2.5 m (8.2 ft)
5.0 m (16.4 ft)
7.5 m (24.6 ft)
10.0 m (32.8 ft)
12.5 m (41.0 ft)
15.0 m (49.2 ft)
17.5 m (57.4 ft)
20.0 m (65.6 ft)
Throw distance
Screen width
