Digital Projection Titan Quad / 800 / 930 Series APPENDIX B: LENS CHARTS Reference Guide
157
Rev H October 2013
DMD™ resolution 1080p, 1.33:1 images (continued)
Notes

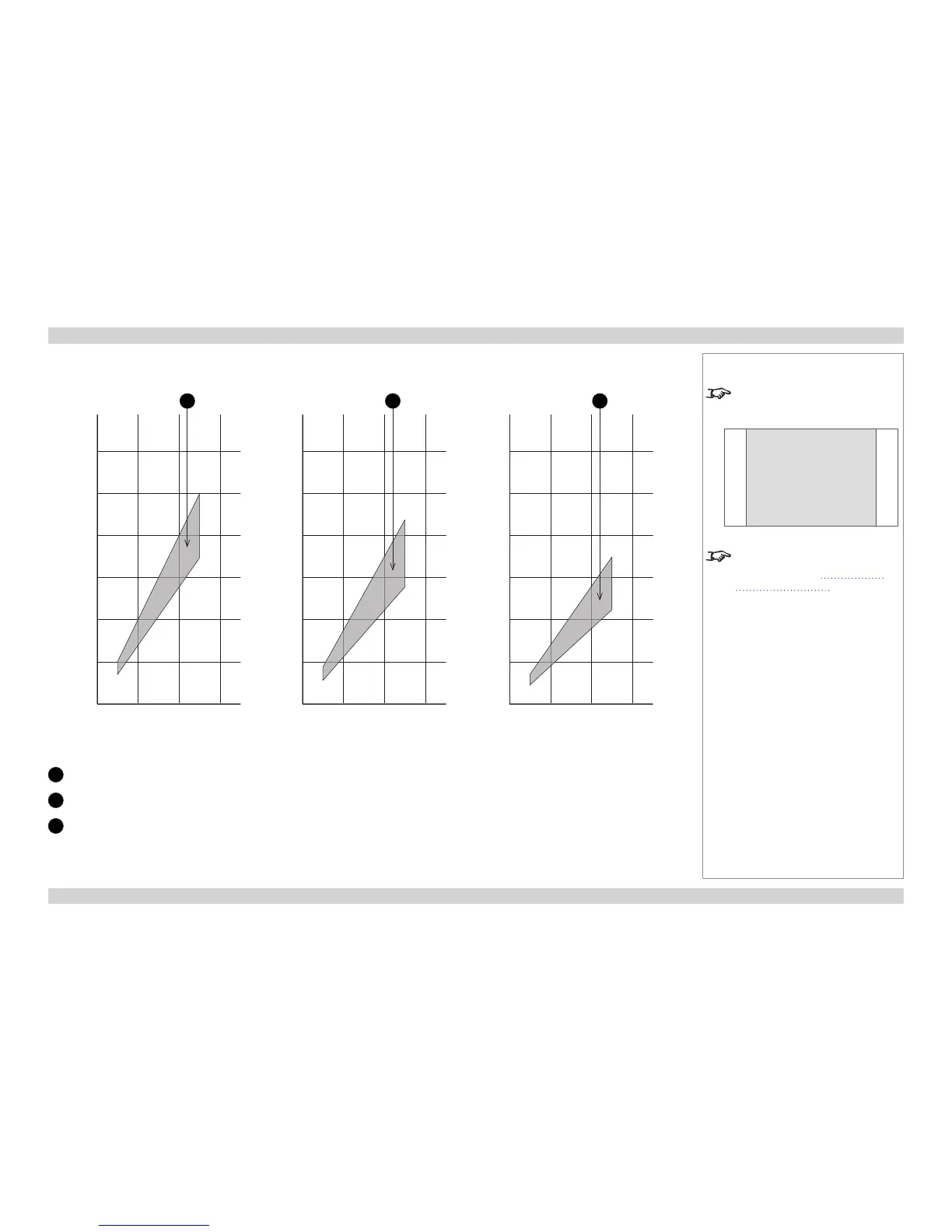

This chart has a TRC of 1.33, for
use with the following images:
For information about individual lens
part numbers, see Appendix A:
Lens Part Numbers.
1.33:1 (4:3)
2.5 m
(8.2 ft)
5.0 m
(16.4 ft)
7.5 m
(24.6 ft)
10.0 m
(32.8 ft)
12.5 m
(41.0 ft)
15.0 m
(49.2 ft)
Throw distance
Screen width
20 m
(66 ft)
10 m
(33 ft)
30 m
(98 ft)
1
2.5 m
(8.2 ft)
5.0 m
(16.4 ft)
7.5 m
(24.6 ft)
10.0 m
(32.8 ft)
12.5 m
(41.0 ft)
15.0 m
(49.2 ft)
Throw distance
Screen width
20 m
(66 ft)
10 m
(33 ft)
30 m
(98 ft)
2
2.5 m
(8.2 ft)
5.0 m
(16.4 ft)
7.5 m
(24.6 ft)
10.0 m
(32.8 ft)
12.5 m
(41.0 ft)
15.0 m
(49.2 ft)
Throw distance
Screen width
20 m
(66 ft)
10 m
(33 ft)
30 m
(98 ft)
3
1
1.50 - 2.17 : 1 zoom lens
2
1.72 - 2.71 : 1 zoom lens
3
2.15 - 3.36 : 1 zoom lens
