Digital Projection Titan Quad / 800 / 930 Series SCREEN REQUIREMENTS Reference Guide

126

Rev H October 2013

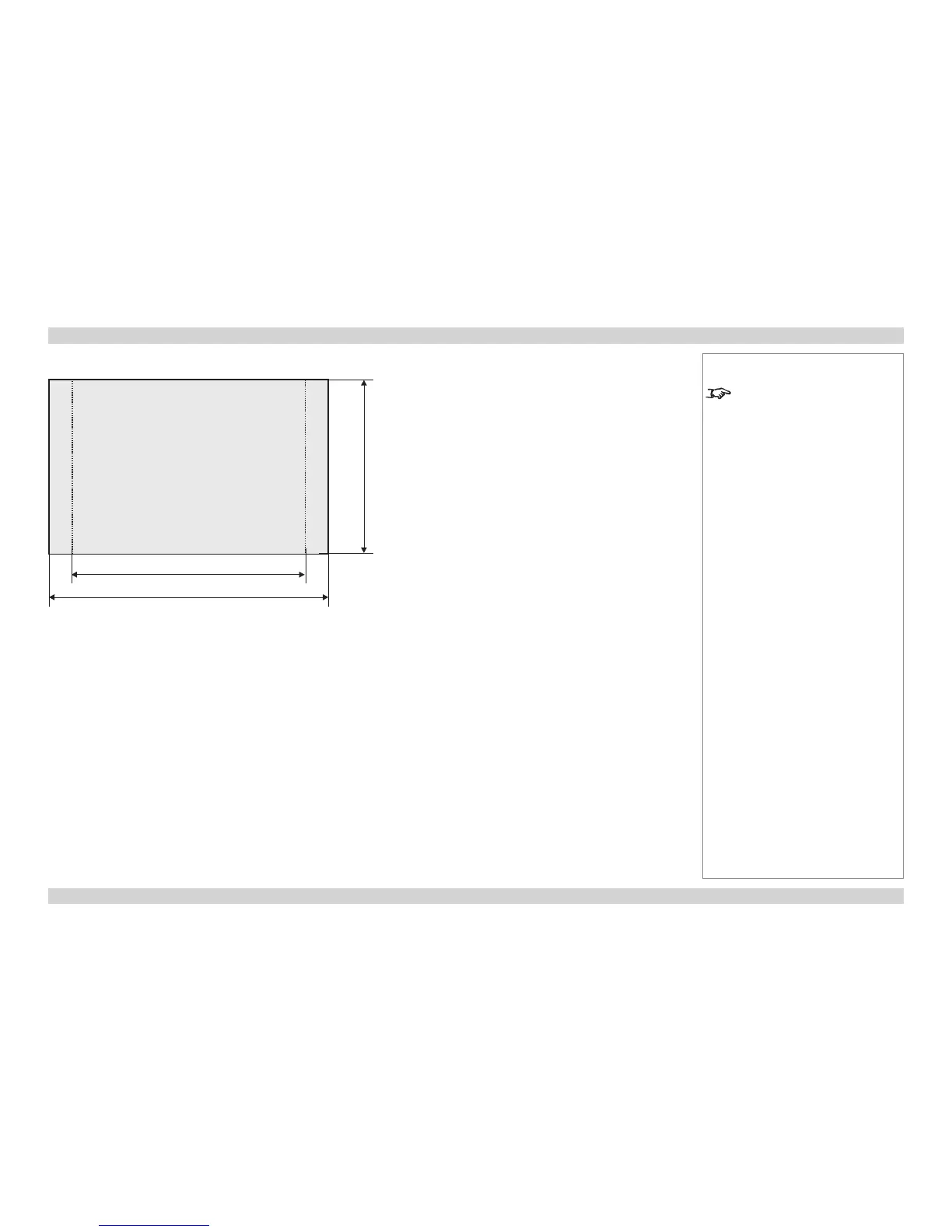

WUXGA images displayed full height

Notes

Only WUXGA or UXGA images

can ll the full height of the DMD™,

using all 1200 pixels without scaling.

full height = 1200 pixels

WUXGA = 16:10 = 1.6:1 = 1920 pixels

UXGA = 4:3 = 1.33:1 = 1600 pixels
