Digital Projection Titan 930 - Aspect Ratios Explained

Digital Projection Titan Quad / 800 / 930 Series SCREEN REQUIREMENTS Reference Guide
125
Rev H October 2013

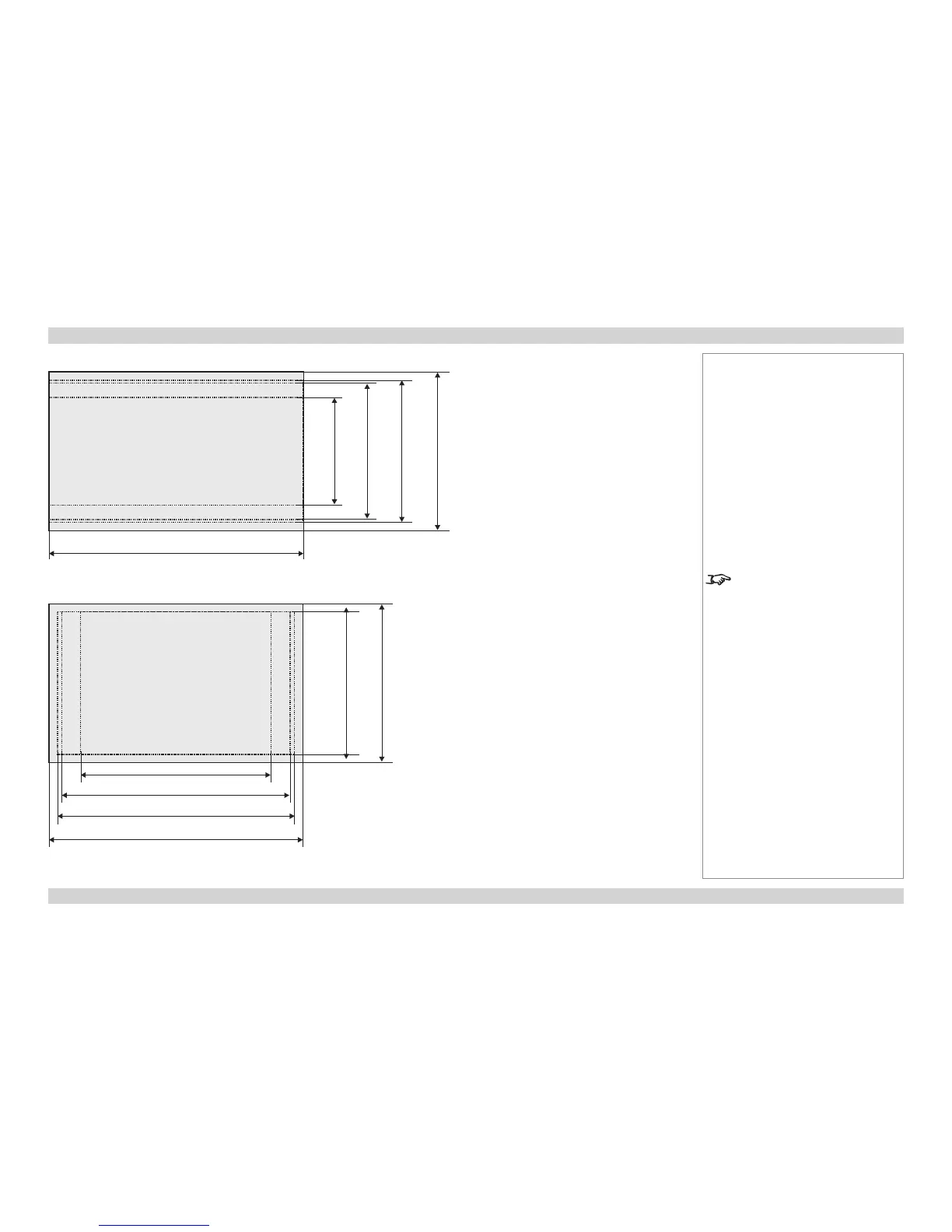

WUXGA images displayed full width
WUXGA images displayed with a height of 1080 pixels
full width = 1920 pixels
2.35:1(Scope)
= 817 pixels
1.85:1
= 1037 pixels
16:9 = 1.78:1
= 1080 pixels
full height
= 1200 pixels
Notes
The images shown here cannot ll
the full height of the DMD™, and will
be scaled to a height of 1080 pixels.
4:3 = 1.33:1 = 1440 pixels
full height
= 1200 pixels
1.66:1 (Vista) = 1792 pixels
16:10 = 1.6:1 = 1728 pixels
max possible image height
= 1080 pixels
full width = 1920 pixels
