Digital Projection Titan Quad / 930 / 800 Series USING THE PROJECTOR Operating Guide
76
Rev H October 2013
PIP menu

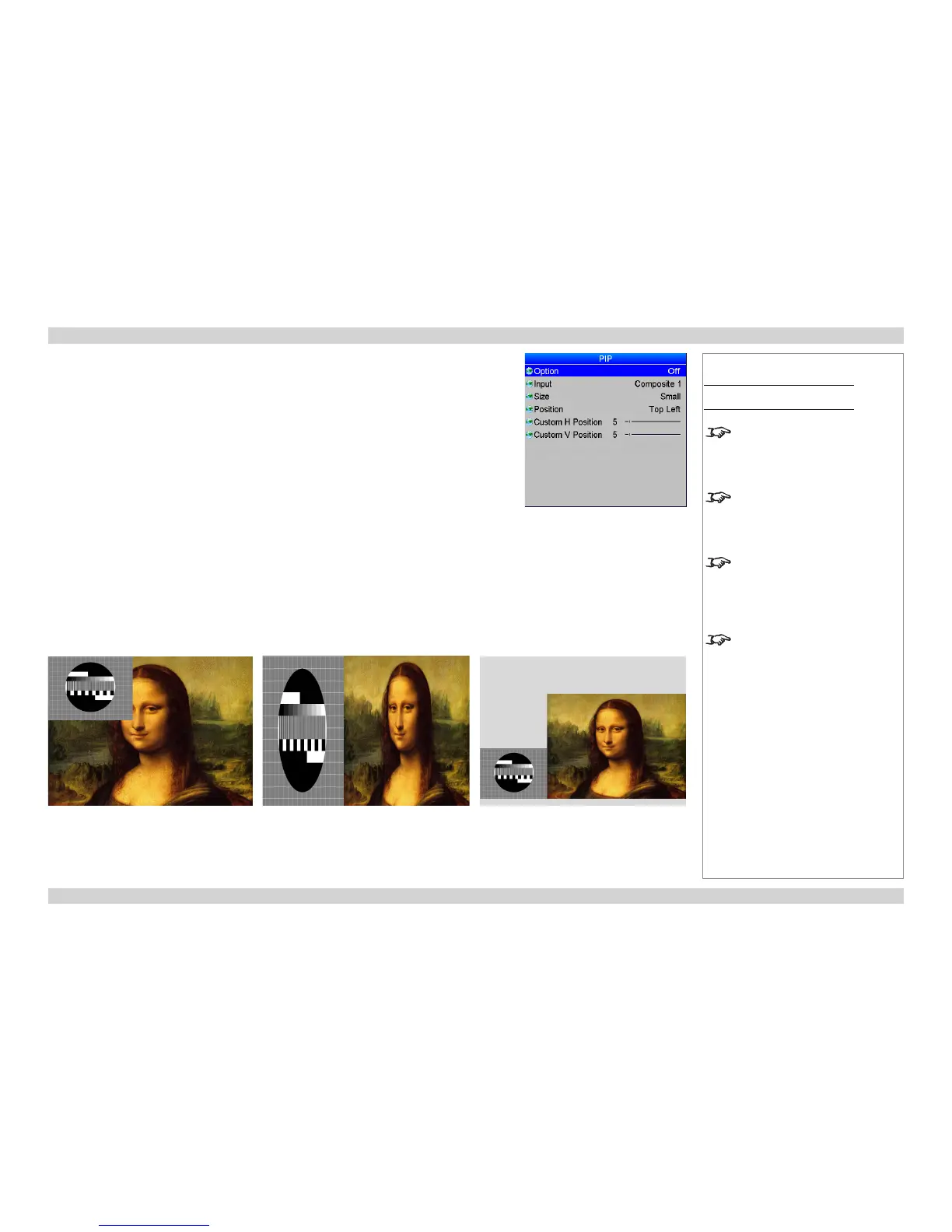

Two images can be combined in three different ways using this feature. The PIP menu is available
only when Setup > System > Conguration is set to PIP.
Option
• Select PIP, PAP, or POP mode from the drop-down list.
Input
• Select an Input for the sub-image from the drop-down list. The inputs are divided into two groups
– the main image must be from one group, and the sub-image must be from the other group.
• Group A: COMPOSITE 1, COMPOSITE 2, S-VIDEO and 3G-SDI
• Group B: COMPONENT, VGA, DVI, HDMI and DVI-A
The inputs from the same group as the main input signal will appear disabled in the list.
Size
• Select a size for the sub-image from the drop-down list.
Position
• Select one of the preset positions for the sub-image from the drop-down list.
Custom Position
• If you have chosen Custom from the Position drop-down list, then you can use the sliders to
position the image manually.
Notes
Main Menu
PIP
This menu is available only when
Setup > System > Conguration is
set to PIP.
PIP, PAP and POP are NOT
possible when Input is set to Test
Pattern.
In these examples, the painting is
the main image, and the test pattern
is the sub-image, shown at the
Medium size setting.
The Position settings apply ONLY
to PIP mode. PAP and POP are
always as shown in these examples.
PIP: Picture In Picture
PAP: Picture And Picture POP: Picture Opposite Picture
