Digital Projection Titan Quad / 930 / 800 Series SIGNAL INPUTS AND OUTPUTS Connection Guide
27
Rev H October 2013

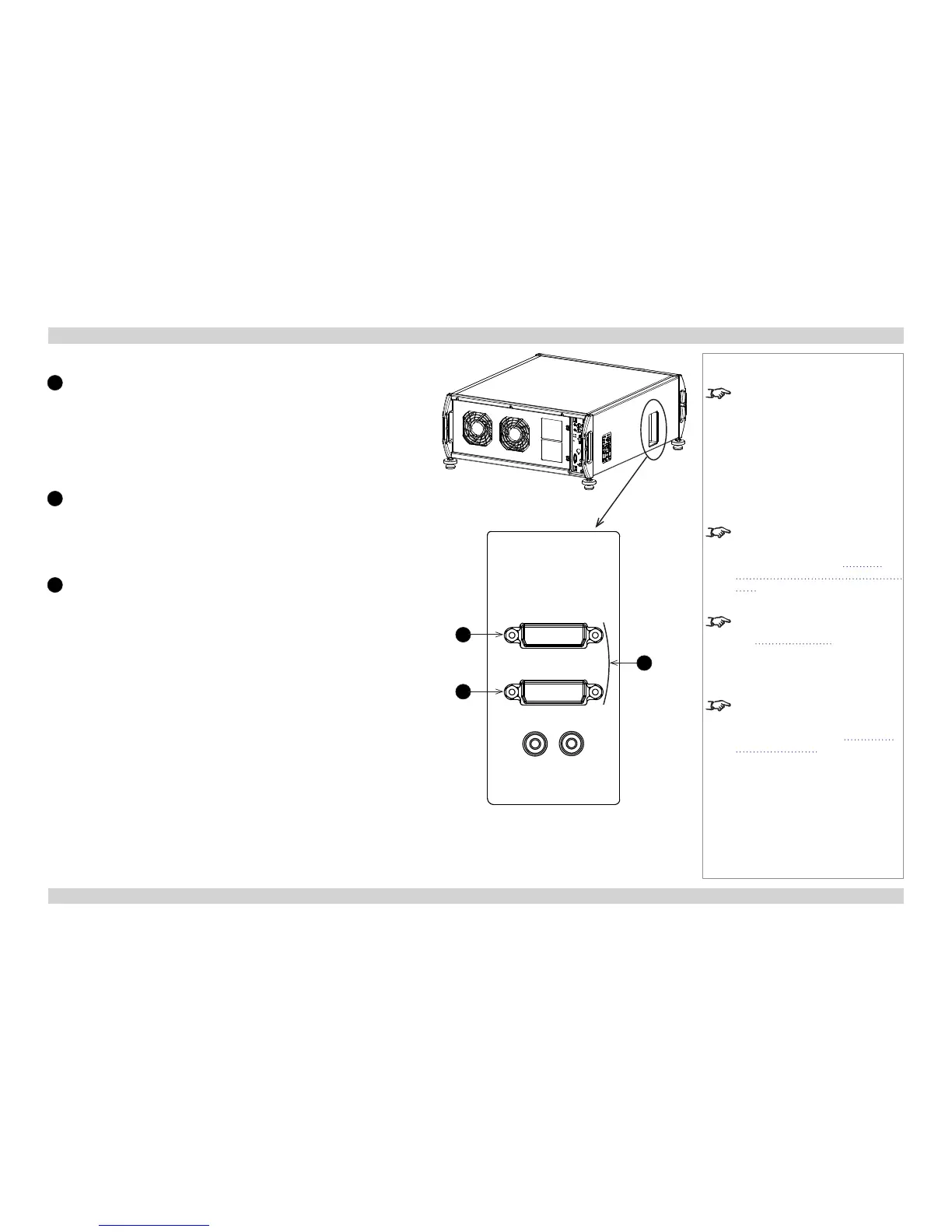

Side connection panel on 3D projectors
1
Main/DVI (input 9)
Single or Dual Link DVI-D input.
This input has a DVI-I connector, but can only receive digital (DVI-D) signal
from a compatible source.
Sources up to:
• 1920x1080 resolution for 1080p models
• 1920x1200 resolution for WUXGA models
24-160Hz; up to 12 bits per color. Supports HDCP.
2
Sub/HDMI (input 10)
Single Link DVI-D (HDMI 1.4 compatible ) input.
Sources up to:
• 1920x1080 resolution for 1080p models
• 1920x1200 resolution for WUXGA models
24-60Hz; up to 12 bits per color.
3
Twin-Link DVI-D (Dual Pipe)
Connect both sockets.
Input 9 is the Main input, Input 10 (DVI/HDMI) is the Sub input.
Sources up to:
• 1920x1080 resolution for 1080p models
• 1920x1200 resolution for WUXGA models
at frame rates consistent with up to 148.5 Mpx/sec/pipe (including blanking)
.
Notes
There is no scaler on Inputs 9-11.
Images up to and including the
native resolution of the display will
be displayed pixel for pixel and
centred.
This enables the projector to
maximise the image bandwidth and
grayscale resolution.
For more information about
the difference between the two
connection panels, see Special
considerations when using inputs
9-11 further in this section.
For information about 3D video,
see 3D connections further in this
guide.
For a complete listing of pin
congurations for all signal and
control connectors, see Appendix
E: Wiring Details in the Reference
Guide.
Side Connection Panel
1
2
3
