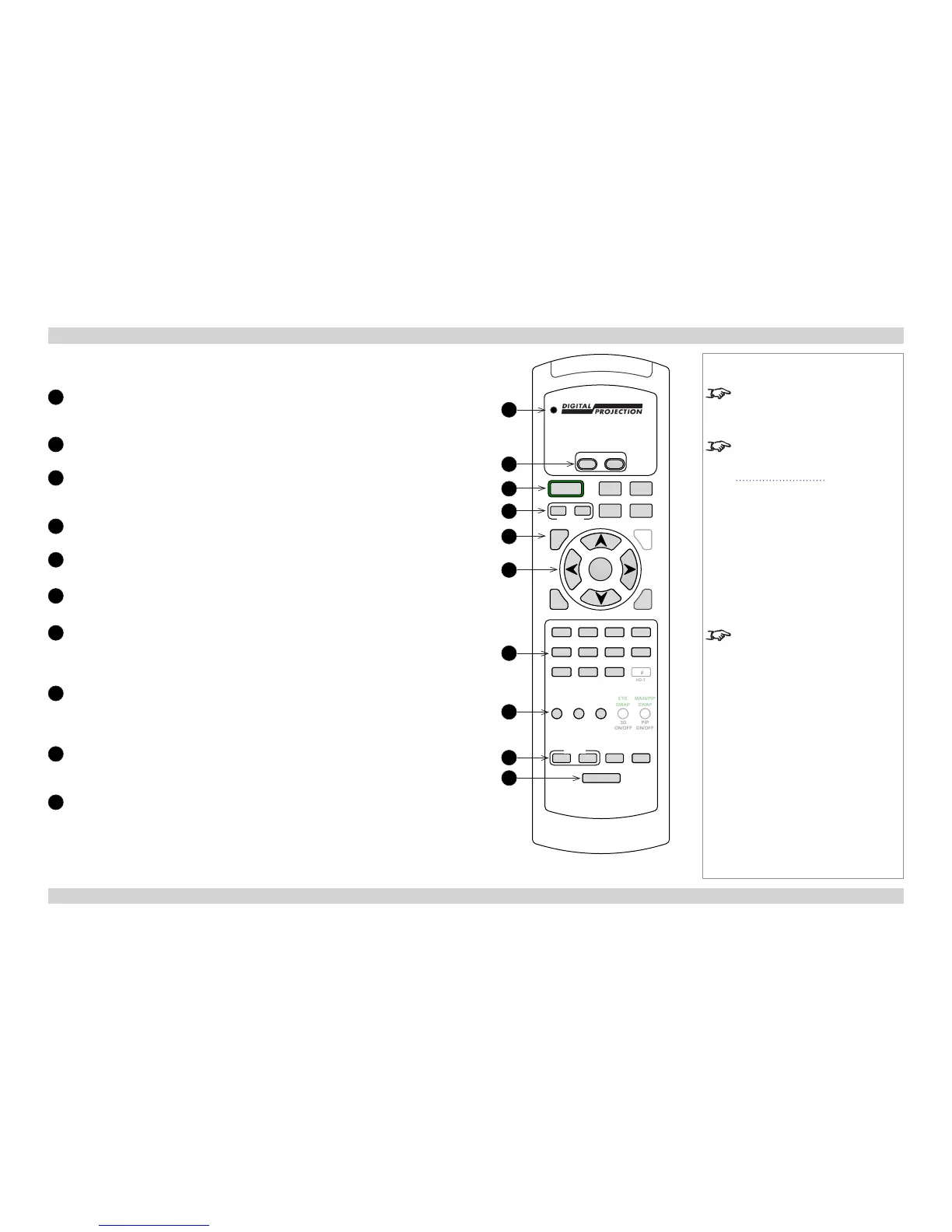

Remote control 105-023 Rev B
1
Transmit indicator
Flashes when the remote control sends a signal to the projector.
Lights solidly when the projector is in LENS ADJUSTMENT mode.
2
Power ON / OFF
3
ALT
Acts as a shift key. To use, press and hold this button, then press a green-labeled
button.
4
Shutter OPEN / CLOSE
5
MENU
Access the projector OSD (on-screen display).
6
Navigation
Navigate through the menus with the arrows, conrm your choice with OK.
7
Input selection
Select input source.
9, 0 and 10+ are not used on 2D projectors as they are used for inputs on the side
connection panel.
8
Image adjustment
Adjust brightness, contrast and gamma.
Press this button while holding the ALT button down to switch red, green and blue
channels on and off.
9
Lens presets
To recall a lens preset, press and hold LOAD, then press a number button 1 to 5.
To save a lens preset, press and hold SAVE, then press a number button 1 to 5.
10
Remote control backlight ON / OFF
Make the remote control buttons glow in the dark, or switch this feature off.
continues on next page...
Remote control 105-023 Rev B
VGA HDMI DVI 3GSDI
CVBS1 SVIDEO
CLOSE
1
2 3 4
COMP CVBS2
5 6 7 8
9 0 10+ #
MAIN SUB
DUAL
HD-T
OFF
ON
ALT
ROLL
PITCH
YAW
FOCUS
CAL
SHIFT
ZOOM
EYE
SWAP
MAIN/PIP
SWAP
BRI
CON GAMMA
3D
ON/OFF
PIP
ON/OFF
LOAD
SAVE
TEST ADDR
BACKLIGHT
R
G
B
PRESET
SHUTTER
OPEN
POWER
MENU
OK
EXIT
INFO
1
2
6
7
8
10
3
4
5
9
Notes
Only the controls shown highlighted
are used on this projector.
For more information about
LENS ADJUSTMENT mode, see
Adjusting the lens further in this
guide.
Input selection buttons:
• 1 to 8 - as labeled.
• 9 selects Main/DVI (input 9, side
connection panel).
• 0 selects Sub/HDMI (input 10,
side connection panel).
• 10+ selects Dual Pipe (both
inputs 9 and 10).
