Digital Projection Titan 930 - Aspect Ratio Example: Theaterscope

Digital Projection Titan Quad / 800 / 930 Series ASPECT RATIOS EXPLAINED Reference Guide
143
Rev H October 2013
Aspect ratio example: TheaterScope
The TheaterScope setting is used in combination with an anamorphic lens to restore 2.35:1 images packed into a 16:9 frame. Such images
are projected with black lines at the top and bottom of the 16:9 screen to make up for the difference in aspect ratios.

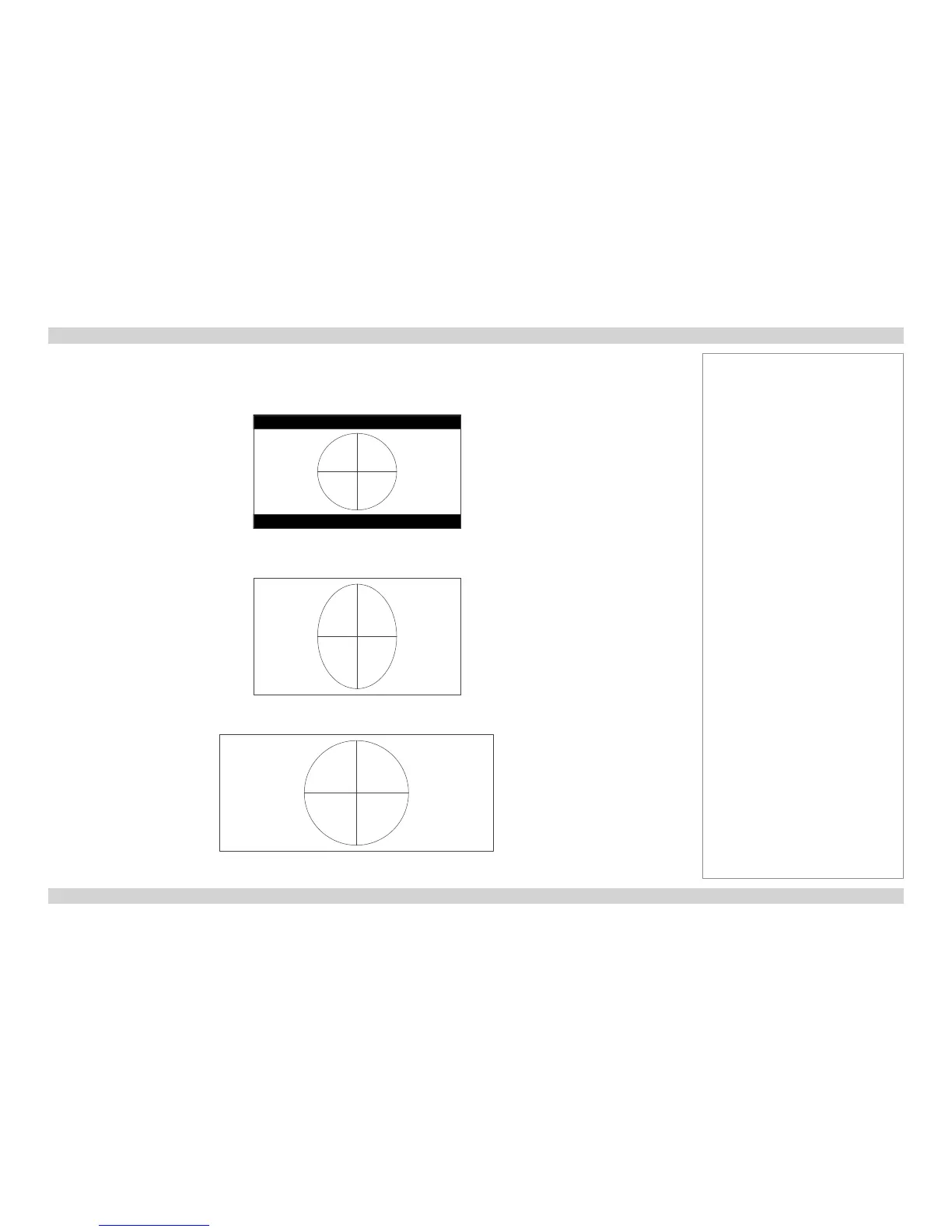

Without an anamorphic lens and without the TheaterScope setting applied, a 16:9 source containing a 2.35:1 image looks like this:
If we change the setting to TheaterScope, the black lines will disappear but the image will stretch vertically to reach the top and bottom of
the DMD™:
An anamorphic lens will stretch the image horizontally, restoring the original 2.35 ratio:
Notes
Black margin – part of the source
Black margin – part of the source
