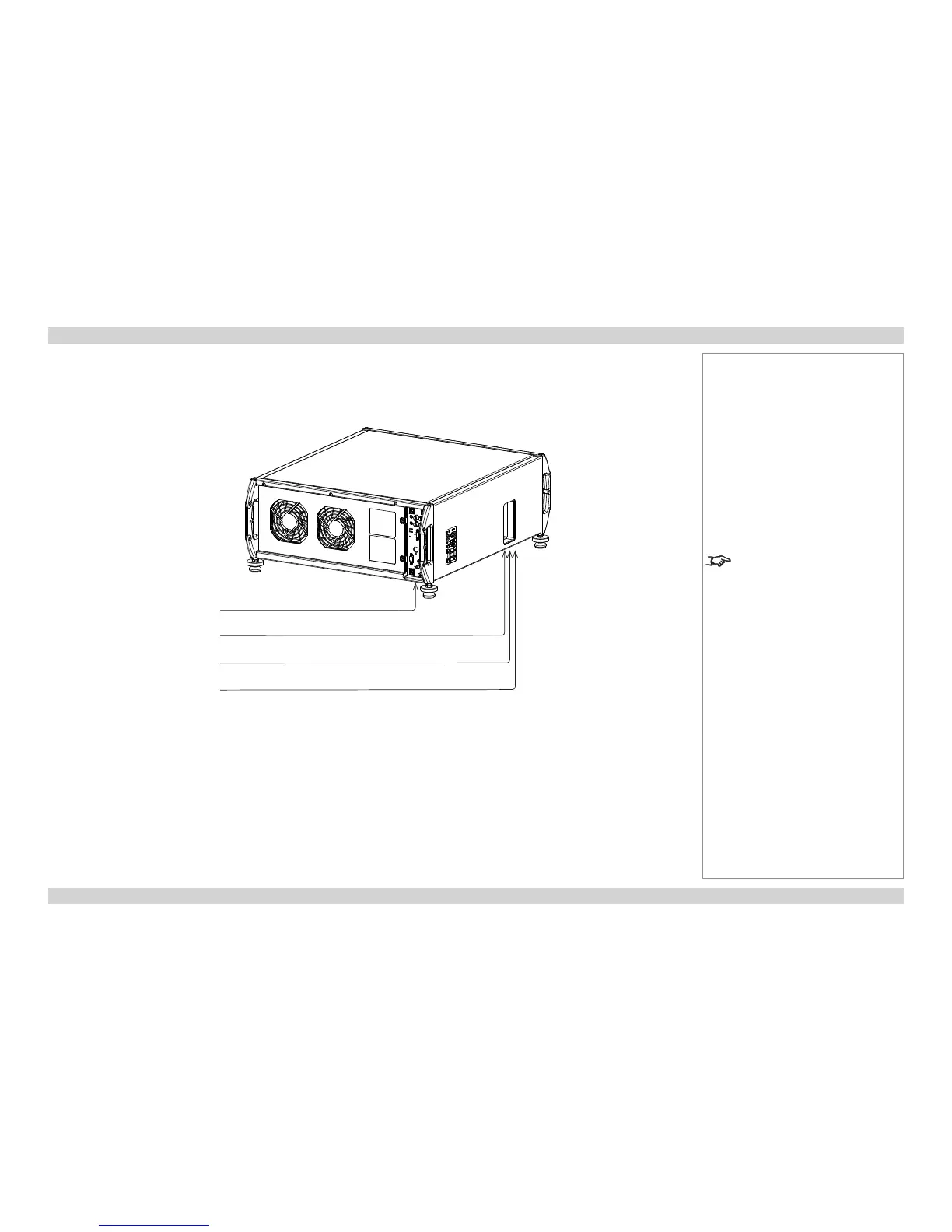

DVI input connection example
Notes
Dual link DVI:
high bandwidth/frame rate
Single or Dual link DVI video source
Input 9
Single link DVI video source
Input 3
Input 10
Single link DVI or HDMI video source
Dual Pipe 3D video source
Input 11: Input 9 MAIN and Input 10 SUB
