Digital Projection Titan Quad / 930 / 800 Series USING THE PROJECTOR Operating Guide
45
Rev H October 2013

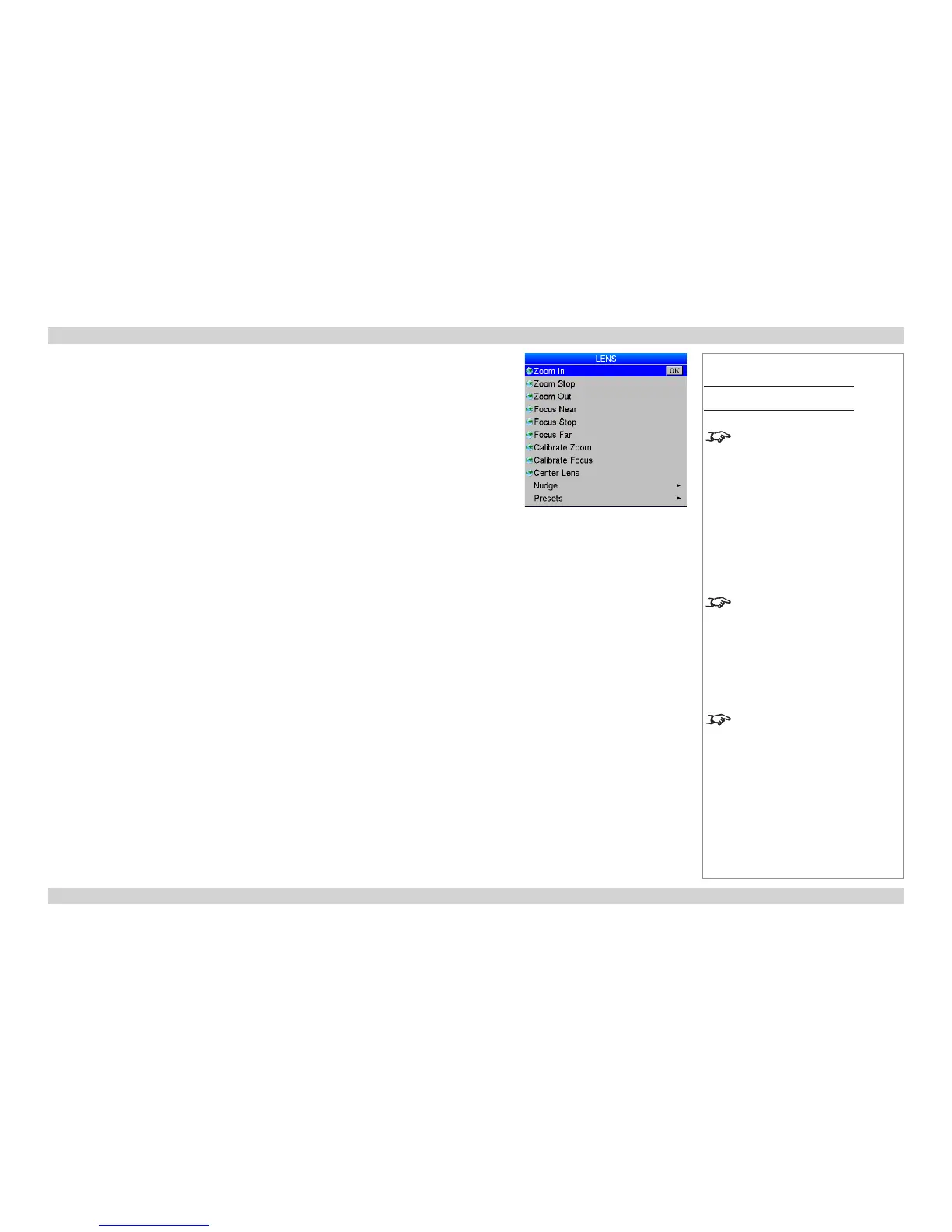

Lens menu
Zoom
To move the lens in or out:
1. Select Zoom In or Zoom Out, then press OK.
2. When the image is the desired size, select Zoom Stop and then press OK.
Focus
To adjust the focus:
1. Select Focus Near or Focus Far, then press OK.
2. When the image is correctly focussed, select Focus Stop and then press OK.
Calibrate Zoom and Calibrate Focus
Each time a new lens is tted into the projector, a calibration procedure must be carried out using these commands.
Before you use a newly tted lens, select Calibrate Zoom and Calibrate Focus in turn and wait until the projector establishes minimum
and maximum travel distances. Select one command and allow at least 60 seconds for the calibration to take place, then select the other
command.
Center Lens
To center the lens, select Center Lens and press OK.
Notes
Main Menu
Lens
You can also move the lens, focus
and zoom using the keypad or the
remote:
• Press SHIFT followed by an
arrow button to shift the lens up,
down, left and right.
• Press FOCUS followed by the
UP and DOWN arrow buttons to
adjust the focus.
• Press ZOOM followed by the
UP and DOWN arrow buttons to
zoom in and out.
You can also calibrate zoom and
focus using the keypad:
• Press RPY followed by the
RIGHT arrow button to calibrate
the lens zoom mechanism.
• Press RPY followed by the
LEFT arrow button to calibrate
the lens focus mechanism.
You can calibrate the lens using the
remote. Depending on the remote
you are using:
• On 105-023 Rev A, press RPY
followed by the arrow buttons
(RIGHT to calibrate zoom, LEFT
to calibrate focus).
• On 105-023 Rev B, press and
hold CAL, then press ZOOM or
FOCUS.
