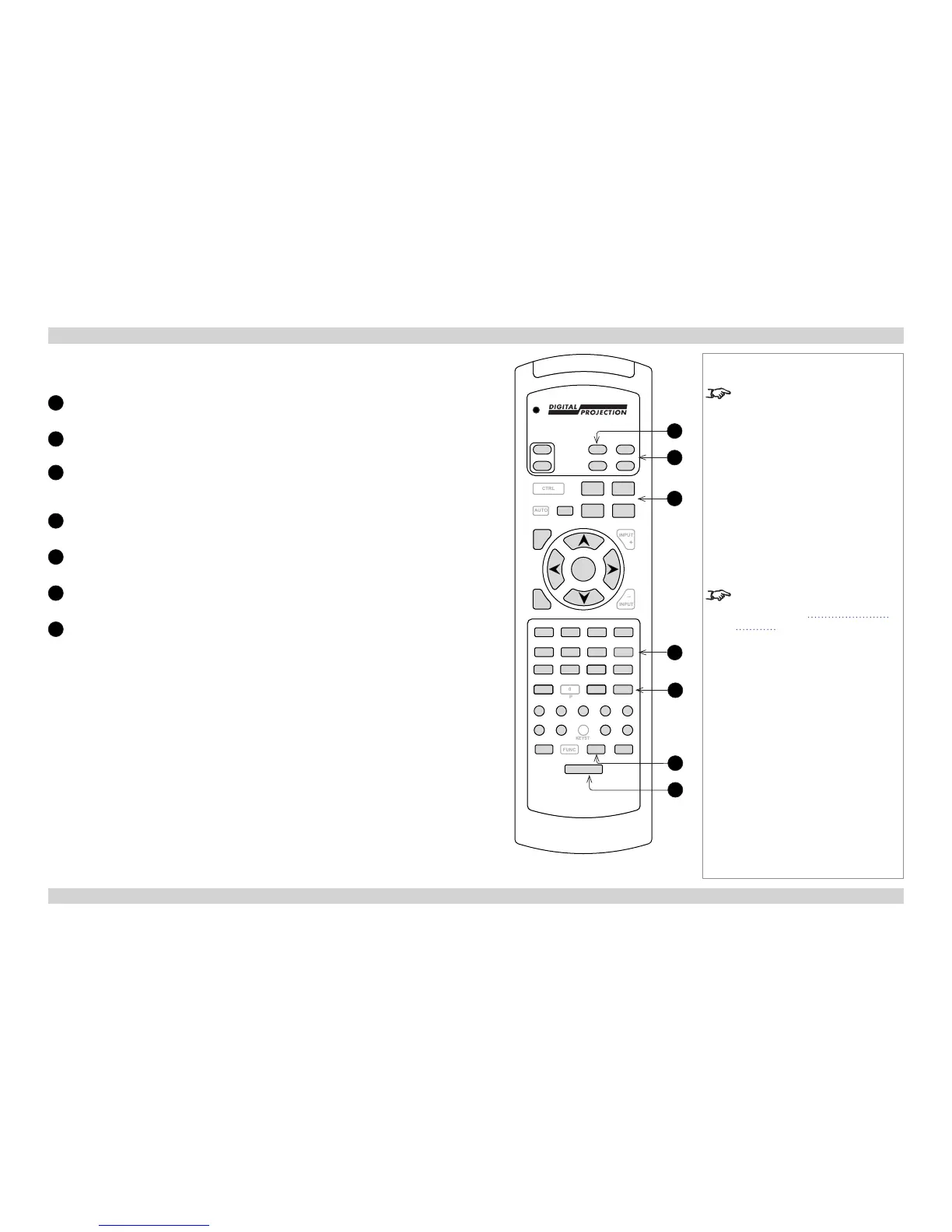

Remote control 105-023 Rev A - continued from previous page
9
OSD ON/OFF
Switch projector status messages on and off.
10
Shutter OPEN / CLOSE
11
Lens controls
Adjust position, zoom and focus.
Perform RPY calibration when you change the lens.
12
Color channels
Switch red, green and blue channels on and off.
13
TEST
Switch to test pattern.
14
IR address
Set up an address to match the IR address of a projector.
15
Remote control backlight ON / OFF
Make the remote control buttons glow in the dark, or switch this feature off.
Notes
Only the controls shown highlighted
are used on this projector.
For more information about IR
addresses, see Setting up an IR
address in the Operating Guide.
CTRL FOCUS
AUTO
INFO
SHIFT
ZOOM
MENU INPUT
OK
EXIT
INPUT
1 RGB1 3 DVI RED
4 SDI 5 VID 6 SVID GREEN
7 COM 8 9 BLUE
PRESET
FUNC ADDR SAVE
LIGHT
BRI
10+ 0 # TEST
OFF
ON
OSD
ON
OFF
POWER
OPEN
CLOSE
SHUTTER
+
_
2 RGB2
PRESET
SAVE
CON SAT MAGNIFY PHASE
A B C D
J K L M
E F G H
N P R S
OSD POS
KEYST
PAN ASPECT
RPY
Remote control 105-023 Rev A
15
10
11
14
9
12
13
To Next Page
