Subnetwork Installation Guidelines
140 ECLYPSE User Guide
Crimp both ends of the cable either as T568A or T568B as shown below.
Table 12-4: T568A and T568B Terminations for an RJ-45 Connector
Pin
T568A (at both cable ends)
T568B (at both cable ends)
Pair
Color
Pair
Color
1
3
white/green stripe
2
white/orange stripe
2
3
green solid
2
orange solid
3
2
white/orange stripe
3
white/green stripe
4
1
blue solid
1
blue solid
5
1
white/blue stripe
1
white/blue stripe
6
2
orange solid
3
green solid
7
4
white/brown stripe
4
white/brown stripe
8
4
brown solid
4
brown solid

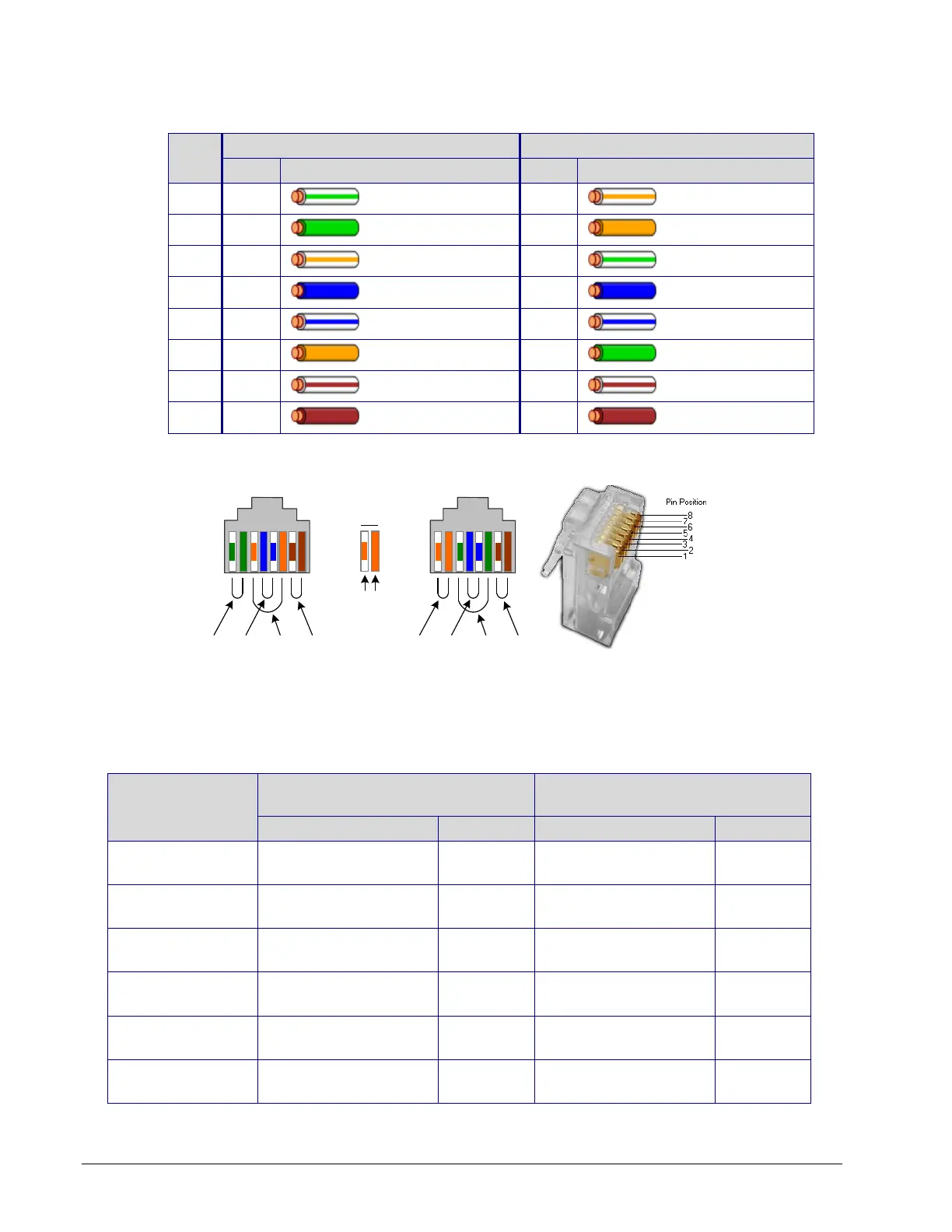

The final result of a crimped RJ-45 connector is shown graphically below.
Figure 12-4: Pins on RJ-45 Jack Face
Distech Controls recommends the Cat 5e cables shown below. Cables fitted with connectors
are crimped as T568B.
Table 12-5: Distech Controls Recommended Cable Types to use for the Cat 5e
Cable Subnetwork Data Bus
Cable Type
Non-Plenum Applications (Use in
Conduit - FT4)
Plenum Applications (FT6)
Part Number
O.D. (Ø)
1
Part Number
O.D. (Ø)
1
0.3m (1 ft.), Cat 5e Cable
fitted with RJ-45
Connectors
CB-CAT5PC4WH0001
4.6mm (0.18in.)
CB-CAT5PC6WH0001
4.6mm (0.18in.)
4.6m (15 ft.), Cat 5e
Cable fitted with RJ-45
Connectors
CB-CAT5PC4WH0015
4.6mm (0.18in.)
CB-CAT5PC6WH0015
4.6mm (0.18in.)
9m (30 ft.), Cat 5e Cable
fitted with RJ-45
Connectors
CB-CAT5PC4WH0030
4.6mm (0.18in.)
CB-CAT5PC6WH0030
4.6mm (0.18in.)
15m (50 ft.), Cat 5e
Cable fitted with RJ-45
Connectors
CB-CAT5PC4WH0050
4.6mm (0.18in.)
CB-CAT5PC6WH0050
4.6mm (0.18in.)
22m (75 ft.), Cat 5e
Cable fitted with RJ-45
Connectors
CB-CAT5PC4WH0075
4.6mm (0.18in.)
CB-CAT5PC6WH0075
4.6mm (0.18in.)
30m (100 ft.), Cat 5e
Cable fitted with RJ-45
Connectors
CB-CAT5PC4WH0100
4.6mm (0.18in.)
CB-CAT5PC6WH0100
4.6mm (0.18in.)
T568A T568B
Stripe Solid
1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8
Pair 3 Pair 1 Pair 2 Pair 4 Pair 2 Pair 1 Pair 3 Pair 4
Key:
