Supported RADIUS Server Architectures
66 ECLYPSE User Guide
This is the login credential used by an EC-gfxProgram user to connect to
any ECLYPSE controller. This credential is managed in the EC-Net
AX
User
Service.
This is the login credential used by the EC-Net
AX
station’s RestService to
connect to any ECLYPSE controller. To program an ECLYPSE controller
with EC-gfxProgram through EC-Net
AX
, the RestService must be configured
on the EC-Net
AX
station with a login credential to all ECLYPSE controllers.
This credential is managed in the EC-Net
AX
User Service.
RADIUS
Server A
Credential
Database
This is EC-Net
AX
station UserService credential database that is also a
RADIUS Server credential database.
If EC-gfxProgram users are to connect to this controller through the
EC-Net
AX
station, this credential database must have the credentials for
EC-Net
AX
station’s RestService. This credential database must also have
the credentials for each user that will login to ECLYPSE controller A or B
(for example, administrators, direct connection EC-gfxProgram users,
ENVYSION users, etc.).
Note that other EC-Net
AX
stations can use FOX protocol to authenticate
users on those stations.
Credential
Databases
Cache A and
B
These are ECLYPSE controllers’ cached credential databases. If the
connection to the EC-Net
AX
station’s RADIUS Server is lost, users that have
previously authenticated themselves with EC-Net
AX
station’s RADIUS
Server credential database on a given controller will still be able to login to
those controllers as their credentials are locally cached.
Configuring the EC-Net
AX
Station’s RestService
To configure the REST service in EC-Net
AX
, refer to the EC-gfxProgram User Guide: Getting
Started on EC-Net
AX
for ECB & ECY Series Controllers. Any ECLYPSE controller being
connected to by the RestService must be able to authenticate the User name and password
configured in the RestService configuration.

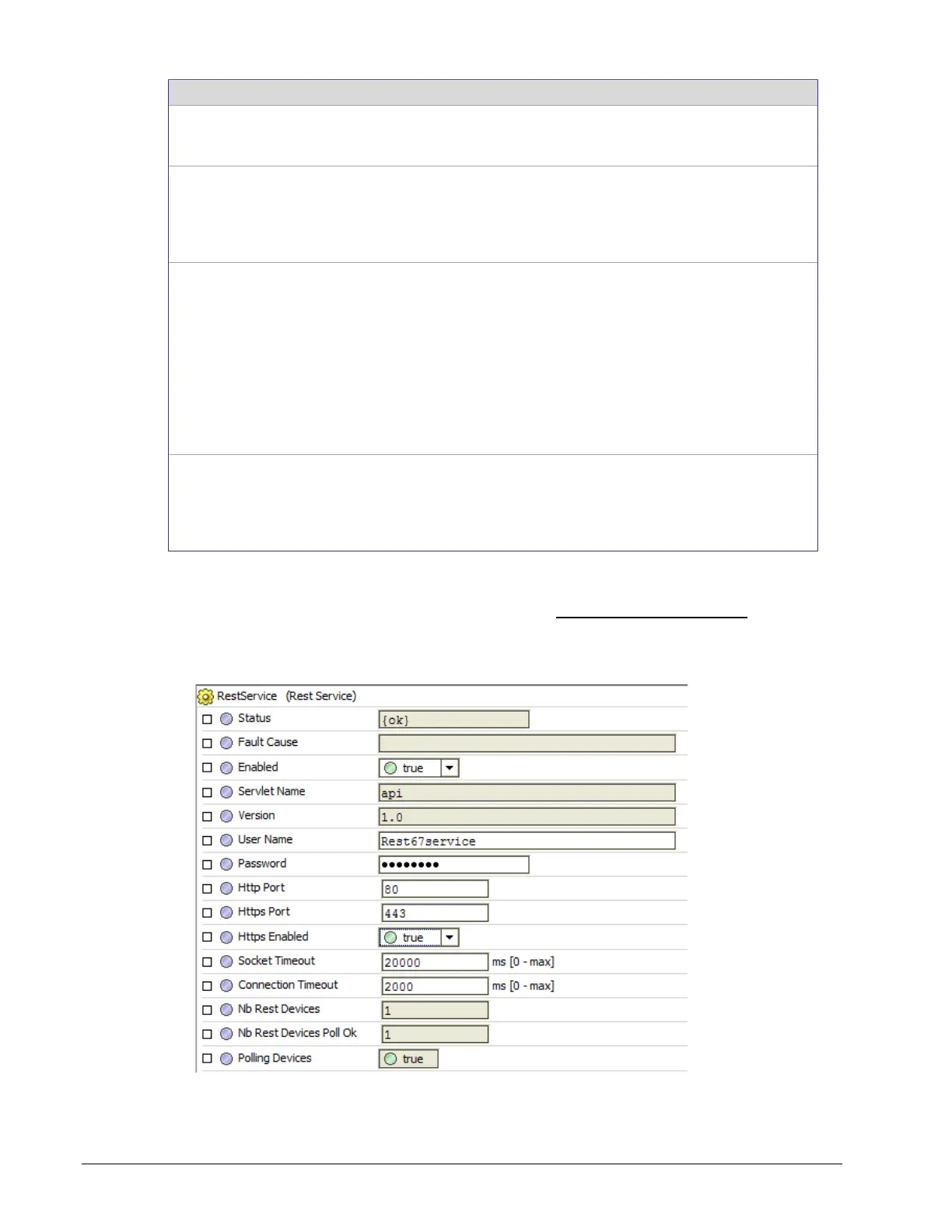

Figure 7-4: Typical RestService Configuration
