Connecting IP Devices to an IP Network
42 ECLYPSE User Guide
Antenna & receiver installed
on top or side panel
Antenna & receiver
NOT to be installed
inside the metal
enclosure
Antenna & receiver
installed directly on metal
panel should be avoided

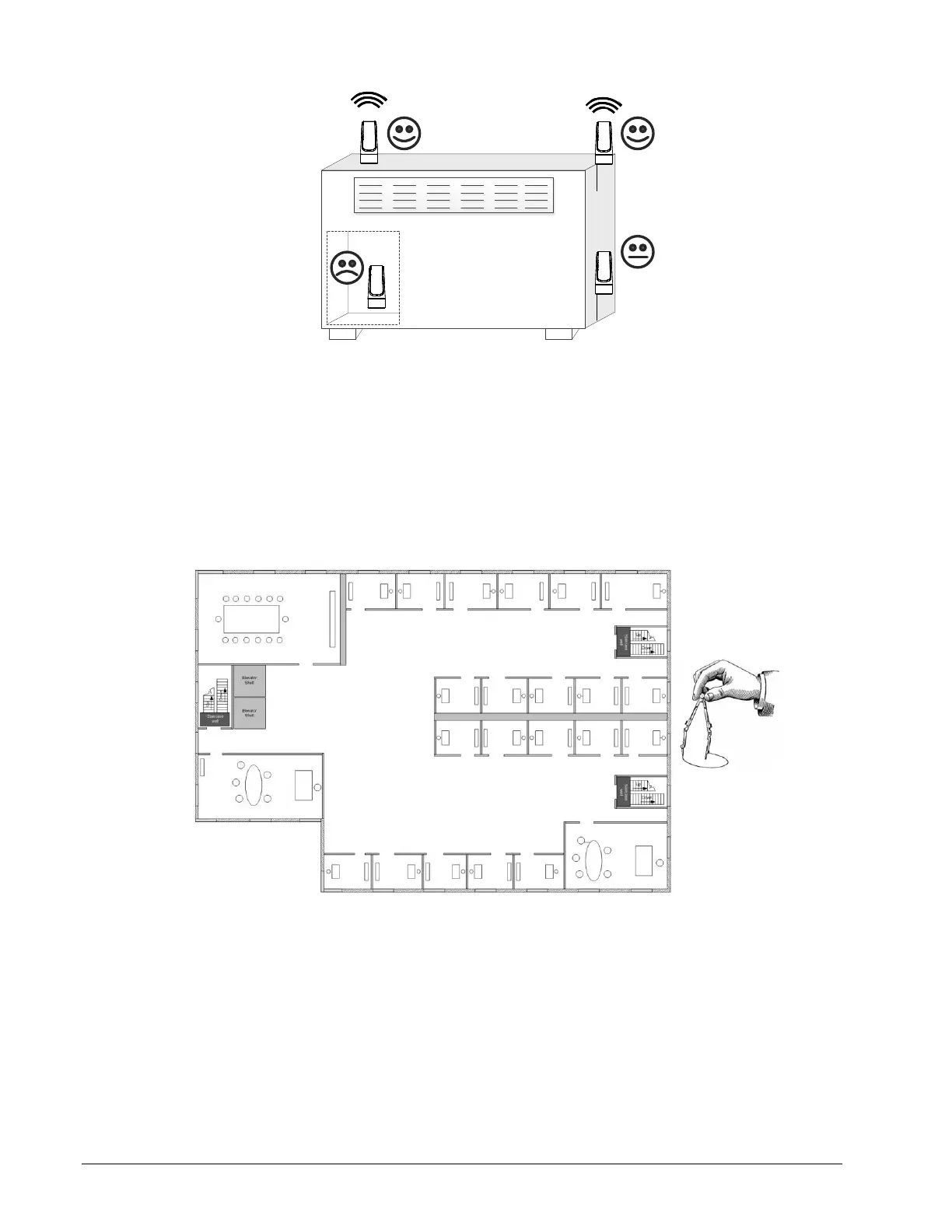

Figure 5-14: ECLYPSE Wi-Fi Adapter Position on Fan Coil Unit
Planning a Wireless Network
A wireless network can be installed in many different types of floor spaces, large or small:
office space, commercial space, residential space, etc. The following provides an example
on how to start planning a wireless network such as a large office space. This type of
planning can also be used with smaller areas. To plan a mesh network, see Mesh Network
on page 47.
1. Retrieve a copy of your floor plans and a compass.
Figure 5-15: Copy of floor plan and a compass
2. Mark relevant radio shadings into floor plan such as: fire protection walls, lavatories,
staircases, elevator shafts and supply areas.
