Subnetwork Installation Guidelines
144 ECLYPSE User Guide
Setting the Allure EC-Smart-Vue Sensor’s Subnet ID
Address
An Allure EC-Smart-Vue sensor’s Subnet ID corresponds to the ComSensor block instance
programmed in the controller with EC-gfxProgram. The Allure EC-Smart-Vue sensor’s
Subnet ID can be set in the procedure below.
ECLYPSE Connected VAV Controllers can be commissioned with an Allure EC-Smart-Vue
sensor. The default Subnet ID for an Allure EC-Smart-Vue sensor is 1. To commission an
ECLYPSE Connected VAV Controller, the Allure EC-Smart-Vue sensor’s Subnet ID must be
set to 1. If the Allure EC-Smart-Vue sensor’s Subnet ID has been set to another value (for
example, the display flashes error code 1 with the Bell icon when the Allure EC-Smart-Vue
sensor is connected to a controller for commissioning), change the Subnet ID to 1 as follows:

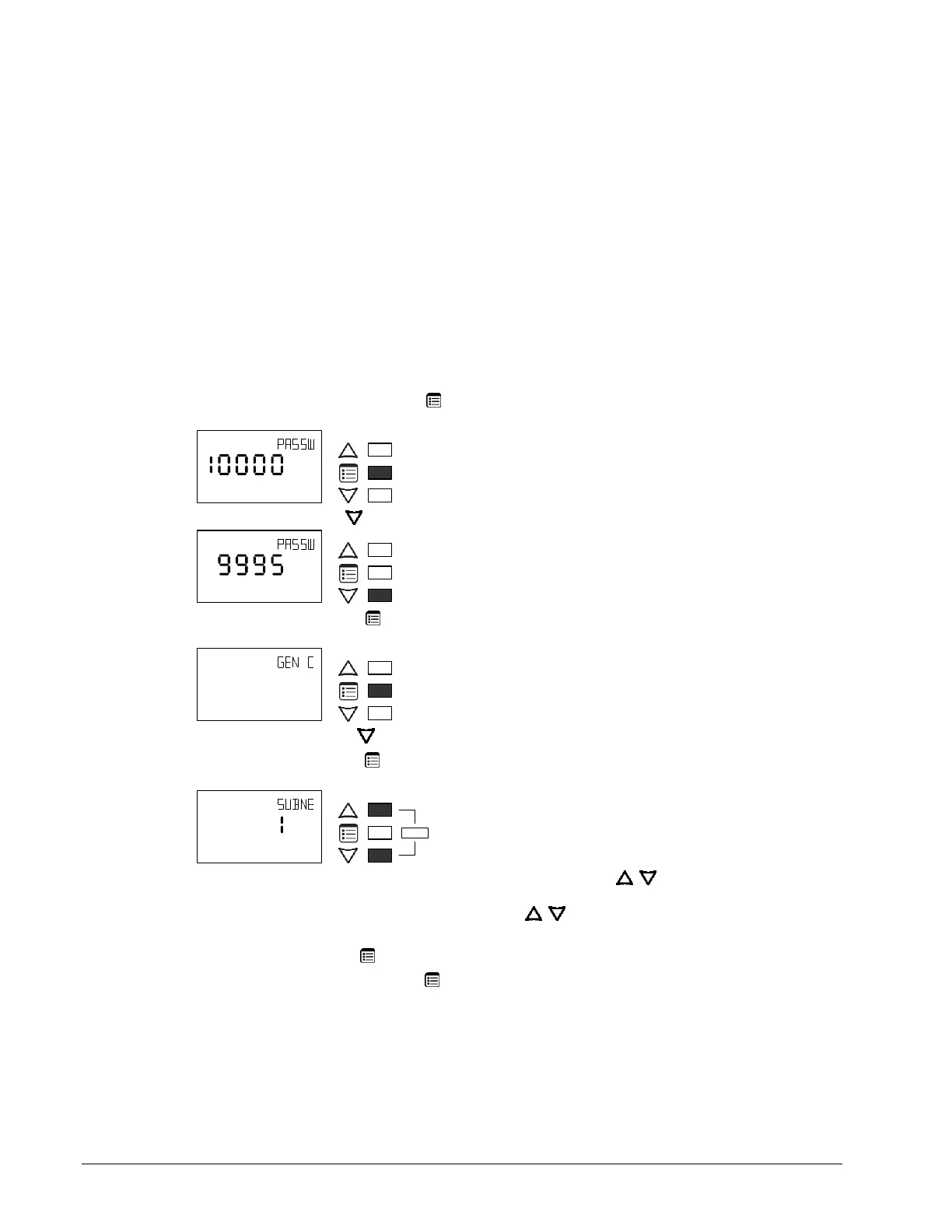

1. Connect an Allure EC-Smart-Vue sensor to the controller with a Cat 5e patch cable.
Wait for the Bell icon and the number 1 to flash on the display.
2. Press and hold the Menu button for 5 seconds to enter the password menu. 10000 is
shown on the display.
OR
Screen Timeout: 15 seconds
3. Use the down button to set the number to 9995 (this is the default password).
OR
Screen Timeout: 15 seconds
4. Press the Menu button to submit the password. Upon submitting the password, the
GEN CFG menu appears on the display.
OR
Screen Timeout: 30 seconds
5. Press the down button once to enter the GEN CFG submenu.
6. Press the Menu button several times until SUBNET ID appears on the display. The
current controller’s Subnet ID is shown.
OR
Screen Timeout: 30 seconds
7. For commissioning purposes, use the up and down buttons to set the controller’s
Subnet ID to 1. Tip: Hold down either the up or down button to fast-advance the display
value. Otherwise use the up and down buttons to set the controller’s Subnet ID to
the ComSensor block instance value programmed in the controller with EC-gfxProgram.
8. Press the Menu button once to apply the value.
9. Press and hold the Menu button for 5 seconds to exit the configuration menu.
The Allure EC-Smart-Vue sensor can now be used to go from one ECLYPSE Connected
VAV Controller to the next for commissioning purposes.
When the controller has been programmed, each connected Allure EC-Smart-Vue’s Sensor
must be assigned a unique Subnet ID.
