Subnetwork Installation Guidelines
142 ECLYPSE User Guide
Typical Room Devices
Cat 5e Cable Subnetwork Bus
Remove the
EOL jumper
ECx Subnet
Adapter
Typical ECLYPSE
Connected VAV
Controller
EOL set to ON at
the last sensor at
the end of the Bus
Back of Allure
EC-Smart-Comfort

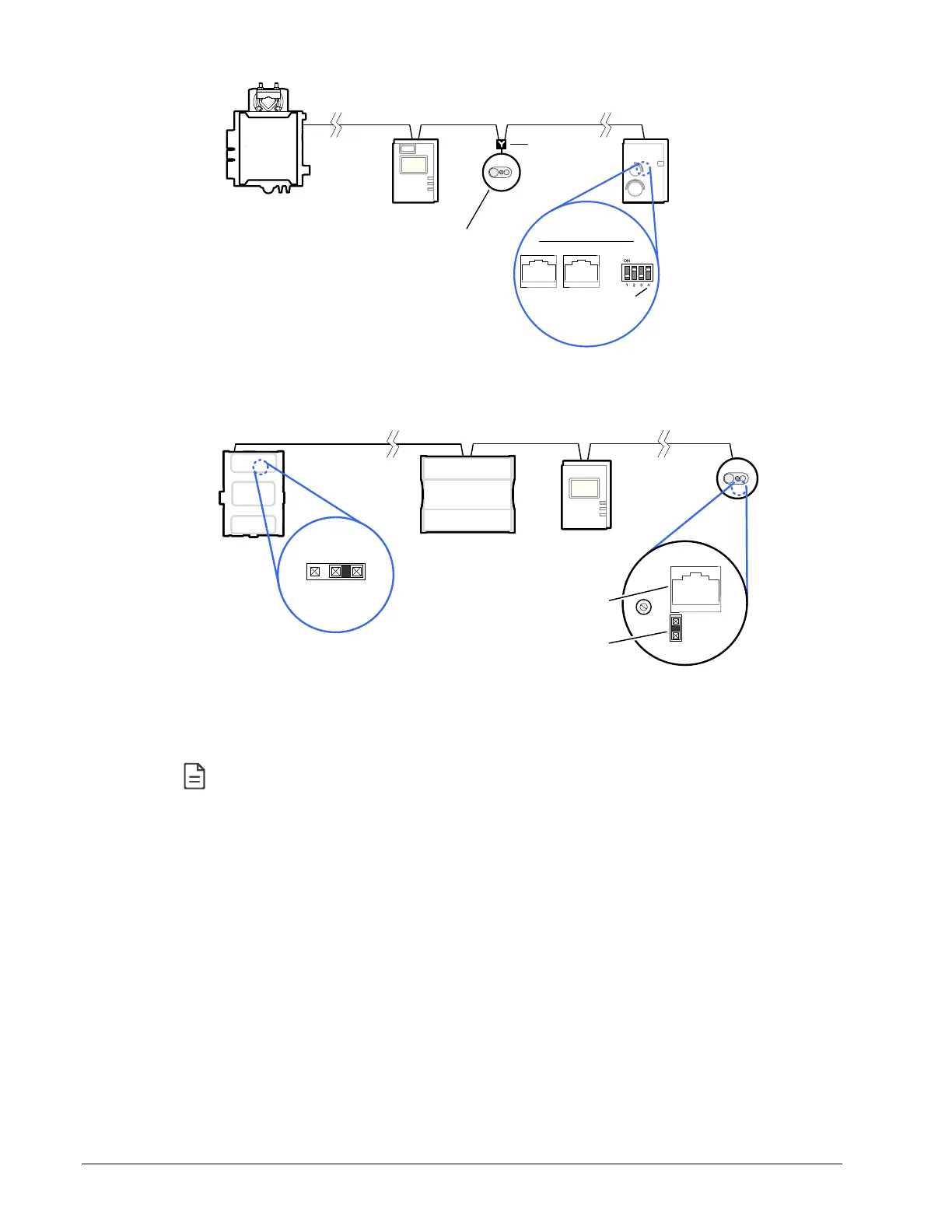

Figure 12-7: Setting the EOL Terminations on the Cat 5e Cable Subnetwork Data
Bus ECLYPSE Connected VAV Controllers
Light or Sunblind
Expansion Module
Typical Room Devices
Cat 5e Cable Subnetwork Bus
Back of
EC-Multi-Sensor
Place jumper to enable the EOL
at the last extension module at
the end of the Bus, otherwise
remove the jumper
RJ-45 Subnet Connector
EOL ON
Inside
Typical ECLYPSE
Connected System
Controller Series
Figure 12-8: Setting the EOL Terminations on the Cat 5e Cable Subnetwork Data
Bus for the ECY Series Controller Series Controllers
Depending on the type of expansion module, the subnetwork data bus EOL may
be set by configuring jumpers or DIP switches. Refer to the expansion module’s
hardware installation guide for how to identify and set a room devices’ built-in
EOL terminations.
