IPv4 Communication Fundamentals
ECLYPSE User Guide 25
For certain wireless topologies, a wireless router can be used to connect ECLYPSE
controller. In this scenario, a wireless operator interface (laptop or tablet) can be used for
commissioning as shown in the figure below. If the laptop has Soft EC-BOS
AX
installed, it
can be used to program ECB series controllers connected to the RS-485 port of the
Connected System Controller.
1
UPLINK
2 3 4
1
UPLINK
2 3 4
WiFi
Router for
HVAC IP
Controllers
Company
Computer
Network
Gateway Router
To
Device
To
Device
To
Device
To IP
Controller
To IP
Controller
To IP
Controller
To IP
Controller
Network
LAN
ISP Modem (Fiber, Cable, DSL)
To ISP Network
Wireless
Tablet HMI
Wireless
Tablet HMI

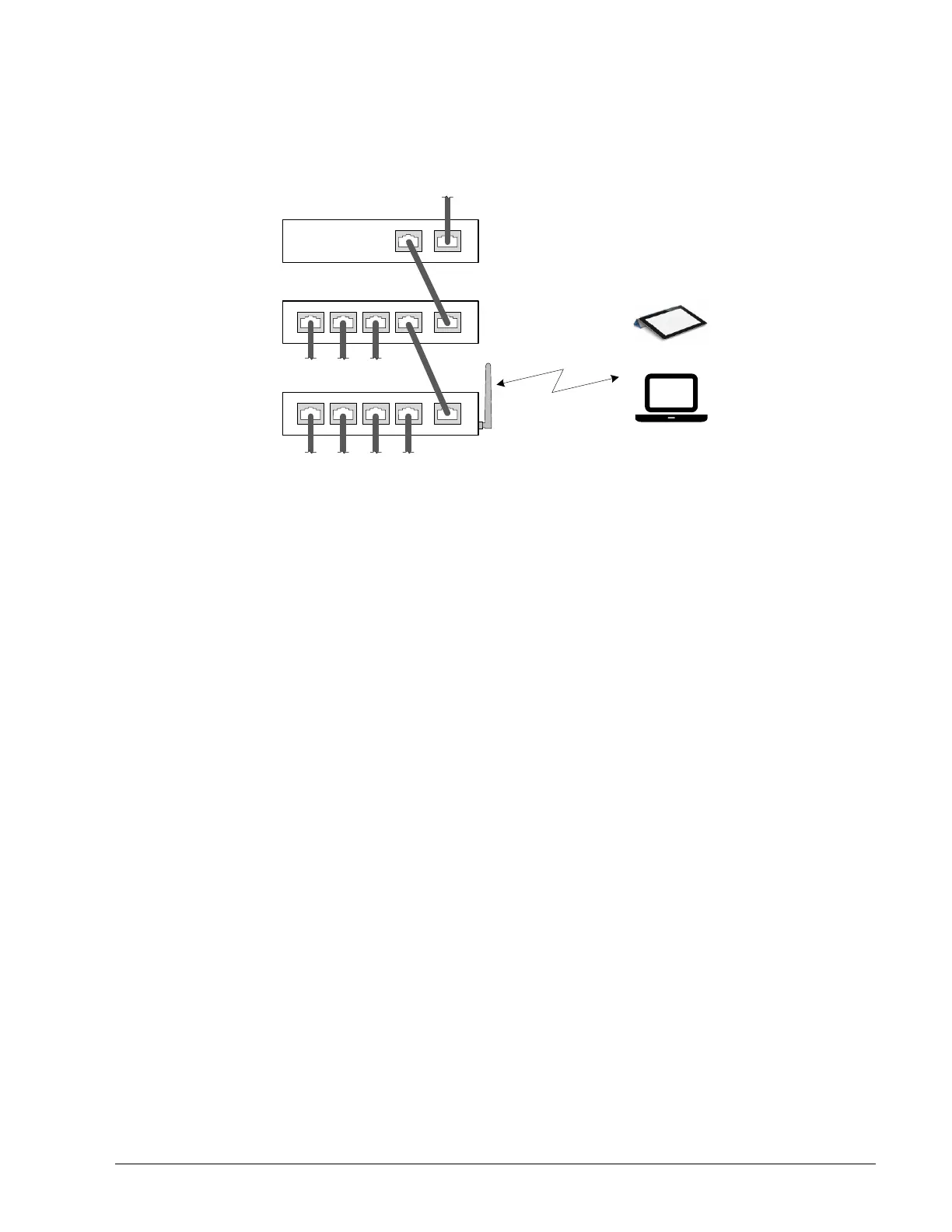

Figure 3-4: Network Segment for HVAC IP Controllers with a Wireless Access
Point
If a wireless router is unavailable or is out-of-range, an ECLYPSE Wi-Fi adapter can be
connected to an ECLYPSE controller’s USB port to add wireless connectivity. See Wireless
Network Connection on page 37.
