computer in LAN.
Default RX Limit
Define the default capacity of the downstream for each
computer in LAN.
Type
Display the type selected for such bandwidth limit profile
Address Object
Display the address object selected for such bandwidth limit
profile.
Start IP Address
Display the start IP address for such bandwidth limit
profile.
End IP Address
Display the end IP address for such bandwidth limit
profile..
Maximum TX Limit
Display the maximum upstream limit for such bandwidth
limit profile.
Maximum RX Limit
Display the maximum downstream limit for such bandwidth
limit profile.

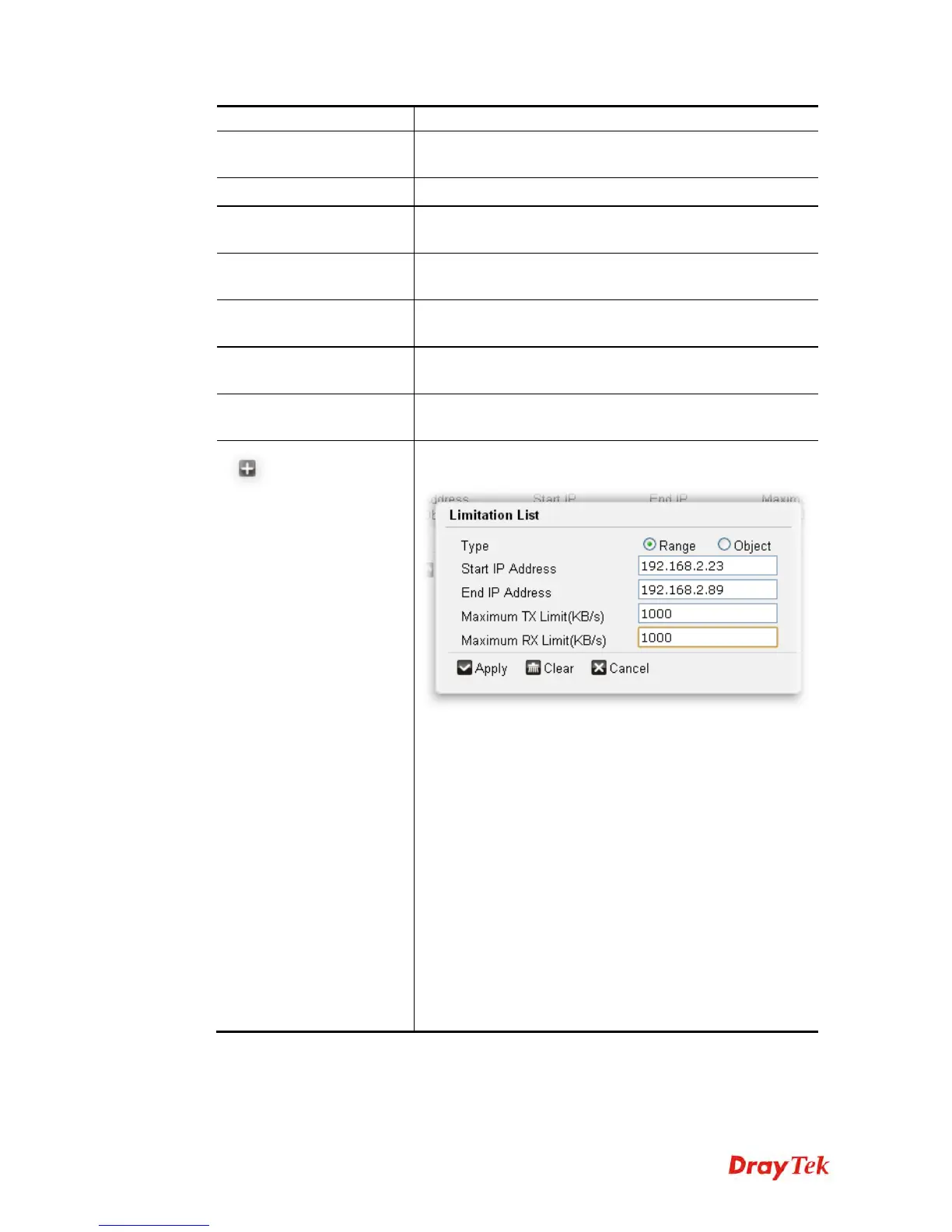

This button allows you to add new rule for bandwidth limit.
A pop up dialog will appear if it is pressed.
Type – Choose Range (you have to specify start IP and
end IP) or Object (you have to choose an IP object) as the
Type to determine next information to be specified.
Start IP Address –It is available when Range selected as
the Type. Specify the starting point (IP address) which is
suitable for such session limit.
End IP Address –It is available when Range selected as
the Type. Specify the ending point (IP address) which is
suitable for such bandwidth limit.
Address Object – It is available when Object is selected
as the Type.
Maximum TX Limit –Define the maximum capacity of
the upstream for each computer in LAN.
Maximum RX Limit - Define the maximum capacity of
the downstream for each computer in LAN.
Click Apply to save the settings.
