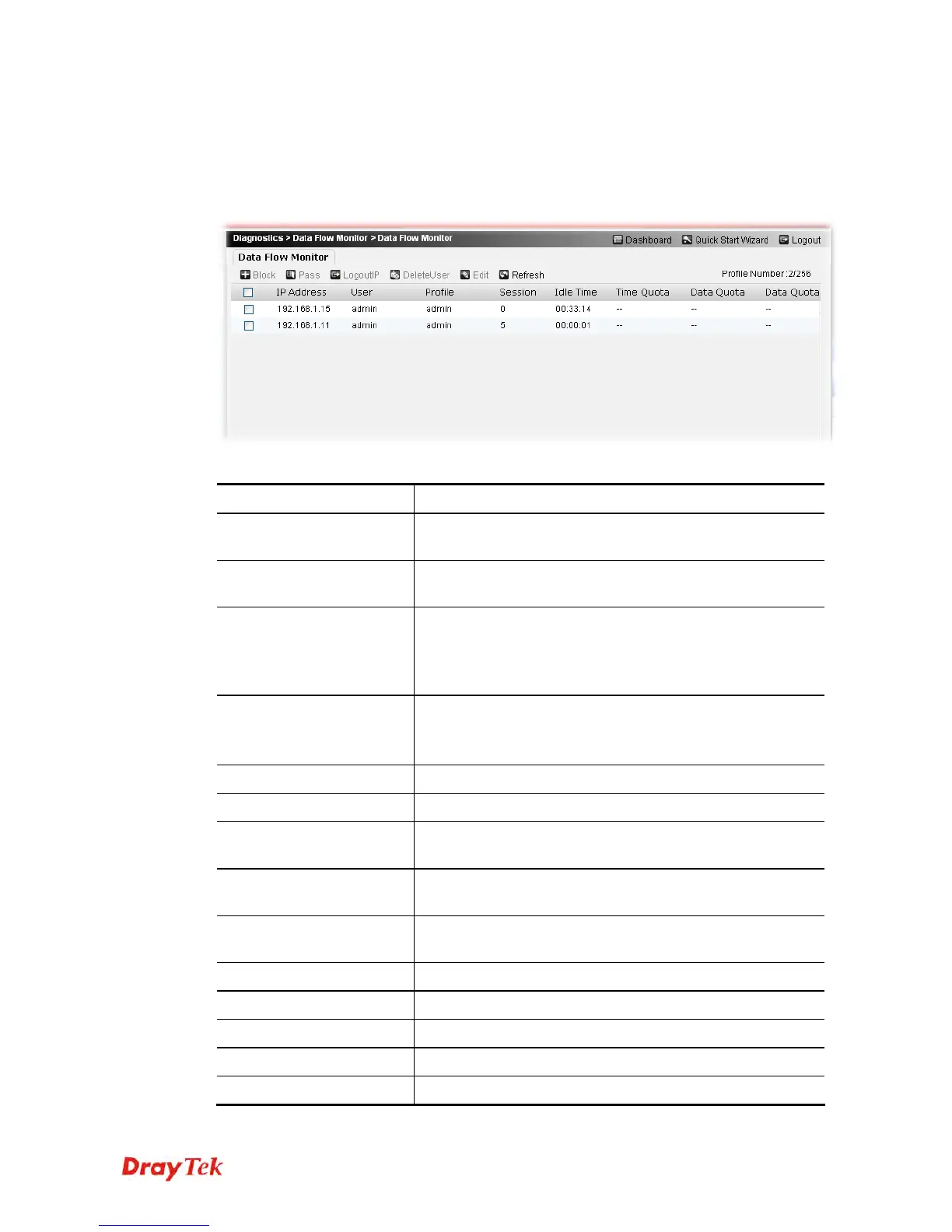

This page displays the running procedure for the IP address monitored and refreshes the data
in an interval of several seconds. The IP address listed here is configured in Bandwidth
Management. You have to enable IP bandwidth limit and IP session limit before invoke Data
Flow Monitor. If not, a notification dialog box will appear to remind you enabling it.
Each item will be explained as follows:
Item Description
Block
Prevent specified PC accessing into Internet within 5
minutes.
Pass
The device with the IP address is allowed to access into
Internet.
Logout
Force the selected login user leaving the web user interface
of Vigor router.
Simply check the box of the one to be exited, then click this
button to force it logging out.
Edit
Edit the selected data flow monitor profile.
To edit the profile, simply check the profile box you want to
edit and then click this button.
Refresh
Click it to refresh the web page.
IP Address
Display the IP address of the monitored device.
User
Display the identification of the one (e.g., admin, user...)
who wants to access into Internet.
Profile
Display the name of the profile that such IP address used to
access into Vigor router.
Session
Display the session number that you specified in Limit
Session web page.
Idle Time
Display the idle time of the PC.
Time Quota
Display the number (minutes) of the time quota remained.
Data Quota
Display the number of the data quota remained.
Data Quota Unit
Display the unit (MB or GB) of data quota.
TX/RX Rate (Bbps)
Display the transmitting/receiving speed used by such user.
