Before Using This Machine
21

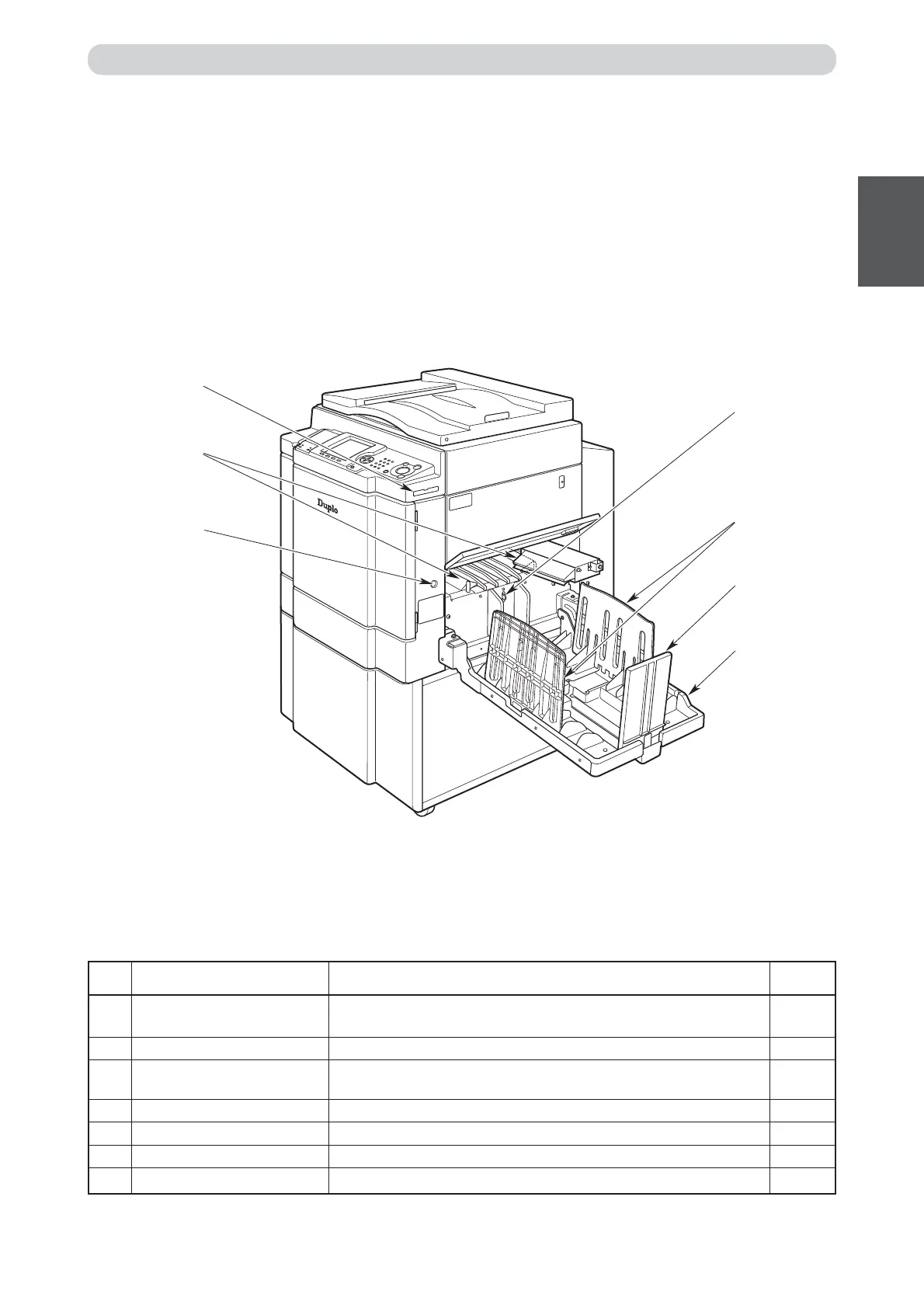

No. Name Function
A Key card counter This slot is for inserting the key card.
B Jump plate Adjust this plate for the width of the paper.
C JOG switch Press and hold to rotate the drum for a set time. Use to remove
paper jams, etc.
D Print tray Holds the printed paper.
E Paper stopper Slide to match the size of printed paper.
F Paper stacker guides Slide to match the size of printed paper.
G Print output adjuster lever Adjust this lever according to the thickness of the print output paper.
C
A
B
G
E
D
F
Part Names and Their Functions
Reference
page
27
44
142,143
43
43
43
44
(Option)
