8.6 Completing the tabletop

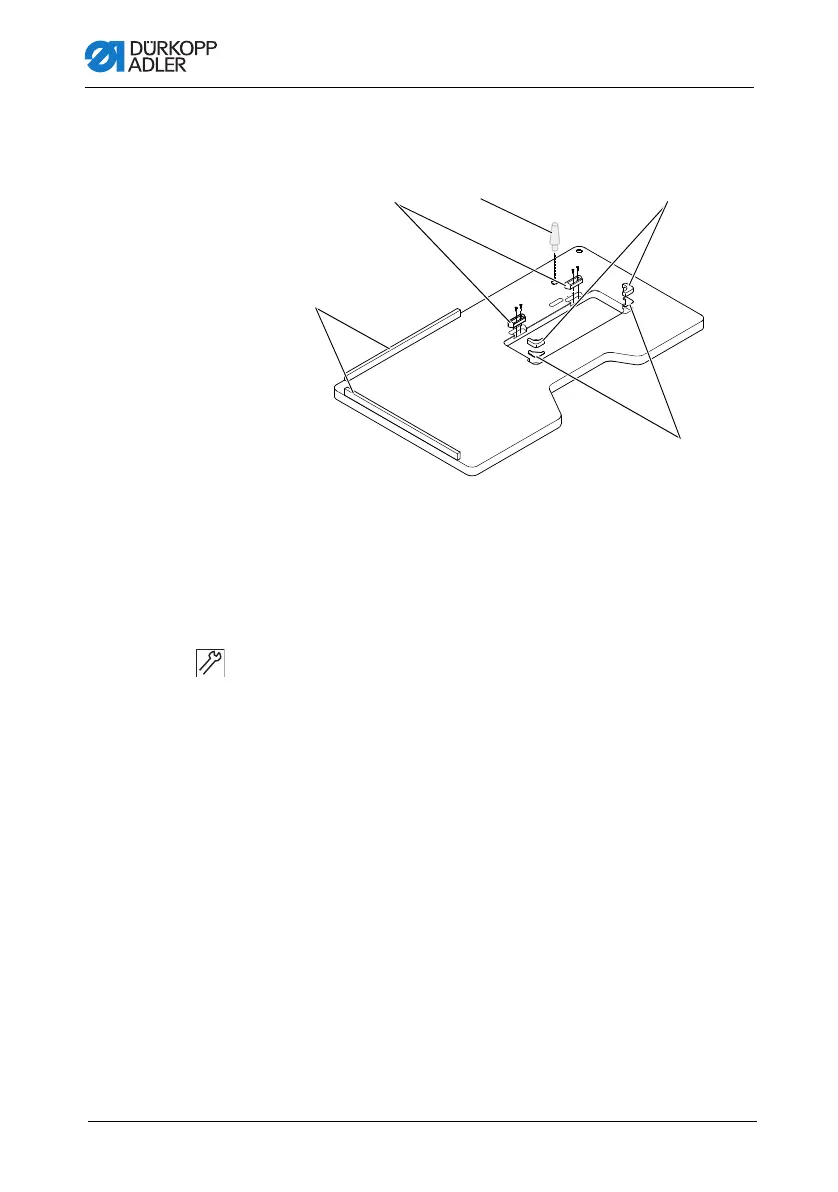

Fig. 81: Completing the table top
To complete the tabletop:
1. Insert the oblique fittings (4).
2
. Insert the rubber corners (5) into the tabletop.
3. Using 4.5 x 15 (4x) screws, tighten the hinge mountings (2).
4. Using 4.5 x 55 (8x) screws, screw the edge strips (3) to the
tabletop.
5. Insert the machine head support (1).
(1) - Upper part support
(2) - Hinge mountings
(3) - Edge strips
(4) - Oblique fittings
(5) - Rubber corners
