On principle, the operation of the CNC program is also possible without a PLC program. This
is obtained by the setting of the machine constant MK_SPS_DUMMY=1.
During the tests without the mechanical system, the machine constants have to be set as
follows.
Tab elle 32:
Table 32: Setup machine constants for testing
MK Number values Values
Test set-up MK_TEST_OHNEMECHANIK 1 1
MK_SPS_DUMMY 1 1
8.4 Checking the drives
The parameterized and connected drives can be checked in the diagnosis on the basis of
their position lag after the adapting of the machine constants.
In case of correctly parameterized drives, the
position lag toggles around the zero point.

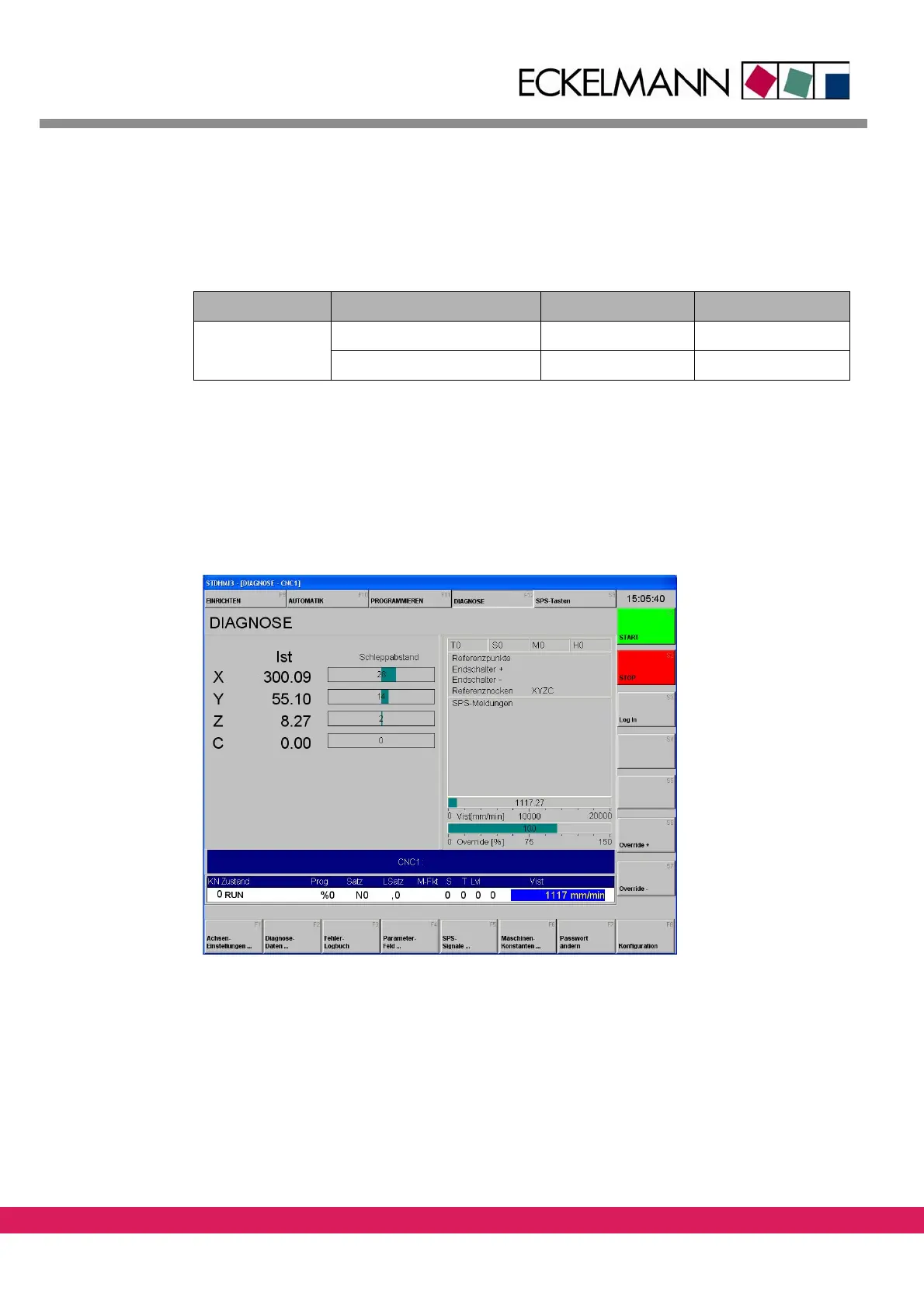

Abbildung 36:
Figure 36: Checking the drives in stdHMI
