Abbildung 49:

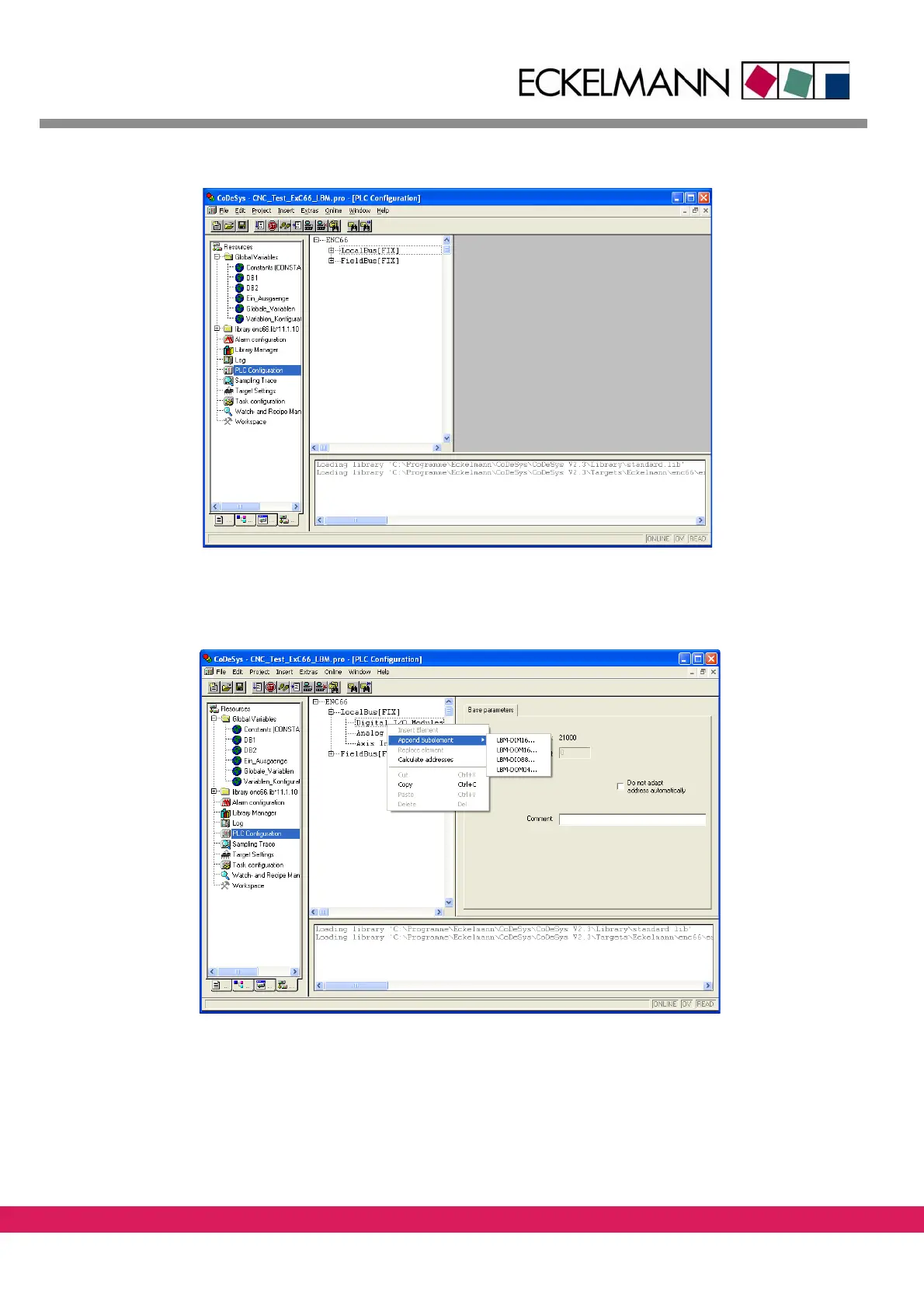

Figure 49: Opening the PLC configuration
You can add a LBM module with clicking the right mouse button on the corresponding cat-
egory.
Abbildung 50:
Figure 50: Adding a LBM module
Insert a LBM DOM16 for the example. In E-Tools PLC/2 the result looks like this:
