ECKELMANN E-Control CNC - Individual Manual Checking of Drives in Jogging Mode; Programming as Per DIN 66025

60 / 97
8.5 Individual manual checking of drives in jogging mode
The drives are to be checked upon the adapting of the machine constants.
This is best made by means of a mechanical jogging mode of the single drives. It is to be
check
ed whether the configured drives X, Y,.. behave in compliance with the presetting
Tabelle 33:
Table 33: Individual manual checking of drives in jogging mode
Steps in stdHMI Description
Setup F9
(or Diagnostics F12)
Manual travel F2
(Axis setting F1)
Modal travel F1 A single drive is selected, the selected drive can be recog-
nized by the green highlighted command value
Travel + S3 Selected drive turns in jogging mo
de in positive direction
Travel - S4 Selected drive turns in jogging mo
de in negative direction
Axis S5 Axis change-over is recognized by the change over of the
gr
een command value display
Override +/- S6, S7 The drive speed can be change
d by means of Override
Abbildung 37:

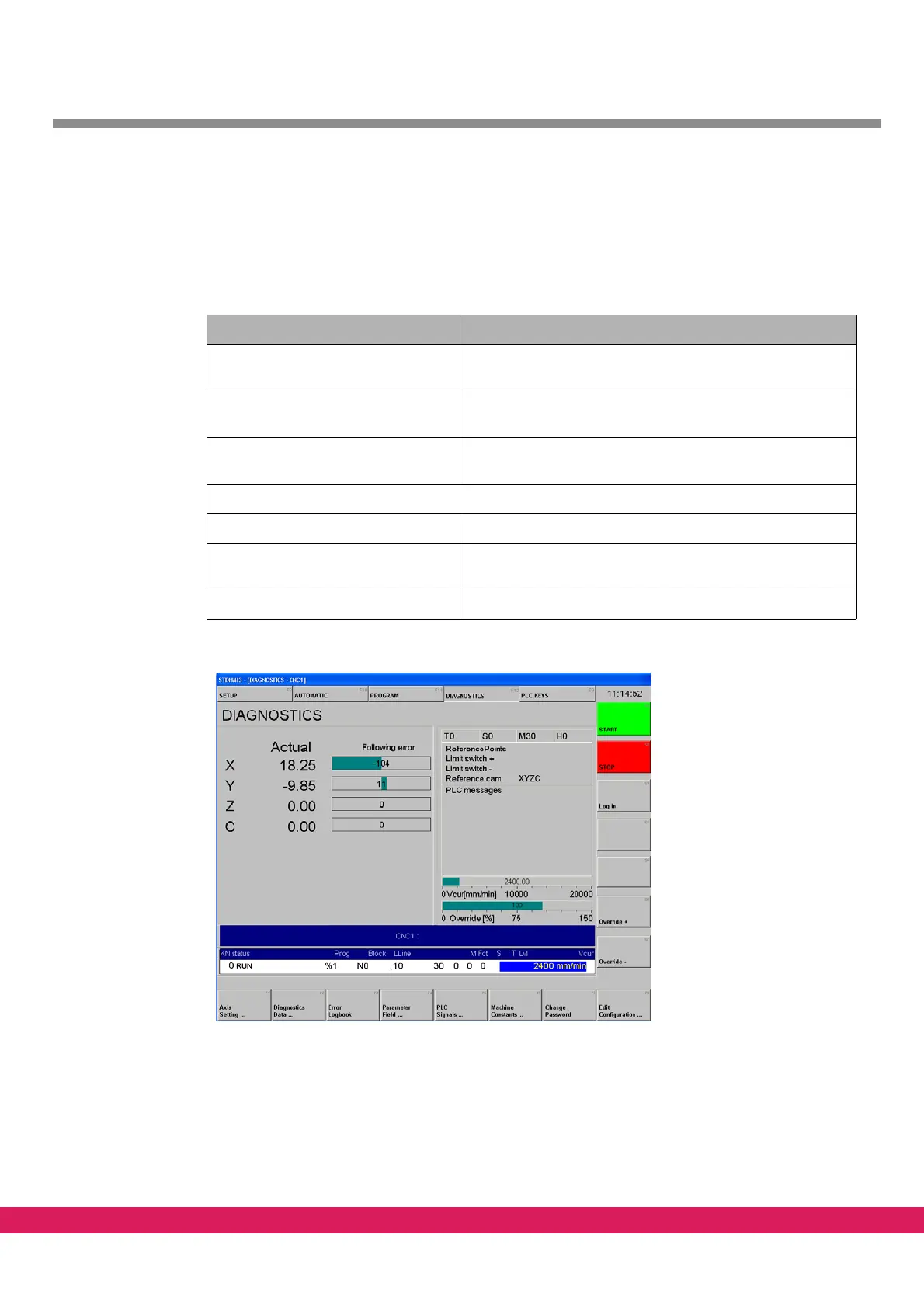

Figure 37: Manual travel in StdHMI
8.6 Programming as per DIN 66025
The programming as per DIN66025 will be explained with a simple example. The editor for
programming is called with the function key F11.
